How to create a second Y axes scale?

Created: Mar 14, 2022 08:00 PM  |  Last Modified: Jun 11, 2023 4:22 AM (4474 views)

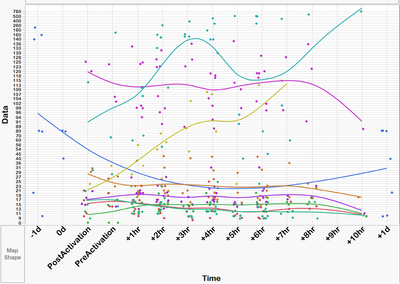

I have 9 parameter and 4 of them have a low values (0 to 40) while the others 5 have values from 21 to 780. I would like to graph all together as seem below, but built a second Y axes for the first 4 parameters.

My data set (table) has the following columns:

     ID

     Time

     Parameter

     Data






0 Kudos
10 REPLIES 10
txnelson
Super User txnelson
Super User

Re: How to create a second Y axes scale?

Mar 14, 2022 08:56 PM (2645 views)  |  Posted in reply to message from sanchezpeinado 03-14-2022

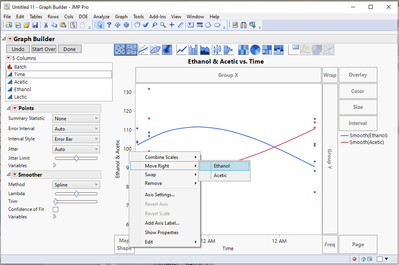

Right click on the Y axis and select "Move Right" and then select which parameter to move.  Repeat for each parameter to be moved to a Right Side axis




Jim
