How can I do a PDF files with Jump

yannntima

Community Trekker

Joined:

Aug 2, 2016

Hi all,

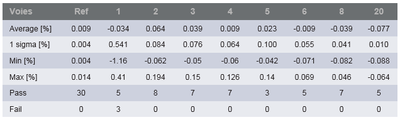

In fact I have a small issue because I want to do a PDF file with JMP that can be a summarized of some graphs (save in datas table JMP) and a table from some greatness of Analysis (average, sigma, min and max).

ex :



So I want do for each graph his tableau and put that on a PDF file.

I put in attachement my JMP file.

NB : the present table does not correspond to the graph above.

Thanks for the help.

Yann N.

4 REPLIES
guillaumebugnon

Community Trekker

Joined:

Apr 7, 2015

Hi Yann,

You can put both analysis into a journal and print the journal to pdf.

Regards,

Guillaume

Dan_Obermiller

Joined:

Apr 3, 2013

Or, instead of printing the journal as PDF, you could just do a Save As of the journal and choose PDF.

Dan Obermiller
stephen_pearson

Community Trekker

Joined:

Oct 6, 2014

Hi Yann,

I use the script below so I don't have to specify the details each time I save the pdf.

  1. Create a journal
  2. Send my graphs to the journal
  3. Add a save pdf button which has my preferences specified (you will need to experiment with the margins and scale factor)
  4. Press the button to generate the pdf

Note: if the folder for the save location doesn't exist or JMP can't write to it the script will fail but not warn you.

Use: Current Journal() << Append( H List Box( Page Break Box(), ) to start a new page.

Regards,

Stephen

//set file properties

//(if location doesn't exist or JMP can't write to it the script will fail silently)

SaveLocation = "C:\Reports\";

Author = "My Name";

Title = "My Report";

//Create a journal to recieve the output

ResultWindow = New Window( Title, <<journal );

//add output

Current Journal() << Append(

  Graph Builder(

  Size( 534, 500 ),

  Show Control Panel( 0 ),

  Variables(

  X( :Prototype ),

  Y( :Name( "Sucre 1/3 [%]" ) ),

  Y( :Name( "Sucre 2/3 [%]" ), Position( 1 ) ),

  Wrap( :Voies )

  )

  )

);

//add a save button to the Journal Window

Current Journal() << Append(

  H List Box(

  Button Box( "Save As PDF",

  thisWin = Current Window();

  thisWin << Set page setup(

  margins( 0.4, 0.4, 0.7, 0.7 ),

  scale( 0.7 ),

  portrait( 1 ),

  paper size( "A4" )

  );

  thisWin << Set Print Footers(

  Author/*left*/,

  "&d;"/*center*/,

  "Page &pn; of &pc;"/*right*/

  );

  path = SaveLocation || title || Char(Long Date( Today() )) || ".pdf";

  thisWin << Save PDF( path );

  ),

  )

);

yannntima

Community Trekker

Joined:

Aug 2, 2016

Thank you for the support, I think I have what I looking for. I wil try each solution.

Yann N
