Can animation of this difficulty be achieved with JSL?

[#1]

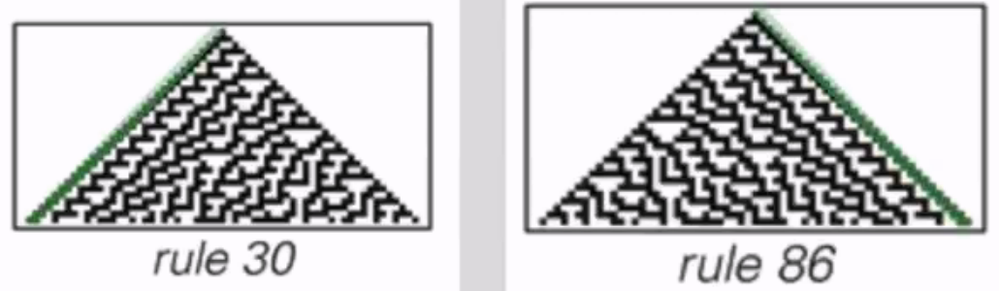

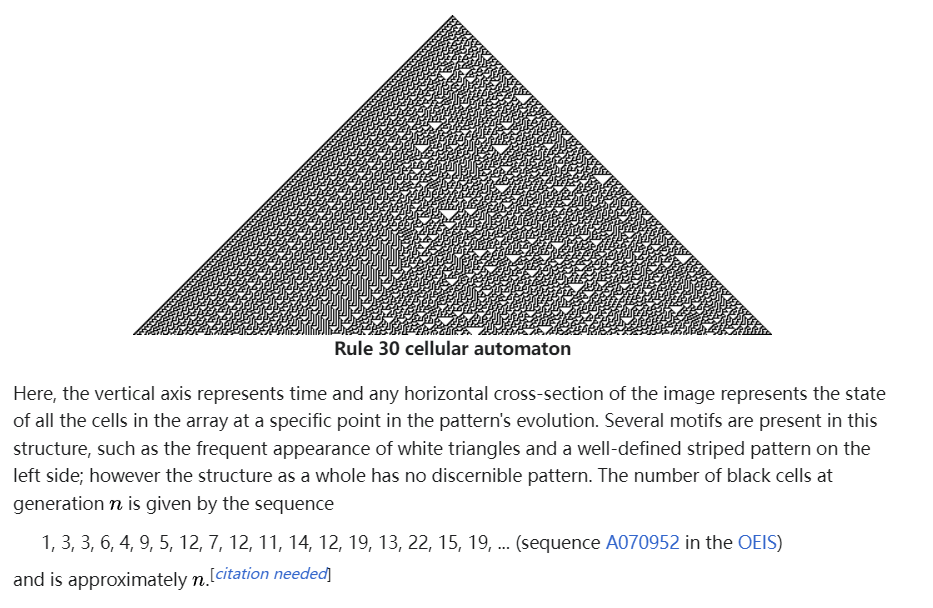

I saw this Rule30 in the video.

https://mathworld.wolfram.com/Rule30.html

It must be complicated.

Thanks Experts!

[#2]

[#3]

I'm not sure what the animation is supposed to look like but you can do something like this for example using new image, set pixels and ad frame

[#4]

Or just plot it as Heatmap in GraphBuilder and record it.

[#5]

another approach - for infinite loops.

with the data table created on the fly ...

dt = New Table( "cellular automaton",
	New Column( "pos", Nominal ),
	New Column( "step", Nominal ),
	New Column( "status", Nominal )
);

dt << add rows( 1 );
:pos[1] = 0;
:step[1] = 1;
:status[1] = 1;
t0 = hptime();
gb = dt << Graph Builder(
	Show Control Panel( 0 ),
	Show Title( 0 ),
	Show X Axis( 0 ),
	Show X Axis Title( 0 ),
	Variables( X( :pos ), Y( :step ), Color( :status ) ),
	Elements( Heatmap( X, Y, Legend( 1 ) ) ),
	SendToReport(
		Dispatch( {}, "pos", ScaleBox, {Label Row( Tick Mark Style( "Long Divider" ) )} ),
		Dispatch( {}, "step", ScaleBox,
			{Reversed Scale, Label Row( Tick Mark Style( "Long Divider" ) )}
		),
		Dispatch( {}, "400", ScaleBox,
			{Legend Model(
				1,
				Properties( 1, {Fill Color( 0 )}, Item ID( "1", 1 ) ),
				Properties( 2, {Fill Color( 2 )}, Item ID( "0", 1 ) )
			)}
		)
	)
);

wait(0);

cells = [1];
j=4;
For( i = 2, i > 0, i++,
//i=2
	cells = Insert( Insert( cells, 0, 1 ), 0 );
	cells0 = Insert( Insert( cells, 0, 1 ), 0 );
	cells = Transform Each( {dummy, idx}, cells,
//idx=3;
		myPattern = 100 * cells0[idx] + 10 * cells0[idx + 1] + cells0[idx + 2];
		Match( mypattern,
			100, 1,
			11, 1,
			10, 1,
			1, 1,
			0 // all other variants give 0
		);
	);
	Ncells = N Items( cells );
	nr = N Rows( dt );
	dt << add rows( 2 * i - 1 );
	rows = nr + (1 :: Ncells);
	dt[rows, "step"] = J( Ncells, 1, i );
	dt[rows, "pos"] = ((1 :: Ncells) - i)`;
	dt[rows, "status"] = cells;
	if(hptime()-t0>10000,wait(0);t0=hptime())
);

[#6]

I have to admit: It took me a while to get the Zoom right.

The first idea: restrict the view to rows with Data=1: While the entries are calculated, more and more entries will show up, leading to a zoom-out.

But this approach did not work as expected - see below.

Please notice the Data Filter - it starts with the correct setting: Data=1,

but when the column is cleared and the calculation starts, there is no such data anymore - and the Data Filter just forgets it's settings (!!!).

This bug was first described in Outlier (👽) screening with Jmp Dashboards - how? .

- some workarounds can be found here
- a wish to fix the bug: Local Data Filter: option: restrict or do not restrict to current data

- a more elegant way to tackle such issues: 🙏 Column Property: Inclusive Values

 

[#7]

It's still too hard for me.

Thanks Experts!

[#8]

What are you attempting to do? Have a demonstration that JMP is capable of some sort of animation? Have a calculation for https://en.wikipedia.org/wiki/Rule_30 ? Something totally different and this is just an example?

Edit:

Whatever the case is I post my code here (lots of optimization could still be done)

View more...

Names Default To Here(1);

xor = Function({first, second}, {Default Local},
	return((first | second) & !(first & second));
);

check_rule30 = function({items}, {Default Local},
	// https://en.wikipedia.org/wiki/Rule_30
	res = xor(items[1], items[2] | items[3]);

	return(res);
);

initial_state = function({width}, {Default Local},
	m = J(Floor(width / 2) + 1, width + !Mod(width, 2), 0);
	m[1, Floor(width / 2) + 1] = 1;

	return(m);
);


cellular_automaton_rule30 = function({width}, {Default Local},
	m = initial_state(width);

	For(r = 2, r <= N Rows(m), r++,
		For(c = 1, c <= N Cols(m[r, 0]), c++,
			If(c == 1, // fill [0] for edges
				three = [0] || m[r - 1, c::c + 1];
			, c == N Cols(m[r, 0]),
				three = m[r - 1, c - 1::c] || [0];
			,
				three = m[r - 1, c - 1::c + 1];
			);

			res = check_rule30(three);

			m[r, c] = res;
		);
	);

	return(m);
);

magnify_matrix = function({m, magnification = 1}, {Default Local},
	If(magnification == 1,
		return(m);
	);

	magnified = J(N Rows(m) * magnification, N Cols(m) * magnification);

	magnified = Transform Each({z, {row, col}}, magnified,
		// and filling each value with one from the small matrix
		m[Floor((row - 1) / magnification) + 1, Floor((col - 1) / magnification) + 1]
	);

	return(magnified);
);


animate_matrix = Function({m_magnified}, {Default Local},
	// Substitute Into(m_magnified, 1, -16777215); // to make white white
	start = Tick Seconds();

	initial = J(N Row(m_magnified), N Col(m_magnified), 0);
	initial[1::magnification, 0] = Substitute(m_magnified[1::magnification, 0], 1, -16777215);

	img = New Image(initial);
	For(i = 1, i < N Rows(m), i++,
		indices = (i * magnification + 1)::((i + 1) * magnification);
		cur_row = m_magnified[indices, 0];

		If(i == N Rows(m) - 1, // could be moved outside of the loop
			Substitute Into(cur_row, 1, -16777215);
		,
			Substitute Into(cur_row, 1, -65280);
		);
		Substitute Into(cur_row, 1, -65280);
		Substitute Into(initial, -65280, -16777215);

		initial[indices, 0] = cur_row;
		img << Add Frame(10);
		img << Set Pixels(initial);
	);
	wait(0);
	end = Tick Seconds();
	Write(Eval Insert("animate_matrix: ^Round(end - start, 3)^s.\!N"));

	nw = New Window("Multi-Frame Image", img);
	durs = img << Get Frame Durations();
	For(i = 0, i < img << Get N Frames, i++, // might be off by one
		img << Set Current Frame(i);
		nw << reshow();
		dur = durs[i + 1] / 800.0; // use to modify the speed of animation
		Wait(dur);
	);

	return(img);
);


view_matrix = function({m}, {Default Local},
	nw = New Window("Matrix",
		pic = New Heat Image(m,
			gradient({Color Theme("White to Black"), Scale Values([0 1]), Reverse Gradient(1)})
		)
	);
);

width = 250;
magnification = 5;

start = Tick Seconds();
m = cellular_automaton_rule30(width);
wait(0);
end = Tick Seconds();
Write(Eval Insert("cellular_automaton_rule30: ^Round(end - start, 3)^s.\!N"));

start = Tick Seconds();
m_magnified = magnify_matrix(m, magnification);
wait(0);
end = Tick Seconds();
Write(Eval Insert("magnify_matrix: ^Round(end - start, 3)^s.\!N"));

animation = animate_matrix(m_magnified);
wait(0);

Write("Done\!N");
