Nov 10, 2017 6:53 AM
(4150 views)

The option to "exclude" datapoints does not seem to work as expected when creating plots with the Graph builder. According to the manual:

"Note: Excluded data are not automatically hidden in plots even though they are excluded from calculations in text reports and graphs.

Using the Hide/Unhide command, you can suppress (hide) the appearance of highlighted points in scatterplots."

So I would expect "excluded" points (rows) to appear on plots but not be considered during analysis. Whereas "hidden" datapoints should not be on the plots.

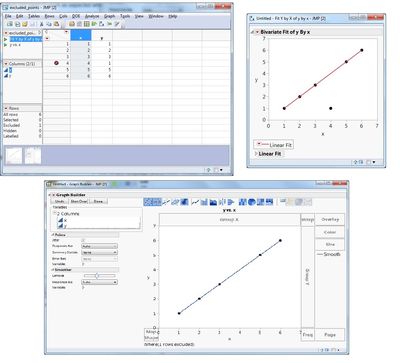

The attached example shows a number of data points where the fourth is "excluded".

When plotting the data using the fit X by Y platform the result is as epxected (the fourth data point is on the plot but not taken into account for the fit). However, when using the "Graph builder" the point does not appear on the plot which seems unexpected. Why are the plots different?

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

I found this in the documentation

Help==>Books==>Essential Graphing

in the Graph Builder chapter

**The graph area and zones are the main body of Graph Builder. Your graph appears in the middle, and you drag variables into different zones. See “Graph Zones” on page93. **

**Note: Any excluded rows are hidden in graphs.**

Jim

4 REPLIES 4

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

I found this in the documentation

Help==>Books==>Essential Graphing

in the Graph Builder chapter

**The graph area and zones are the main body of Graph Builder. Your graph appears in the middle, and you drag variables into different zones. See “Graph Zones” on page93. **

**Note: Any excluded rows are hidden in graphs.**

Jim

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: excluded datapoints in graph builder

Thank you. That means it is meant to be this way. (I still think it's not consitent and therefore confusing.)

In that case it might be helpful to update the help section in

which currently includes a note:

Note: Excluded data are not automatically hidden in plots even though they are excluded from calculations in text reports and graphs.

It would be usedful to make clear that "plot" refers only to some plots (presumably to those generated from analysis platforms). So the data points will NOT show on plots created from the "Graph" menu (like graph builder, overlay plot...)

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: excluded datapoints in graph builder

Hi @matthias_bruchh,

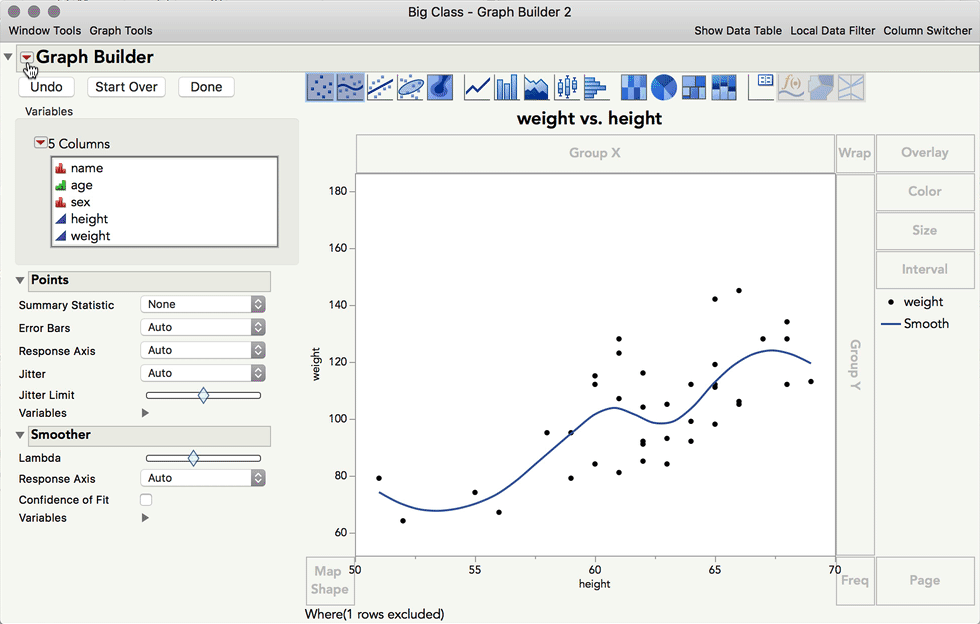

It's been some time since you posted, but your post was mentioned in another discussion just recently. In case it's still helpful, I wanted to let you know that there is a hidden option to show excluded rows in Graph Builder: while holding shift, click the Red Triangle > Show Excluded Rows. The excluded rows will now show on your plot as slightly transparent.

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: excluded datapoints in graph builder

@julian - THANKS for this! I am generally pretty good about remembering to use shift to find hidden options, but had missed this one and just had an application where a user wanted to gather data from an entire part for various reasons, but only gather statistics on the 'region of interest'. This is perfect!
