Apr 7, 2018 1:44 PM
(7938 views)

Hello,

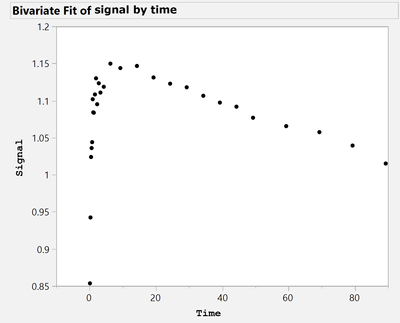

I would like to plot Y by X continous variables. X represent unit time., and Y is mean signal at each time point in X (please see below). I would like to add standard deviation bars to each point. How can I do it in JMP pro 14?

Your help and advices are highly appreciated!

john

John anderson

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Here is the graph

I Stacked the columns

Tables==>Stack

Choosing the 3 Signal columns, Selecting to Keep the Time column, and changing the names of the output columns from Label to Group and Data to Signal

Then using Graph Builder, I dragged Signal to Y, Time to X. I changed the Summary Statistic to Mean and then set the Error Bars to Standard Error.

Next I Right Clicked on the graph and selected Add==>Points

Below is a script that performs these tasks in JSL

```
Names Default To Here( 1 );
dt = Data Table( "jmp_signals" );
dtStack = dt <<
Stack(
columns( :Signal 2, :Signal 3, :Signal ),
Source Label Column( "Group" ),
Stacked Data Column( "Signal" )
);
dtStack << Graph Builder(
Variables( X( :time ), Y( :Signal ), Color( :Group ) ),
Elements(
Points(
X,
Y,
Legend( 10 ),
Summary Statistic( "Mean" ),
Error Bars( "Standard Error" )
),
Points( X, Y, Legend( 11 ), Jitter( "None" ) )
)
);
```

Jim

11 REPLIES 11

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

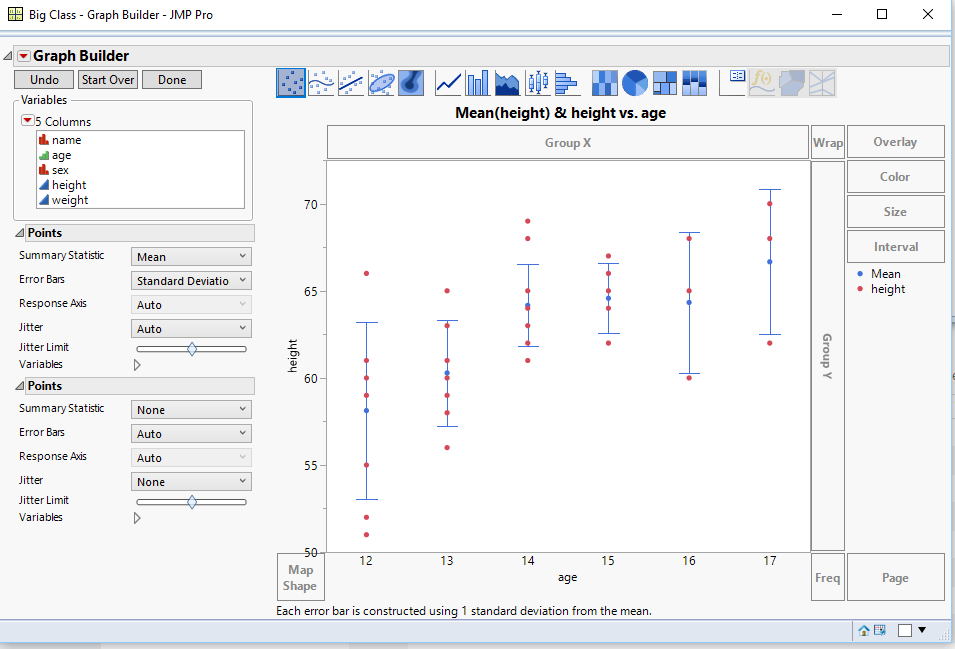

You can easily handle this using Graph Builder

Jim

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Created:
Apr 7, 2018 3:01 PM
| Last Modified: Apr 7, 2018 3:09 PM
(7924 views)
| Posted in reply to message from txnelson 04-07-2018

Dear txnelson – thank you so much for the response! I think you were able to show the standard deviation bars because the modeling type for X (i.e. age) is ordinal not continous. Correct? Is there any differnce?

Kindly, how happened that you have multiple heights for each age group. I expect that your spreadsheet has three columns one for age, the other one for height, and the third one for weight?

Also the title of your figure was "mean (height) & height vs age". That means you ploted two Y variables against one X variable (i.e. age). Correct?

I coud not do it! In my spreadsheet I have only two columns one for X and the other one for Y. both are continous variables. I highly appreciate any guidance. Thanks!

John anderson

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Created:
Apr 7, 2018 3:10 PM
| Last Modified: Apr 7, 2018 3:12 PM
(7916 views)
| Posted in reply to message from Johnanderson 04-07-2018

Where are you expecting that you are going to get your standard deviation? If you X variable is continuious.....each individual point will be considered independently.

You can easily change the Modeling Type from Continuous to Ordinal, if you have multiple values at the differenx X's

Jim

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Dear txnelson – I tried to change X to ordinal. When ploting X vs Y this will output one point in X for each point in Y. In the figure you provided there are multiple points in Y for each X. Kindly, why?

John anderson

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Just add a new Points entry for the chart.

Right click on the chart, and select "Add" and then select "Points"

Jim

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Created:
Apr 7, 2018 3:24 PM
| Last Modified: Apr 7, 2018 3:25 PM
(7906 views)
| Posted in reply to message from txnelson 04-07-2018

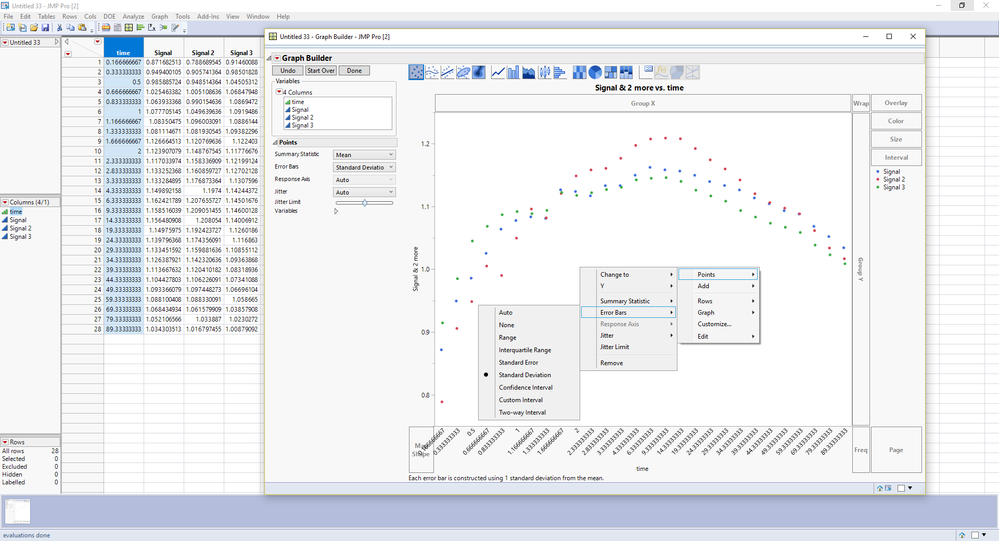

Kindly see bellow is my spreadsheet and the graph builder which failed to show the "Standard deviation Bars". I am not sure what I am doing wrong?!

John anderson

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Created:
Apr 7, 2018 3:28 PM
| Last Modified: Apr 7, 2018 3:33 PM
(7902 views)
| Posted in reply to message from Johnanderson 04-07-2018

You have separated your y column into 3 separate columns, which will not allow Graph Builder to group them for the calculation of the standard deviation.

If you Stack the 3 Signal columns, keeping the Time column too, then you can drag the stacked column to Y and Time to X, Color by the Label column from the Stack output, and then ask for the Error Bars, and add the new Points.

If this is too confusing, attach your data table, an I will take a go at it

Jim

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Standard deviation Bars

Created:
Apr 7, 2018 3:38 PM
| Last Modified: Apr 7, 2018 3:43 PM
(7896 views)
| Posted in reply to message from txnelson 04-07-2018

Dear txnelson please see attached is the spreadsheet. Thank you so much for the help!

John anderson

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Here is the graph

I Stacked the columns

Tables==>Stack

Choosing the 3 Signal columns, Selecting to Keep the Time column, and changing the names of the output columns from Label to Group and Data to Signal

Then using Graph Builder, I dragged Signal to Y, Time to X. I changed the Summary Statistic to Mean and then set the Error Bars to Standard Error.

Next I Right Clicked on the graph and selected Add==>Points

Below is a script that performs these tasks in JSL

```
Names Default To Here( 1 );
dt = Data Table( "jmp_signals" );
dtStack = dt <<
Stack(
columns( :Signal 2, :Signal 3, :Signal ),
Source Label Column( "Group" ),
Stacked Data Column( "Signal" )
);
dtStack << Graph Builder(
Variables( X( :time ), Y( :Signal ), Color( :Group ) ),
Elements(
Points(
X,
Y,
Legend( 10 ),
Summary Statistic( "Mean" ),
Error Bars( "Standard Error" )
),
Points( X, Y, Legend( 11 ), Jitter( "None" ) )
)
);
```

Jim
