How to change only sections of a graph's background color

[#1]

Hi All,

  I am interested in scripting a solution that allows me to change sections of a graph's background color. I know how to manually do this with editing the axes of a graph, but this changes everything vertically (or horizontally) over that range. I want to change sections that are bounded in both X and Y.

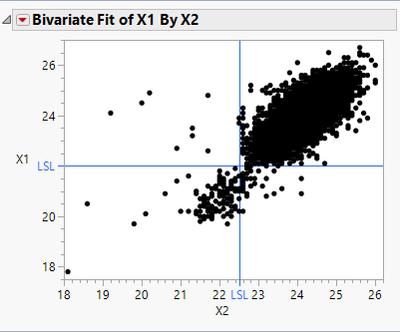

For example, I want to take the following graph and change it from this:

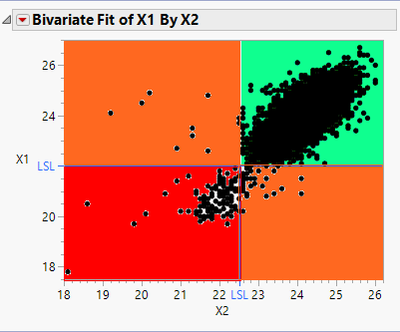

To something like this:

JMP does this with the Process Capability platform and Process Performance Plot, so I'm pretty sure it's possible, but I just don't know how to do it. Preferably, the background colors will change when changing the graph's axes, like it does in the Process Performance Plot.

  Any thoughts/feedback is much appreciated.

Thanks!,

DS

[#2 · Accepted solution]

The Rect() graphics function can create such colored areas. Be sure to call Rect() before the Marker() function so that the colors do not obscure the points.

Example:

Names Default to Here( 1 );

dt = Open( "$SAMPLE_DATA/Big Class.jmp" );

obj = dt << Bivariate(
	Y( :weight ),
	X( :height ),
	Fit Line( {Line Color( {212, 73, 88} )} ),
	SendToReport(
		Dispatch(
			{},
			"Bivar Plot",
			FrameBox,
			{Add Graphics Script(
				4,
				Description( "" ),
				Fill Color( "blue" );
				Rect( 50, 120, 60, 60, 1 );
			)}
		)
	)
);

[#3]

Hi @Mark_Bailey ,

  Thanks for the quick response, that is exactly what I'm looking for.

Thanks!,

DS

[#4]

• How can the bubble map achieve different backgrounds?

• https://community.jmp.com/t5/Discussions/When-drawing-bubbles-how-can-I-set-the-background-color-to/...

Thank Mark!
