Categorical heatmap?

[#1]

I'm trying to find a way to combine the two wafer maps below. In other words, I need the X/Y coordinates to actually appear as rectangular die areas on a wafer, like in the heatmap below (not as points), AND have the legend to be discreet and maybe customized colors like in the point map below (not as a continuous gradient from 0-4). Is there any way to combine these features? TIA!

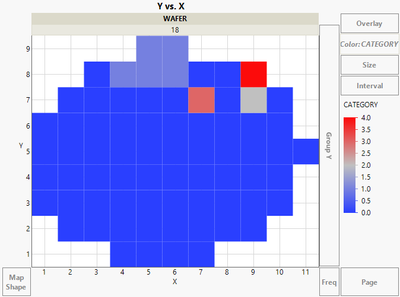

Heatmap:

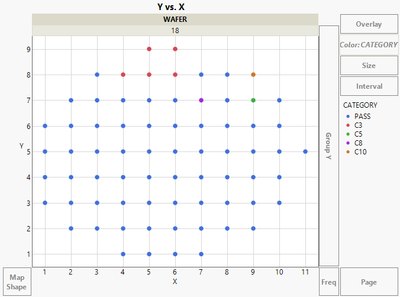

Point map:

[#2]

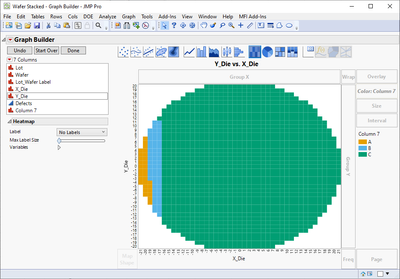

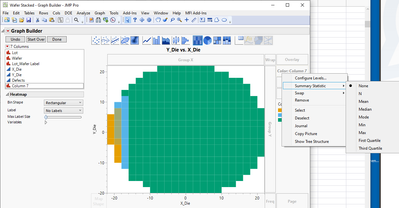

Only thing that comes quickly to my mind without seeing any data you are using, is to change the summary statistic of color to None

You can see that there can be some overlap depending on your axis increments (changing X and Y to nominal might help)

[#3]

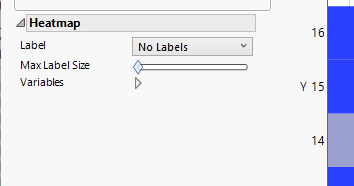

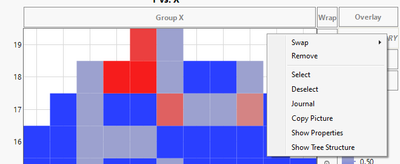

Thanks for the reply. When I right-click on Color I don't have that option though for summary statistics... Also under Heatmap I don't have Bin Shape option as you have in your screen shot. I wonder if these are features on a newer version? I have JMP Pro 14.3.0, which version do you have?

[#4]

Those images were from JMP Pro 17.2.0 and same features can be found from JMP16.2.0. I don't have anymore access to JMP versions older than JMP16 so I'm not sure how this could be done in JMP14.3. One thing you could try, is to change X and Y columns to Nominal (or Ordinal) and maybe JMP uses different "default" statistic.

[#5]

Ist the CATEGORY column in both Plots the same?
Interesting that there are numeric values in Point Plot - compared to the Strings in the Heatmap Plot.
