Hi

I'm completely new to JMP and have recently signed up for the trial license, with the purpose of investigating if JMP can provide any value with regards to analysis of data from uni-axial tensile testing of materials. I've attached a sample set of data, which represents the stress and strain output from the testing.

The data should be viewed as a time history data and I'm hopping that I can get some input on how to most efficiently apply JMP, and what tools I could use. I'm interested in determining sings such as the following:

- The yield stress and strain with confidence. The yield point is the first point where the slope is zero.
- Fit a curve and consider some sort of metric to quantify if the data can be assessed with confidence to represent the population.

Any input will be highly appropriated.

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Created:
Dec 21, 2019 5:45 PM
| Last Modified: Dec 21, 2019 5:45 PM
(5403 views)
| Posted in reply to message from statman 12-20-2019

All of these suggestions are terrific. But if you are like most of us, you want to know the benefit before investing the time. I extended @statman's suggestions and @P_Bartell using basic features of JMP.

**Data Prep**

- The Excel table you provided had circular links for both labels and values. In Excel, I did a quick copy/paste of your tables, specifying values and saved it. I don't know of a method in JMP's Excel Wizard to say use Values, however from Excel you can make a JMP table if you have the JMP add-in,
- In JMP, I used the Excel Wizard to read in the data, using the first 3 columns as headers and data starts on line 4.
- Excel graphs need multiple series x-y to plot multiple or overlay pictures. Most JMP platforms use tables organized like database tables with identifiers, other columns to select, filter or key off of.

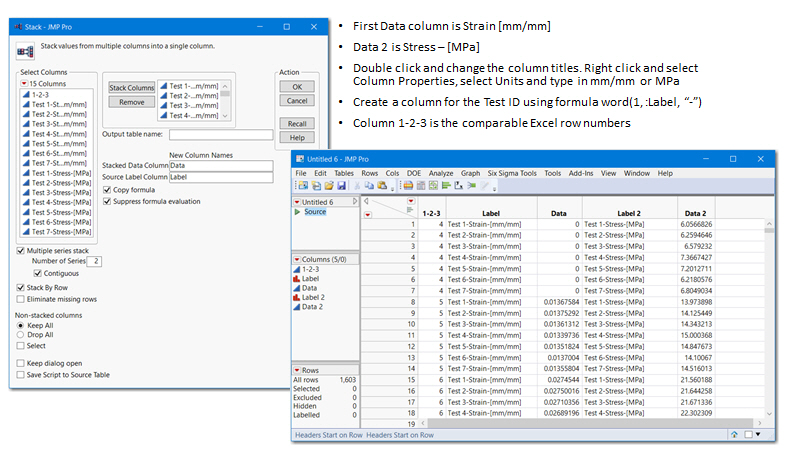

- From the JMP main menu you can easily convert the Excel type format to a database format with Main Menu > Tables > Stack. The dialog is shown below. By specifying all the Test columns, a Multiple Series Stack, 2 series, and contiguous the resulting table is almots ready for JMP graphs and analyses.
- Change the two data columns names/titles and specified units. See the bullets below. Then create a new columns for the Test ID

**Data Graph and Analyses**

- Once the steps above are completed. Main Menu > Graphs > Graph Builder. This has a drag and drop interface.
- Click on stress and drag to the Y column area.
- Click on Strain and drag to the X column area
- Click on Test ID and drag to the Wrap area and to the color area
- Now another nice fetauer is interactive filtering. From the Graph Builder red triange select Add Data Filter. I suggest Strain and Test ID. The picture is below. Now you can select on some tests, darg tke blue line or click and change the min and max values for Strain.

This will show how easy it is to work with JMP graphs and the nice UIs. For modeling, the yes @markbailey is correct JMP PRO is terrific. I don't recall if non-linear modeling is available in basic JMP.

Finally, you can capture most of the steps to a JMP script, which is important if you need to do this for new data, periodically.

Good luck.
