Dec 23, 2019 9:52 AM
(2736 views)

Hi,

I am plotting a variability plot and reporting as an interactive html. When I hover over the datapoints on the variability plot I see a peek into the Row-number and the corresponding Y-axis value. Is there a way to show the X-axis value in the peek window as well? I don't mind removing the row-number or the Y-axis value if necessary. Thanks.

-Prithvee

2 ACCEPTED SOLUTIONS

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

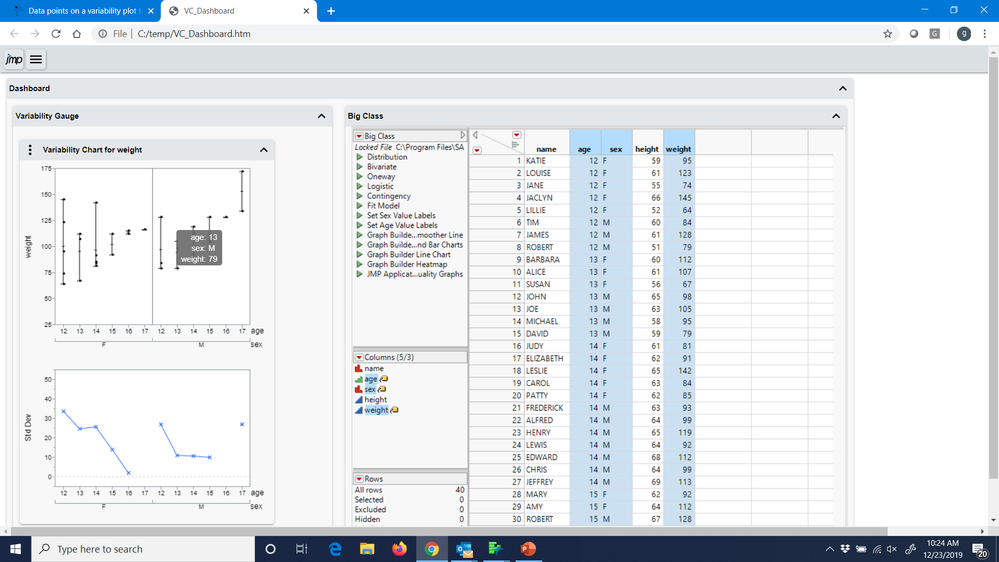

**Label**. Note I could add more variables not used to create the var chart. When I hover over a point I see the values of labeled columns. I think Labels address your question. If not, please provide more details.

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

@Ross_Metusalem, Oops, you are faster than I.

@psundar6, Ross and my response provided the same advice.

5 REPLIES 5

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Data points on a variability plot to display X-axis values instead of Y-axis and Row-number?

Hi Prithvee,

Head back to the data table, right click on the column corresponding to your x-axis variable and select Label/Unlabel. (You can also find the Label/Unlabel command under the Cols menu.) This will tell JMP to display this column's values in any hover labels in graphs. The column should now have a yellow tag icon next to it in the data table's columns pane, and you should now see the corresponding values in the hover label in your variability chart.

Ross

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

**Label**. Note I could add more variables not used to create the var chart. When I hover over a point I see the values of labeled columns. I think Labels address your question. If not, please provide more details.

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

@Ross_Metusalem, Oops, you are faster than I.

@psundar6, Ross and my response provided the same advice.

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Data points on a variability plot to display X-axis values instead of Y-axis and Row-number?

Oops clicked the wrong button. ANyway, thanks for the reply!

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Data points on a variability plot to display X-axis values instead of Y-axis and Row-number?

Thanks for your reply! I just figured this one out. Labels does give me more info on the plots.
