hogi · ‎09-08-2022

☐ cool new feature
☑ could help many users!

☑ removes a „bug“

☐ nice to have

☐ nobody needs it

#myTop10_2022

Short:

get rid of all this white space !!!

Long:

With nominal values on the x axis and X group activated, the axes of the sub-plots share a common list of values.

All plots show all values.

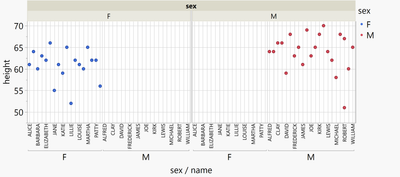

In the example below, X group says that girls are in the left plot and boys are in the right plot.

But due to axis sharing between both subplots, boys and girls show up on the axes of both plots.
This is counter-intuitive and consumes unnecessary space.

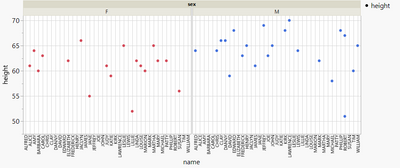

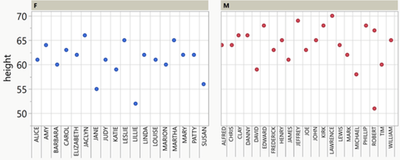

With some steps the underlying data table can be changed to generate a plot with girls just on the left and boys on the right:

https://community.jmp.com/t5/Discussions/X-group-gt-adjust-axis/m-p/542262

Would be great to have a right click option to directly "disentangle" the axis settings such that each axis gets (just) its own values.

similar topics:

- same effect for y axis values and Y group

- different axis scaling for continuous values in different sub-plots.

example: Plot with male and female students.

Unfortunately, the plot on the left (F!) lists also all the male students - and the plot on the right (M!) all the female students !??!

With nominal values on the x axis and X group activated, the axes of the sub-plots share a common list of values.All plots show all values. In the example below, X group says that girls are in the left plot and boys are in the right plot.But due to axis sharing between both subplots, boys and girls show up on the axes of both plots.This is counter-intuitive and consumes unnecessary space.With some steps the underlying data table can be changed to generate a plot with girls just on the left and boys on the right:https://community.jmp.com/t5/Discussions/X-group-gt-adjust-axis/m-p/542262 Would be great to have a right click option to directly "disentangle" the axis settings such that each axis gets (just) its own values. similar topics:- same effect for y axis values and Y group- different axis scaling for continuous values in different sub-plots. example: Plot with male and female students.Unfortunately, the plot on the left (F!) lists also all the male students - and the plot on the right (M!) all the female students !??!

more wishes submitted by

shampton82 · ‎06-17-2024

@hogi I agree, this is much needed! Any update would be appreciated @Sarah-Sylvestre !!

It would help out the new page "row" option as well as you can split out the different levels to be on their own Y axis but unless you are using a continuous Y axis you still have the same gaps in the X axis.

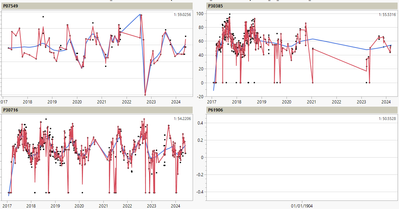

Here the Page is arrange by two rows and the x axis is the lot number. Each panel is by the part number. Each panel should only respect the lots associated with it.

I have to switch to a continuous X axis to make it useful

hogi · ‎07-27-2024

Why does Graph builder ignore the link axis setting for categorical values ?!?!

hogi · ‎08-05-2024

as an interim solution till the new functionality is available ....
there is workaround which I just learned from JMP support [TS-00156288]:

thanks @ Sarah

- use nested values on the x axis
- use page for the main groups

- use the new page layout

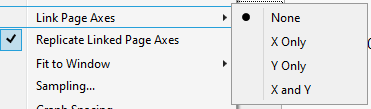

- link Y axes

- don't replicate the linked axes

- for each subplot: adjust the x range to show the subset
... and then remove the nested axis labels to hide your tracks.

dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
Graph Builder(
	Size( 770, 357 ),
	Show Control Panel( 0 ),
	Link Page Axes( "Y Only" ),
	Replicate Linked Page Axes( 0 ),
	Variables(
		X( :sex ),
		X( :name, Position( 1 ) ),
		Y( :height ),
		Page( :sex, Levels per Row( 2 ), Show Title( 0 ) ),
		Overlay( :sex )
	),
	Elements(
		Points( X( 1 ), X( 2 ), Y )
	),
);

dt = Open( "$SAMPLE_DATA/Big Class.jmp" ); Graph Builder( Size( 770, 357 ), Show Control Panel( 0 ), Link Page Axes( "Y Only" ), Replicate Linked Page Axes( 0 ), Variables( X( :sex ), X( :name, Position( 1 ) ), Y( :height ), Page( :sex, Levels per Row( 2 ), Show Title( 0 ) ), Overlay( :sex ) ), Elements( Points( X( 1 ), X( 2 ), Y ) ), );

hogi · ‎11-05-2024

We tried the workaround several times. VERY (!!) fragile, extremely dangerous!
