Scripters Club Recordings: Drawing Graphical Elements

[#1]

Topic: Drawing Graphical Elements

Presenters: @thickey1  and @jthi

Video 1:

Scripters Club_ Drawing Graphical Elements-20241016_150119-Meeting Recording.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 24:54

Loaded: 0%

00:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -24:54

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

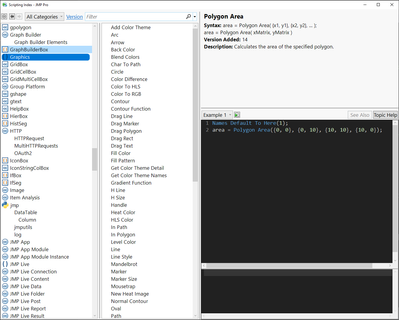

Most of these different graphical objects/functions can be found in the scripting index under category Graphics:

- Graphics Functions (jmp.com)

- And scripting guide Scripting Graphs (jmp.com)

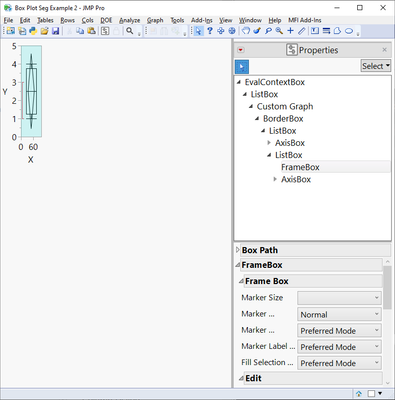

GraphBox will return a reference to DisplayBox[OwnerBox] and FrameBox is somewhere under that

Names Default To Here(1);

New Window("Box Plot Seg Example",   
	g = Graph Box(    
		Frame Size(40, 180),     
		Y Scale(0, 5),     
		Box Plot Seg([1, 2, 3, 4]) 
	)
);

You can also use Custom Maps to display the real coordinates. All the different methods do have their pros and cons.

Video 2:

Scripters Club_ Drawing Graphical Elements-20241016_152617-Meeting Recording.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 34:06

Loaded: 0%

00:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -34:06

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

[#2]

My material attached

[#3]

Are the scripts and tables working? I can't download. Thanks

[#4]

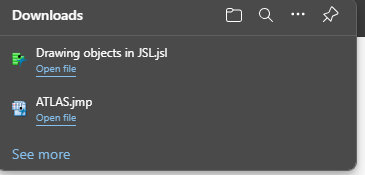

I managed to download them fine

Did you press    to download them?

[#5]

To automate the Seg creation for complicated graphs with multiple frameboxes, is there something like this Frame Box () which will simplify

Eval(
	Eval Expr(
		Report( obj )[FrameBox( 1 )] <<
		Add Graphics Script(
			p = Expr(Report( obj )[FrameBox( 1 )]);
			mysegs = p << Find Segs( );
)))

to

Report( obj )[FrameBox( 1 )] <<
Add Graphics Script( mysegs = this frame box() << Find Segs() )

[#6]

seems to be already available as a wish: New message to framebox, Add Graphic Function() or add possibility to use function inside add graphi...
