Temperature Profile - visualization

Hi Guys,

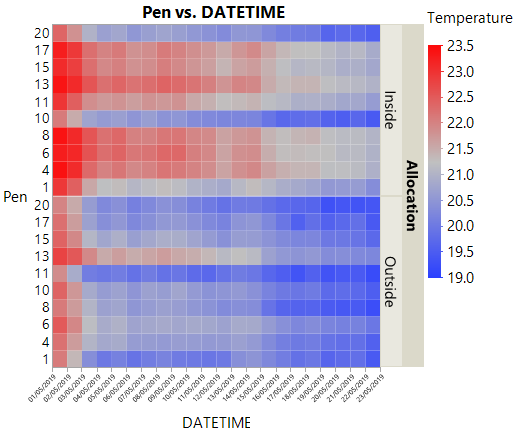

Could you please advice, how I can create below graph:

I have been looking into graph builder but no luck.

Thank you in advance



Temperature PROFILETemperature PROFILE

3 REPLIES 3
Highlighted
Craige_Hales
Staff (Retired)

Re: Temperature Profile - visualization

If you have the existing graph in JMP, use the red triangle menu and either redo->relaunch->OK to see the interactive builder, or save script to script window to get a script to reproduce it.



In Graph Builder, starting from scratch, drag variables to the drop zones and pick the heat map style (and turn off the other styles if dots are showing up.)

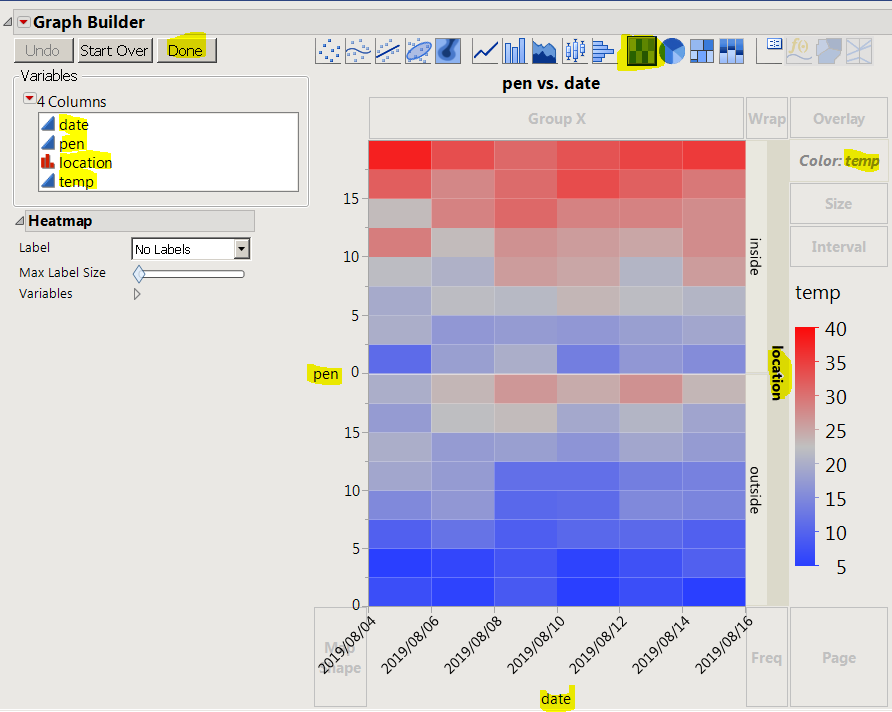

Graph BuilderGraph Builder

this script builds a test table and runs a graph builder script. Using ordinal for pen and date makes the axes behave the way you expect.

dt = New Table( "Untitled 2",
	Add Rows( 0 ),
	New Column( "date", Numeric, "ordinal", Format( "y/m/d", 12 ) ),
	New Column( "pen", Numeric, "ordinal", Format( "Best", 12 ) ),
	New Column( "location", Character, "Nominal" ),
	New Column( "temp", Numeric, "Continuous", Format( "Best", 12 ) )
);
For( t = Today(), t <= Today() + In Days( 10 ), t += In Days( 1 ),
	For( p = 1, p <= 20, p += 2,
		For( io = 0, io <= 1, io += 1,
			dt << addrows( 1 );
			dt:date = t;
			dt:pen = p;
			dt:location = If( io, "inside", "outside" );
			dt:temp = p + 10 * io + Random Integer( 0, 9 );
		)
	)
);

dt << Graph Builder(
	Size( 476, 580 ),
	Show Control Panel( 0 ),
	Variables( X( :date ), Y( :pen ), Group Y( :location ), Color( :temp ) ),
	Elements( Heatmap( X, Y, Legend( 42 ) ) )
);

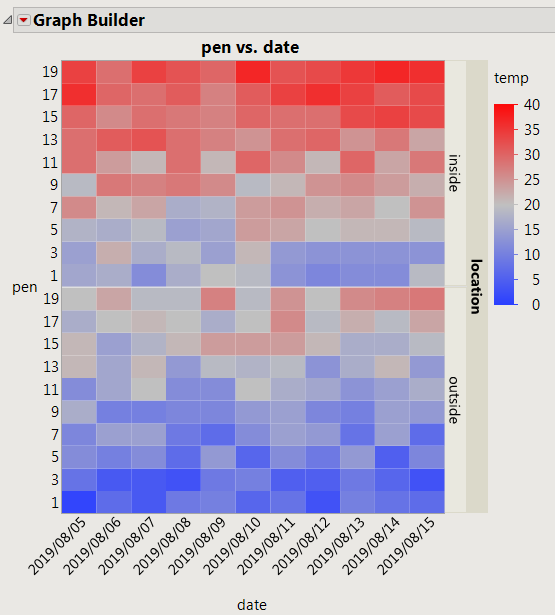

Heat mapHeat map



Craige
Highlighted
Mila
Level I

Re: Temperature Profile - visualization

Thank you very much for helping me out.

I struggle with pen numbers: my data loggers were allocated outside of pens : 1,4,6,8,10,11,13,15,17 and 20.

Could you please let me know how to present only this pens on Y axis.

I have been trying to do this in axis settings but no luck..

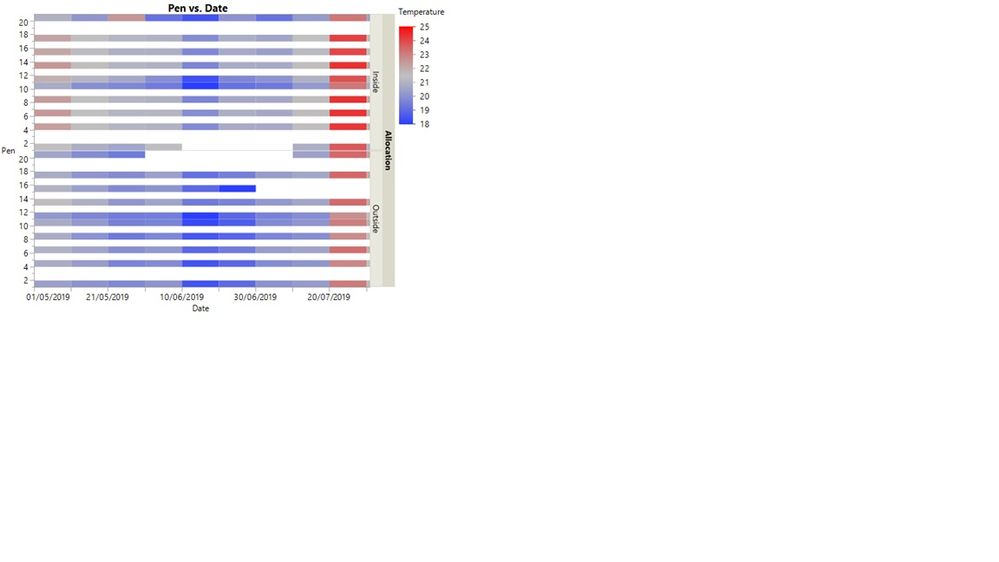

Pen vs  Date.jpg

Highlighted
Craige_Hales
Staff (Retired)

Re: Temperature Profile - visualization

try making pen (and probably date as well) ordinal.

click the icon to change the modeling typeclick the icon to change the modeling type

After deleting pens 3 and 5 I get this axis

3 and 5 are gone3 and 5 are gone

I think you are still using the continuous modeling type.

Craige
