Some problem using Heatmap

With attached Wafer Stacked Samll.jmp file, I plan to show the heatmap of wafer defect with following step, but Heatmap can't show properly .

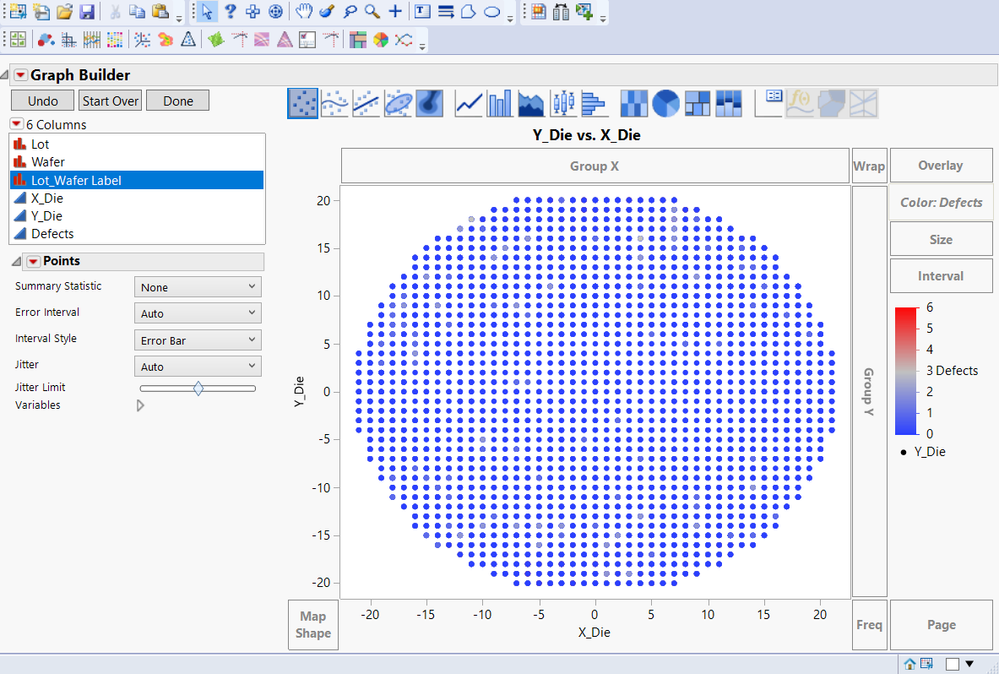

1. Showing the scatter plot, it's ok

Scatter plot.png

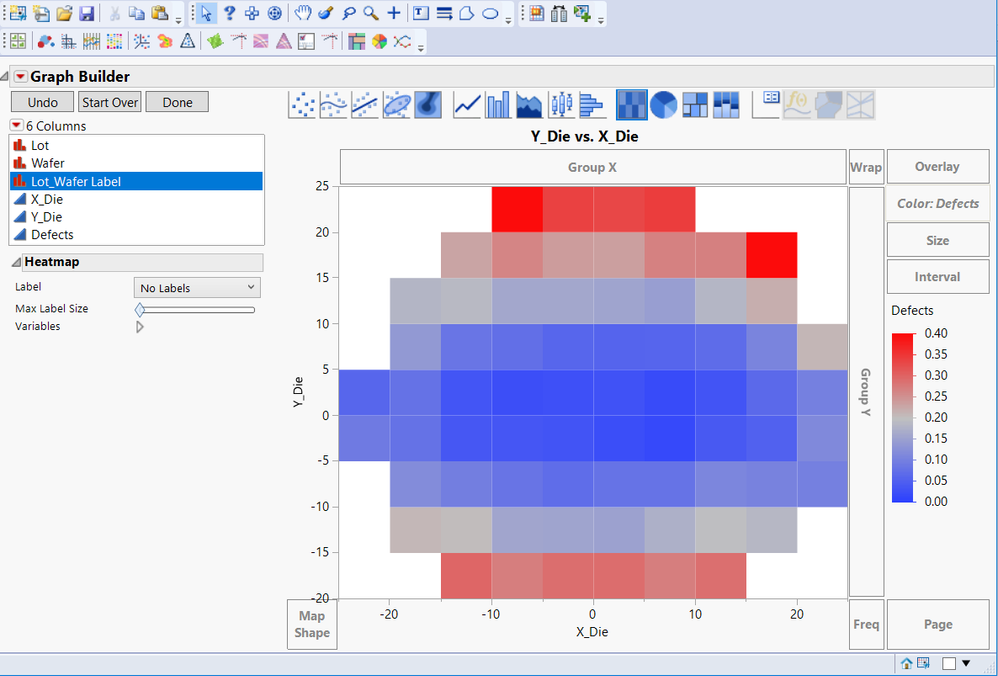

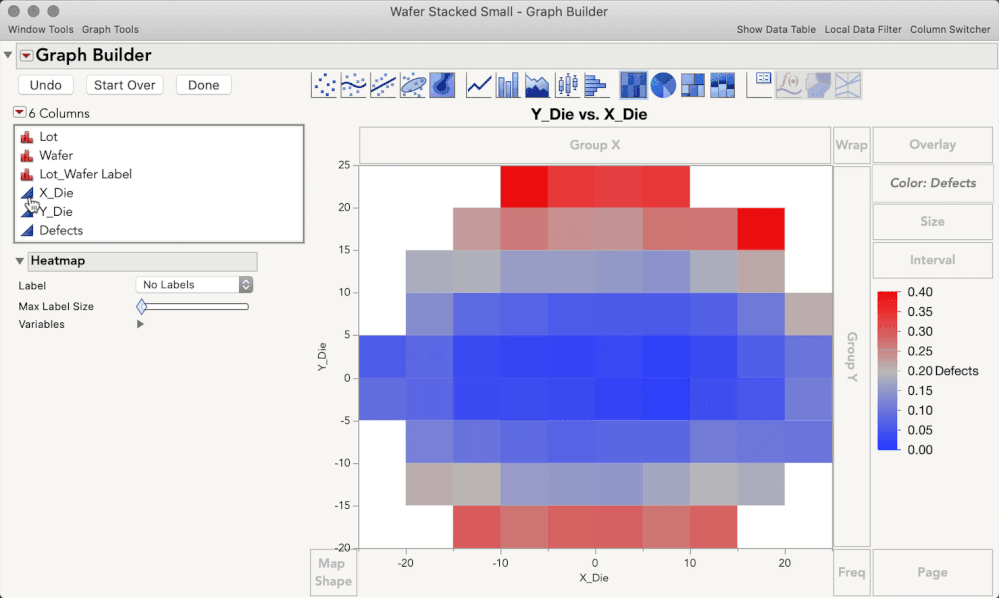

2. but when I show the Heatmap, it looks worng. It doesn't show heatmap for each die location.


1 ACCEPTED SOLUTION

Accepted Solutions
julian
Community Manager Community Manager

Re: Some problem using Heatmap

Hi @Justin_Yao,



The short answer: set your X and Y variables to ordinal, or change the Increment axis setting.



The longer answer:

I can see how that's undesirable in this situation. By default, and with continuous variables, the heatmap will set the axes so that there aren't too many bins, and in most situations this is good. In this case, you do want to see each die location. You have a few options to make JMP do this, and both are worth knowing about.



The first option is to adjust your X and Y axes to have an increment of 1 (and no minor tics). Double click each axis, and set the Increment to 1 in the bottom left section:

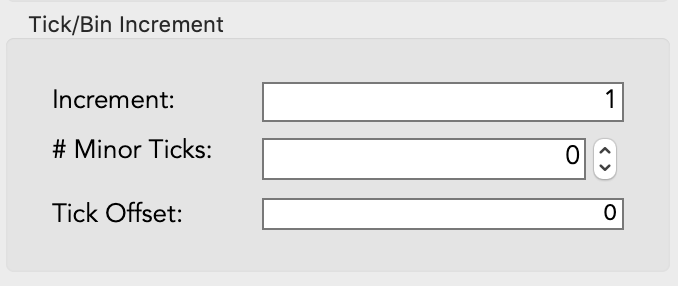

Screen Shot 2019-12-06 at 8.01.25 AM.png

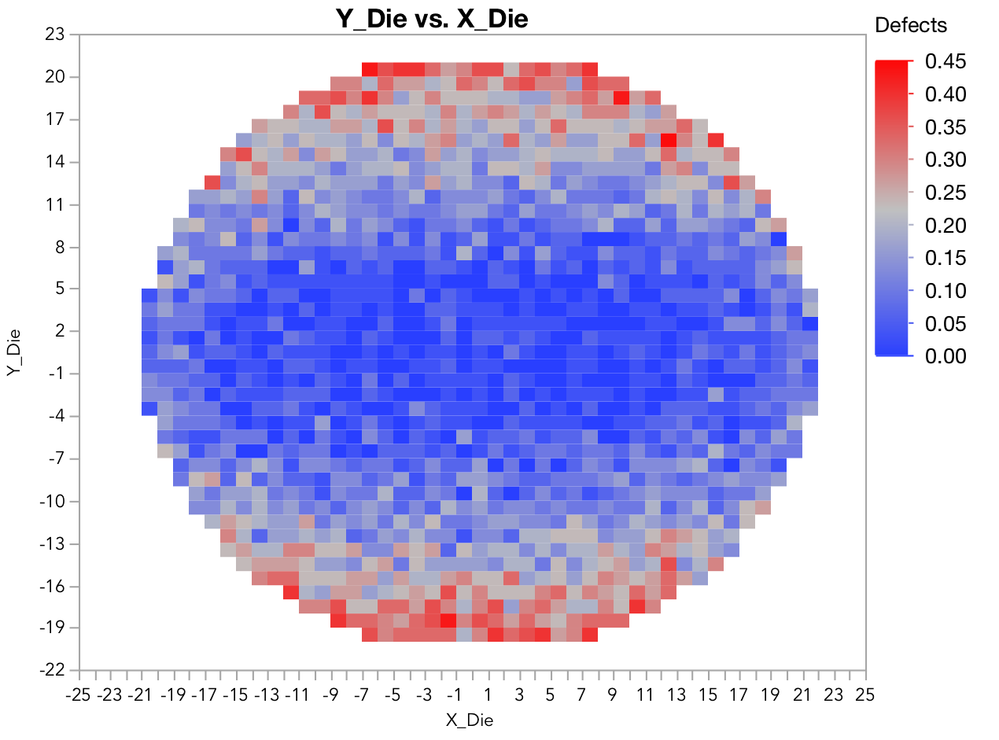

This will give you the following plot, which seems like what you want, or at least very close to it. Method 2 below is going to give you one additional benefit of displaying the die locations as their whole numbers, rather than ranges.




A second option is to change the modeling type of the X and Y variables to Ordinal. This will force JMP to display every level of each variable, and do so without any binning. One benefit of this is your die locations are displayed as the whole numbers they are, rather than ranges. To make this change, Right-Click the blue triangle in the variable list and change each variable to Ordinal, as below.






I hope this helps!



@julian





View solution in original post

11 REPLIES 11
julian
Community Manager Community Manager

Re: Some problem using Heatmap

Hi @Justin_Yao,



The short answer: set your X and Y variables to ordinal, or change the Increment axis setting.



The longer answer:

I can see how that's undesirable in this situation. By default, and with continuous variables, the heatmap will set the axes so that there aren't too many bins, and in most situations this is good. In this case, you do want to see each die location. You have a few options to make JMP do this, and both are worth knowing about.



The first option is to adjust your X and Y axes to have an increment of 1 (and no minor tics). Double click each axis, and set the Increment to 1 in the bottom left section:

Screen Shot 2019-12-06 at 8.01.25 AM.png





This will give you the following plot, which seems like what you want, or at least very close to it. Method 2 below is going to give you one additional benefit of displaying the die locations as their whole numbers, rather than ranges.




A second option is to change the modeling type of the X and Y variables to Ordinal. This will force JMP to display every level of each variable, and do so without any binning. One benefit of this is your die locations are displayed as the whole numbers they are, rather than ranges. To make this change, Right-Click the blue triangle in the variable list and change each variable to Ordinal, as below.






I hope this helps!



@julian





Justin_Yao
Level I

Re: Some problem using Heatmap

Sure it help, thank you julian.

dale_lehman
Level VII

Re: Some problem using Heatmap

I'm not sure of the technical reason why JMP does this, but when you switch to a heatmap it automatically bins the data.  If you adjust the increment on the X and Y axes to 1 (rather than 10 and 5, which is what the default graph appears to use), then your graph will look just like the scatter plot.  I will also point out that your data, colored by defects, shows little variation.  If you change the gradient from linear to quantile, you will see that there is varaiation - the choice of linear vs quantile gradient is not automatic and you need to think carefully about the context before deciding which to use.  But, when the defect values are clustered like this, the linear scale does not show much.

Actually, when I look at your defect data, it is predominantly zeros (92%).  It might be more informative to recode the defects into a binary variable (none or some) or three values (none, one, more than one).

Justin_Yao
Level I

Re: Some problem using Heatmap

Dale, this is a sample data from JMP's online training of 'Statistical Thinking for Industrial Problem Solving'. In fact, in the video, teacher didn't change the data modeling type or anything else, and get the correct Heatmap directly with same data file. I am a little confused.
julian
Community Manager Community Manager

Re: Some problem using Heatmap

Hi @Justin_Yao,

I know which video you're talking about (I am the one who recorded it), and I can see how that is confusing, my apologies! I'm not 100% sure what happened, but I believe what may have happened is that I had saved these axis settings to a column property on the table I used for recording the demo (after making changes, right-click an axis > save to column property).

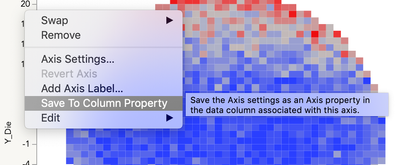

axis setting.png





In that way, when I recorded the demo and made the graph those axis settings are already set. I can see how this made for a confusing demo for users like you trying this out on their own. When I update this demo I will be sure to show the methods for changing the axis binning. Thanks for letting us know, this will help other users, too.



@julian





Justin_Yao
Level I

Re: Some problem using Heatmap

Oh, great!
hogi
Level XII

Re: Some problem using Heatmap

Hi @julian.

The hint with the "ordinal" setting works great



Unfortunately, for larger maps JMP automatically adjusts the minor grids.

So, one has to adjust the aggregation area (minor grid size) manually.



But even saving the settings as a column preference doesn't solve the problem:

ZoomOut/zoomIn will destroy all settings. Just run the code and then drag the axis to change the range to e.g. -400 ... 400 and then back to 0 ... 100.
-> All the red points will be gone



Is there a setting in GraphBuilder/Heatmap to forces JMP to fix the tile aggregation area to a fixed size (esp: 1x1)?
