Hello. I scripted some pie charts using Graph Builder and labelled them by percent of total values.

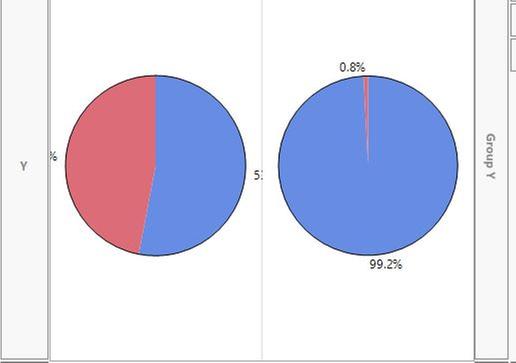

Even though the frame size is a square (220x220), the labels are cut off by the frame/graph border. See pie charts A, D, & E:

Am I doing something wrong? Please see attached script.

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

A big thank you to all my topic responders...

__Dale__: How to write a Column Formula for percent of total__Jim__: Info about Graph Builder labeling (non)functionality__Kevin__: A good laugh

While Dale's stacked bar chart suggestion was interesting, I couldn't use it since I've been tasked with creating dozens of scorecards -- each with its own pie chart and other metrics.

I ended up using a rounded percent (via Column Formula) and applying "Label by Value" to the pie chart. Here are updated graphs for A & D:

While it would be nice to display a percent "%" sign, the percent numbers now show completely. Cheers!
