Level I

Multivari chart combining means of variables

Feb 18, 2020 06:36 AM (1794 views)

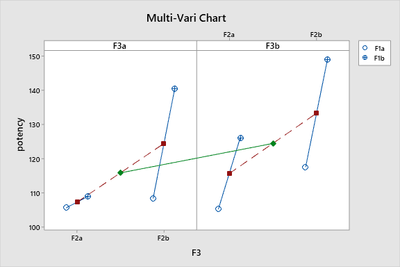

Using the graph builder I would appreciate to come up with the a layout similar to below.






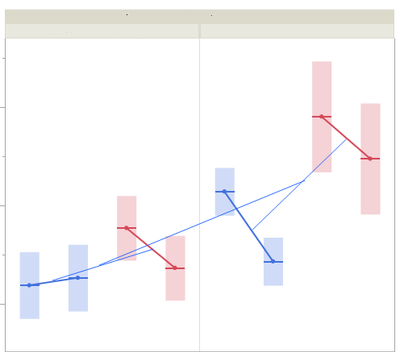

Graphbuilder let's me come up with something similar, but the relationship (the connecting lines) between categories is ‘artificial’, as in I drew them using the line option.








0 Kudos
2 REPLIES 2
statman
Super User statman
Super User

Re: Multivari chart combining means of variables

Feb 18, 2020 01:15 PM (1771 views)  |  Posted in reply to message from Zeban 02-18-2020

Not sure I can help...That picture looks like it's from Minitab.  I also don't use "Graph Builder". I use Variability/Attribute Gauge charts to show the multiple components.  This platform can be augmented to show and connect means (cell means, group means, etc.).  Although it does not match the multi-vary chart, it can be very helpful visually to compare multiple components of variation ion a sampling plan.

"All models are wrong, some are useful" G.E.P. Box
0 Kudos
Zeban
Zeban
Level I

Re: Multivari chart combining means of variables

Feb 19, 2020 03:02 AM (1748 views)  |  Posted in reply to message from statman 02-18-2020

Hi Statman,

You are right, the upper picture is from Minitab. I find it very appealing, and appreciate how a good graph can communicate a lot of information. Thus, the 'frustration' I cannot achieve this (smoothly) with JMP. I am familiar with the  Variability/Attribute Gauge charts. And yes, it does not match the multi-vary chart.

Thank you for your input.

0 Kudos
