How to create Box Plots when 5 summary parameters (Min, Q1, Median Q3, Max) and Limits (LSL, USL) are in a column corresponding to a given part_ID?
My data table has got part_ID entries in column 1. In column 2, the 5 summary parameters - Min, Q1, Median Q3, Max and the test limits LSL, USL appear. In column 1 the part ID is repeated 7 times (corresponding to 5 summary parameters + LSL & USL, total 7) after which the next part ID appears (and corresponding 7 numbers in column 2).
I do not want to change the format of the data table (i.e. do not want to transpose).
I want to create box plot trend chart (with part ID on X-axis) using the 5 summary parameters and the limits. How to do this via JSL?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: How to create Box Plots when 5 summary parameters (Min, Q1, Median Q3, Max) and Limits (LSL, USL) are in a column corresponding to a given part_ID?

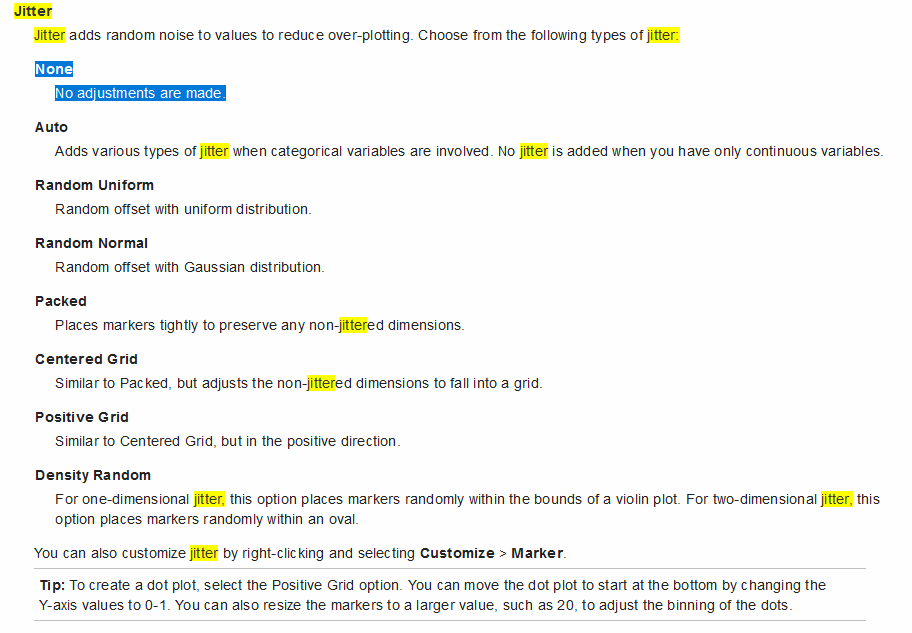

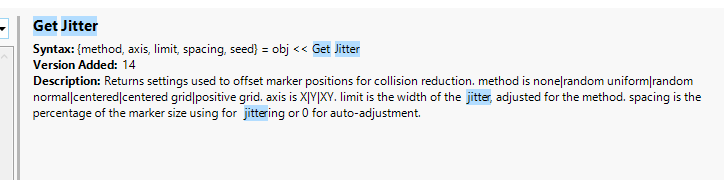

Your jitter is set to None
which I guess means that there should be no random noise added
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: How to create Box Plots when 5 summary parameters (Min, Q1, Median Q3, Max) and Limits (LSL, USL) are in a column corresponding to a given part_ID?
This additional script called by the earlier script (in this thread) does what I wanted. Script is specific to my data but shows a way to plot V Line () within a loop across different Frameboxes.
Changing to BoxPlots on the Graphbuilder with Q1, Q2 and Median selected in the local data filter gets proper boxplots. V line () connects the Max and Min completing the anatomy of a box plot. As only Q1, Q2 are selected and rest of the data ignored, I think one gets the correct box (selecting more parameters such as Min and Max in the local data filter gives incorrect box).
Names Default To Here (1);
Clear Log ();
setVLines_atMinMax = Function ( {gbr, FrameboxNo, PartNo, Min, Max}, {},
Eval(EvalExpr(gbr [Framebox (FrameboxNo)]<< Add graphics Script (
V Line (Expr(PartNo-1), Expr(Min), Expr(Max));
)));
);
gbr = gb << report;
nParts =5;
nc = ncols (dt); //number of coulms in my data table
For (j =1, j <=(nc-1), j++,
FrameboxNo = j;
for ( i = 1, i <= nParts, i++,
ind = (7*i-3); //show (ind);
ind_next = (7*i -3) + 1; //show (ind_next);
PartNo = Num(:PartID[ind]); //show (PartNo);
Min = Column(nc) [ind]; show (Min);
Max = Column(nc) [ind_next]; show (Max);
setVLines_atMinMax (gbr, FrameboxNo, PartNo, Min, Max);
);
nc = nc-1;
);
//show (FrameboxNo); show (nc);
