How can I multiple plot in one graph builder by different parameters?









1 ACCEPTED SOLUTION

Accepted Solutions
stan_koprowski
Community Manager Community Manager

Re: How can I multiple plot in one graph builder by different parameters?

Hi @Fusion,

If I understand correctly you would like a separate graph for each of your process parameters.



An easy way to accomplish this is to first stack your data--

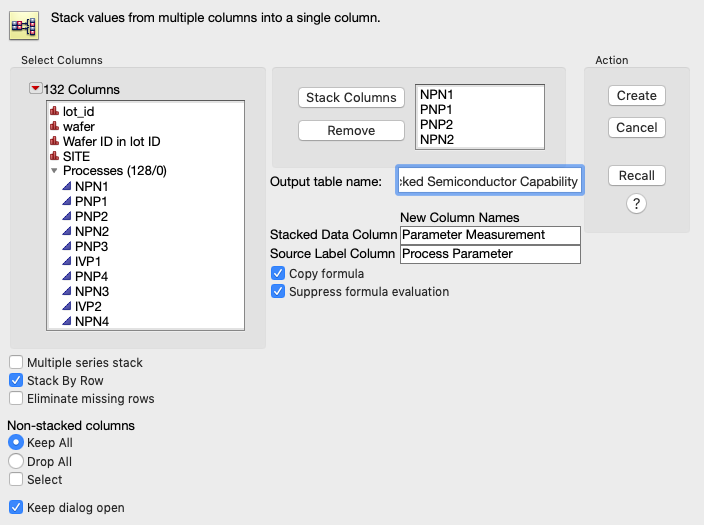

JMP Tables-->StackJMP Tables-->Stack



Once the data is stacked you can use the page by role in graph builder to create a separate graph for each process parameter.



 JMP Graph Builder Page drop zoneJMP Graph Builder Page drop zone

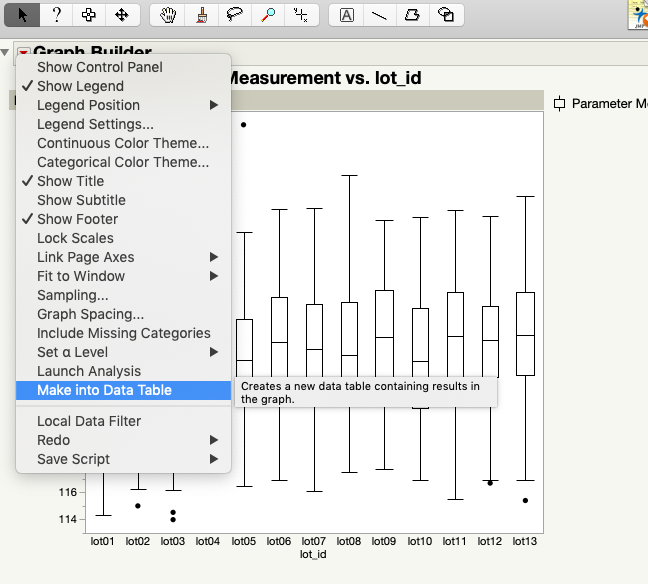

You could then put each graph back into the data table--JMP Make into Data TableJMP Make into Data Table

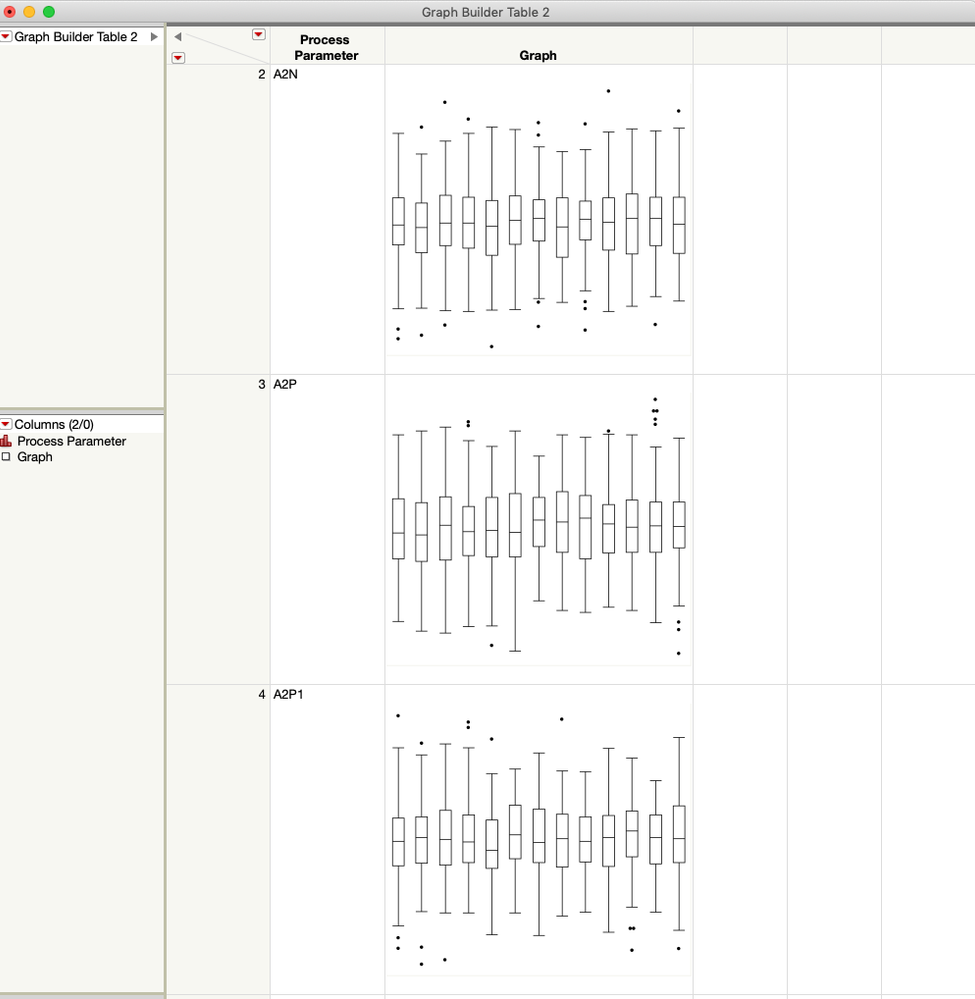

 Process Parameters in data tableProcess Parameters in data table







Names Default To Here(1);
dt = Open("$SAMPLE_DATA/Semiconductor Capability.jmp");
dt << Stack(
	columns(
		:NPN1,
		:PNP1,
		:PNP2,
		:NPN2,
		:PNP3,
		:IVP1,
		:PNP4,
		:NPN3,
		:IVP2,
		:NPN4,
		:SIT1,
		:INM1,
		:INM2,
		:VPM1,
		:VPM2,
		:VPM3,
		:PMS1,
		:SNM1,
		:SPM1,
		:NPN5,
		:EP2,
		:ZD6,
		:PBA,
		:PLG,
		:CAP,
		:PBA3,
		:PLG2,
		:PNP5,
		:NPN6,
		:PNP6,
		:PNP7,
		:NPN7,
		:PNP8,
		:IVP3,
		:IVP4,
		:IVP5,
		:IVP6,
		:PNP9,
		:NPN8,
		:NPN9,
		:IVP7,
		:NPN10,
		:N_1,
		:PBA1,
		:WPR1,
		:B10,
		:PLY10,
		:VBE210,
		:VTN210,
		:VTP210,
		:SIT2,
		:SIT3,
		:INV2,
		:INV3,
		:INV4,
		:INV5,
		:FST1,
		:FST2,
		:RES1,
		:RES2,
		:PNM1,
		:PPM1,
		:FNM1,
		:FPM1,
		:FST3,
		:FST4,
		:RES3,
		:RES4,
		:A1,
		:B1,
		:A2N,
		:A2P,
		:A2P1,
		:IVP8,
		:IVP9,
		:DE_H1,
		:NF_H1,
		:ESM1,
		:ESM2,
		:ESP1,
		:YFU1,
		:VPM4,
		:PBA2,
		:PBB1,
		:LYA1,
		:LYB1,
		:DEM1,
		:DEP1,
		:NFM1,
		:PLY1,
		:VDP1,
		:VDP2,
		:SNW1,
		:RSP2,
		:PLY2,
		:RSP1,
		:VDP3,
		:PBL1,
		:PLG1,
		:VDP4,
		:SPW1,
		:VIA1,
		:INM3,
		:VPM5,
		:VPM6,
		:INM4,
		:VPM7,
		:M1_M1,
		:M2_M2,
		:P1_P1,
		:E2A1,
		:E2B1,
		:NPN11,
		:IVP10,
		:PNP10,
		:INM5,
		:VPM8,
		:VPM9,
		:INM6,
		:VPM10,
		:N2A1,
		:N2B1,
		:NM_L1,
		:P2A1,
		:P2B1,
		:PM_L1,
		:P1,
		:M1
	),
	Source Label Column( "Process Parameter" ),
	Stacked Data Column( "Parameter Measurement" ),
	Output Table( "Stacked Semiconductor Capability" )
);

gb_obj = Graph Builder(
	Size( 534, 63946 ),
	Show Control Panel( 0 ),
	Variables(
		X( :lot_id ),
		Y( :Parameter Measurement ),
		Page( :Process Parameter )
	),
	Elements( Box Plot( X, Y, Legend( 4 ) ) )
);
gb_obj << Make into Data Table;

cheers,

Stan

View solution in original post

7 REPLIES 7
ian_jmp
Level X

Re: How can I multiple plot in one graph builder by different parameters?

I'm not completely sure what you want. If you run this code:

Names Default To Here(1);
dt = Open("$SAMPLE_DATA/Semiconductor Capability.jmp");
dt << Graph Builder(
				Show Control Panel( 0 ),
				Variables( X( :lot_id ), Y( :NPN1 ), Y( :PNP1 ), Y( :PNP2 ), Group X( :SITE ) ),
				Elements( Position( 1, 1 ), Box Plot( X, Y, Legend( 53 ) ) ),
				Elements( Position( 1, 2 ), Box Plot( X, Y, Legend( 54 ) ) ),
				Elements( Position( 1, 3 ), Box Plot( X, Y, Legend( 55 ) ) )
			);

you will get:

Screen Shot 2018-11-14 at 09.28.37.png

To get this inteteractively, you just need to understand how the Graph Builder drop zones work.

Fusion
Level I

Re: How can I multiple plot in one graph builder by different parameters?

THANKS,Yours code isn't what I want.

Just like the attachment I uploaded,I want plot multiple Graphics. But yours is single Graphics.

Example: there is another variable Z,  Z = 1,  plot a graphic like what you show; Z=2, plot a graphic like what you show, etc.

stan_koprowski
Community Manager Community Manager

Re: How can I multiple plot in one graph builder by different parameters?

Hi @Fusion,

If I understand correctly you would like a separate graph for each of your process parameters.



An easy way to accomplish this is to first stack your data--

JMP Tables-->StackJMP Tables-->Stack



Once the data is stacked you can use the page by role in graph builder to create a separate graph for each process parameter.



 JMP Graph Builder Page drop zoneJMP Graph Builder Page drop zone

You could then put each graph back into the data table--JMP Make into Data TableJMP Make into Data Table

 Process Parameters in data tableProcess Parameters in data table







Names Default To Here(1);
dt = Open("$SAMPLE_DATA/Semiconductor Capability.jmp");
dt << Stack(
	columns(
		:NPN1,
		:PNP1,
		:PNP2,
		:NPN2,
		:PNP3,
		:IVP1,
		:PNP4,
		:NPN3,
		:IVP2,
		:NPN4,
		:SIT1,
		:INM1,
		:INM2,
		:VPM1,
		:VPM2,
		:VPM3,
		:PMS1,
		:SNM1,
		:SPM1,
		:NPN5,
		:EP2,
		:ZD6,
		:PBA,
		:PLG,
		:CAP,
		:PBA3,
		:PLG2,
		:PNP5,
		:NPN6,
		:PNP6,
		:PNP7,
		:NPN7,
		:PNP8,
		:IVP3,
		:IVP4,
		:IVP5,
		:IVP6,
		:PNP9,
		:NPN8,
		:NPN9,
		:IVP7,
		:NPN10,
		:N_1,
		:PBA1,
		:WPR1,
		:B10,
		:PLY10,
		:VBE210,
		:VTN210,
		:VTP210,
		:SIT2,
		:SIT3,
		:INV2,
		:INV3,
		:INV4,
		:INV5,
		:FST1,
		:FST2,
		:RES1,
		:RES2,
		:PNM1,
		:PPM1,
		:FNM1,
		:FPM1,
		:FST3,
		:FST4,
		:RES3,
		:RES4,
		:A1,
		:B1,
		:A2N,
		:A2P,
		:A2P1,
		:IVP8,
		:IVP9,
		:DE_H1,
		:NF_H1,
		:ESM1,
		:ESM2,
		:ESP1,
		:YFU1,
		:VPM4,
		:PBA2,
		:PBB1,
		:LYA1,
		:LYB1,
		:DEM1,
		:DEP1,
		:NFM1,
		:PLY1,
		:VDP1,
		:VDP2,
		:SNW1,
		:RSP2,
		:PLY2,
		:RSP1,
		:VDP3,
		:PBL1,
		:PLG1,
		:VDP4,
		:SPW1,
		:VIA1,
		:INM3,
		:VPM5,
		:VPM6,
		:INM4,
		:VPM7,
		:M1_M1,
		:M2_M2,
		:P1_P1,
		:E2A1,
		:E2B1,
		:NPN11,
		:IVP10,
		:PNP10,
		:INM5,
		:VPM8,
		:VPM9,
		:INM6,
		:VPM10,
		:N2A1,
		:N2B1,
		:NM_L1,
		:P2A1,
		:P2B1,
		:PM_L1,
		:P1,
		:M1
	),
	Source Label Column( "Process Parameter" ),
	Stacked Data Column( "Parameter Measurement" ),
	Output Table( "Stacked Semiconductor Capability" )
);

gb_obj = Graph Builder(
	Size( 534, 63946 ),
	Show Control Panel( 0 ),
	Variables(
		X( :lot_id ),
		Y( :Parameter Measurement ),
		Page( :Process Parameter )
	),
	Elements( Box Plot( X, Y, Legend( 4 ) ) )
);
gb_obj << Make into Data Table;

cheers,

Stan

Fusion
Level I

Re: How can I multiple plot in one graph builder by different parameters?

Hi @stan_koprowski,why I can't find "Make into datatable" in Graph Builder,My JMP version is  JMP11 @Windows x64.

stan_koprowski
Community Manager Community Manager

Re: How can I multiple plot in one graph builder by different parameters?

Hi @Fusion,



Sorry but the Make into Data Table red triangle option which creates a new data table that contains the results from the graph was added in the JMP 12 release.



Stan



Fusion
Level I

Re: How can I multiple plot in one graph builder by different parameters?

OK. Thank you very much for the answer.
nubilalis
Level I

Re: How can I multiple plot in one graph builder by different parameters?

This is a nice solution, but it loses the x and y labels. Is there a way to have those in the data table?
