Horizontal plotting two tables to one journal

Hello again,

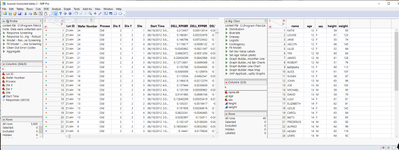

I have two different tables and I just want to put them on the same journal/HTML horizontal.
is there a script command for doing such?

I tried to use the bellow (which I found in this forum) but the tables  came out vertically:nw2 = New Window("horizontal tables", hlb = H List Box()); For(i = 1, i <= N Table(), i++, hlb << Append(Data Table(i) << new data box); //Active tables side by side Data Table(i) << journal; // Journal; tables inactive, for browsing data only );



1 ACCEPTED SOLUTION

Accepted Solutions
txnelson
Super User

Re: Horizontal plotting two tables to one journal

Here is how I would approach the issue.


//nw1 = New Window("vertical tables");

nw2 = New Window( "horizontal tables", <<journal, hlb = H List Box() );

For( i = 1, i <= N Table(), i++,

//hlb << Append(Data Table(i) << new data box); //Active tables on top of eachother

	hlb << Append( Data Table( i ) << new data box ); //Active tables side by side

	//Data Table(i) << journal; // Journal; tables inactive, for browsing data only

);



Jim

View solution in original post

3 REPLIES 3
txnelson
Super User

Re: Horizontal plotting two tables to one journal

Here is how I would approach the issue.


//nw1 = New Window("vertical tables");

nw2 = New Window( "horizontal tables", <<journal, hlb = H List Box() );

For( i = 1, i <= N Table(), i++,

//hlb << Append(Data Table(i) << new data box); //Active tables on top of eachother

	hlb << Append( Data Table( i ) << new data box ); //Active tables side by side

	//Data Table(i) << journal; // Journal; tables inactive, for browsing data only

);



Jim
ileshem
Level III

Re: Horizontal plotting two tables to one journal

Thanks! that worked great.
Is there a way to insert space between the two tables or is it too much for JMP?

txnelson
Super User

Re: Horizontal plotting two tables to one journal

JMP has very powerful capabilities in modification and/or the creation of new output displays.  For your new request, one only has to add a Spacer Box between the outputs that are being appended.




//nw1 = New Window("vertical tables");

nw2 = New Window( "horizontal tables", <<journal, hlb = H List Box() );

For( i = 1, i <= N Table(), i++,

//hlb << Append(Data Table(i) << new data box); //Active tables on top of eachother

	hlb << Append( Data Table( i ) << new data box ); //Active tables side by side

	hlb << Append(  Spacer Box( Size( 25, 1) ) );

	//Data Table(i) << journal; // Journal; tables inactive, for browsing data only

);
Jim
