Graph Builder
Hello
I have data that included Die X and Die Y and which BIN was FAIL or PASS
I understand this graph I should create this by Graph Builder
but I tried to do it and I did receive so beautiful result or something close to it.
so I have a few questions
1) How I can create the demo of the circle wafer
2) how I can note X in a place where I do not have data for this unit
3) Color and square shape I believe I can do it in the database by color rows and in markers
I provide the example that I see other people do (not in JMP), so my question is if by JMP I can do something similar to this?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: Graph Builder
Shape files, using heatmaps/points plot, background image/map or graphic scripts are some options you have with JMP.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: Graph Builder
Hello
so If I understood well, I could create the graph like this only
So my question is if I can add inside of the square shape the number of errors from the database (bin)?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: Graph Builder

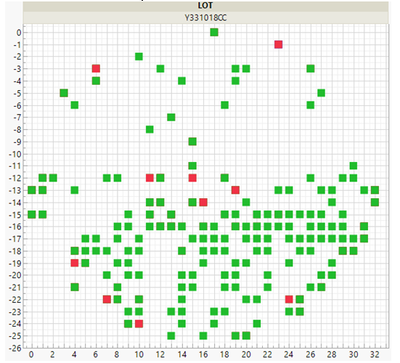

With large enough graph you can do something like this
You can do something a bit similar when using Shape Files but I think then you have to use Label row state and column property (and maybe summary table)
