Get label function not working anymore with Get Legend Server in JMP 18.1.1

[#1]

Hello,

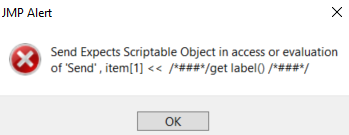

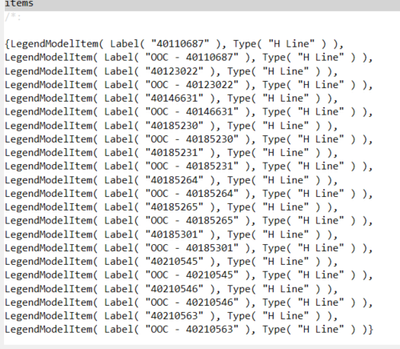

The command below works in JMP 17, and allows me to retrieve the label of a legend. But since JMP 18 it no longer works, and I get an error message instead.

Does anyone know how to fix this?

Names Default To Here( 1 );

dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
gb = Graph Builder(
	Variables(
		X( :height ),
		Y( :weight ),
		Overlay( :sex ),
		Color( :age )
	),
	Elements(
		Points( X, Y, Legend( 1 ) ),
		Smoother( X, Y, Legend( 2 ) )
	)
);
lgnd = gb << Get Legend Server;
item = (lgnd << Get Legend Items)[1];

show(item[1] << get label());
item[1]  << Set Properties( {Transparency( 1 )} );

[#2]

One option is to use a bit different syntax

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");
gb = Graph Builder(
	Variables(X(:height), Y(:weight), Overlay(:sex), Color(:age)),
	Elements(Points(X, Y, Legend(1)), Smoother(X, Y, Legend(2)))
);
lgnd = gb << Get Legend Server;
item = lgnd << Get Legend Item(1, 1);
Show(item << get label());
item << Set Properties({Transparency(0.2)});

Legend Model / Legend Server / Legend Display is one of the (most) annoying things in JMP to work through JSL with and it might break in a bit weird ways between version changes...

[#3]

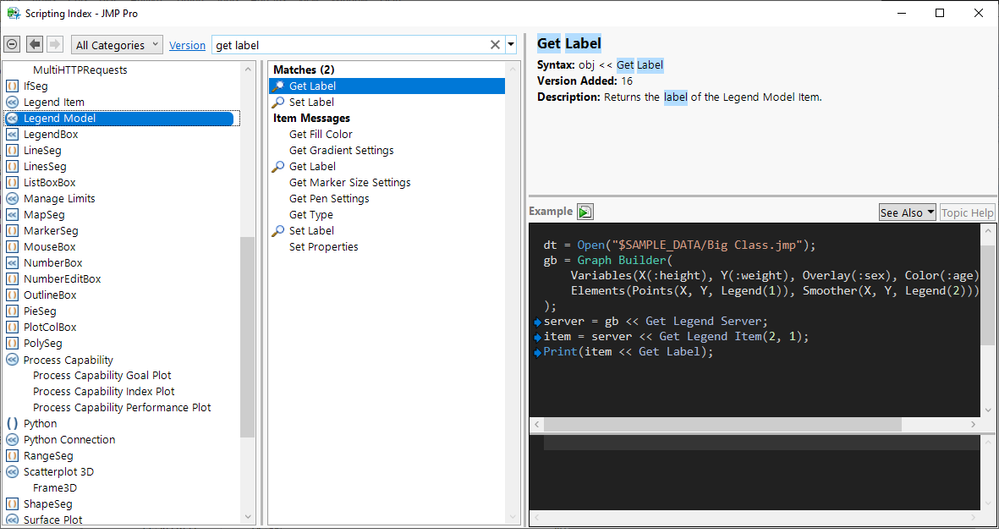

Scripting Index does also offer two options (search for Get Label). Get Legend Item doesn't have documentation so it might be safer to use Legend Display + << Get Item

Using Legend Display

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");
gb = Graph Builder(
	Variables(X(:height), Y(:weight), Overlay(:sex), Color(:age)),
	Elements(Points(X, Y, Legend(1)), Smoother(X, Y, Legend(2)))
);
lgnd = gb << Get Legend Display;
item = lgnd << Get Item(2, 1);
Print(item << Get Label);

Using Legend Server

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");
gb = Graph Builder(
	Variables(X(:height), Y(:weight), Overlay(:sex), Color(:age)),
	Elements(Points(X, Y, Legend(1)), Smoother(X, Y, Legend(2)))
);
server = gb << Get Legend Server;
item = server << Get Legend Item(2, 1);
Print(item << Get Label);

[#4]

Hello,

Thank your for your answer, your change works. But I'm having trouble understanding what the function arguments (A,B) are and where to find them in Get Legend Item(A,B). Basically, I want to loop through my list of items and make transparent those that have a specific label. Naively, I was using Get Legend Item(i, 1), thinking that it was the i-th item, but it's obviously the ID model and I'm getting a bit confused.

[#5]

I think in that case you can use << Get Items (this might have had a bug with some earlier JMP18 version than 18.1.1 if you were to use For Each loop but seems to work in 18.1.1)

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");
gb = dt << Graph Builder(
	Variables(X(:height), Y(:weight), Overlay(:sex), Color(:age)),
	Elements(Points(X, Y, Legend(1)), Smoother(X, Y, Legend(2)))
);
lgnd = gb << Get Legend Display;
items = lgnd << Get Items;
For Each({item}, items,
	show(item << get label);
);

[#6]

Hello,

Thank you again for your answer ! That doesn't solve my problem, but I haven't explained the context sufficiently. More details below. I have a script that allows me to see how my batches evolve over time. This script also generates a listbox with the list of my batches. If I click on a value, it will only display the evolution of this batch.

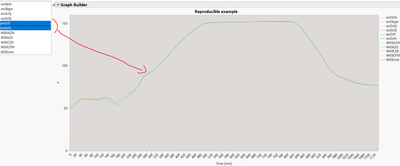

After clicking on one or several batches - expected results:

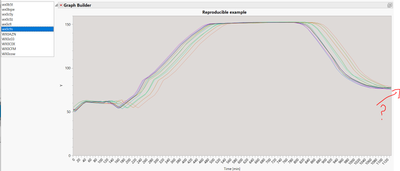

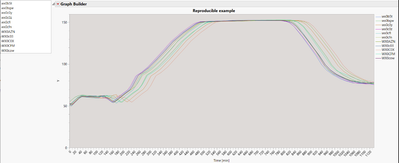

And that's where we come back to the part that crashes and that you helped me with. But the proposed fix, for some reason that I don't know, makes the legend disappear right away, but not the lines in the graph.

[#7 · Accepted solution]

I will take a look this evening my time (currently 13:00).

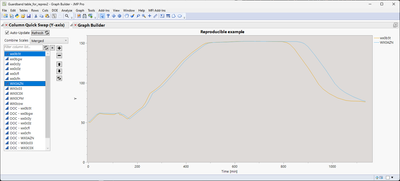

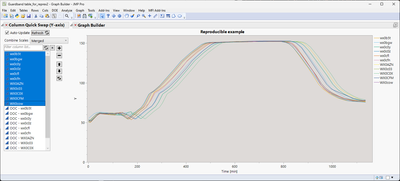

Could something like this help for now Column Quick Swapper - easily change multiple Y and X-axis columns in Graph Builder I did notice that it doesn't work if you have transform column, so you would have to move your X axis to table column but after that it seems to work

(The add-in doesn't manipulate Legend it manipulates Y-axis variables) there is also wish list item in hopes for JMP to support that type of functionalities natively New filter "Column Filter" a combination of Local Data Filter and Column Switcher

[#8 · Accepted solution]

Seems to be a mess, but maybe this gives some ideas

Names Default To Here(1);

cols = {"wx0b5t", "wx0bgw", "wx0c0y", "wx0c0z", "wx0cfl", "wx0cfn", "WX0AZN", "WX0c03", "WX0C0X", "WX0CFM", "WX0cow"};

dt = Open("$DOWNLOADS/Guardband table_for_reprex2.jmp");

gb = dt << Graph Builder(
	Transform Column("Row", Formula(Row())),
	Size(1149, 561),
	Show Control Panel(0),
	Variables(
		X(:Row),
		Y(:wx0b5t),
		Y(:"OOC - wx0b5t"n, Position(1)),
		Y(:wx0bgw, Position(1)),
		Y(:"OOC - wx0bgw"n, Position(1)),
		Y(:wx0c0y, Position(1)),
		Y(:"OOC - wx0c0y"n, Position(1)),
		Y(:wx0c0z, Position(1)),
		Y(:"OOC - wx0c0z"n, Position(1)),
		Y(:wx0cfl, Position(1)),
		Y(:"OOC - wx0cfl"n, Position(1)),
		Y(:wx0cfn, Position(1)),
		Y(:"OOC - wx0cfn"n, Position(1)),
		Y(:WX0AZN, Position(1)),
		Y(:"OOC - WX0AZN"n, Position(1)),
		Y(:WX0c03, Position(1)),
		Y(:"OOC - WX0c03"n, Position(1)),
		Y(:WX0C0X, Position(1)),
		Y(:"OOC - WX0C0X"n, Position(1)),
		Y(:WX0CFM, Position(1)),
		Y(:"OOC - WX0CFM"n, Position(1)),
		Y(:WX0cow, Position(1)),
		Y(:"OOC - WX0cow"n, Position(1))
	),
	Elements(
		Line(
			X,
			Y(1),
			Y(2),
			Y(3),
			Y(4),
			Y(5),
			Y(6),
			Y(7),
			Y(8),
			Y(9),
			Y(10),
			Y(11),
			Y(12),
			Y(13),
			Y(14),
			Y(15),
			Y(16),
			Y(17),
			Y(18),
			Y(19),
			Y(20),
			Y(21),
			Y(22),
			Legend(16),
			Error Interval("None"),
			Missing Values("No Connection")
		)
	),
	SendToReport(
		Dispatch({}, "Row", ScaleBox, {Min(0), Max(1136), Inc(10), Minor Ticks(4), Label Row(Label Orientation("Angled"))}),
		Dispatch({}, "400", ScaleBox,
			{Legend Model(
				16,
				Properties(0, {Line Width(1)}, Item ID("wx0b5t", 1)),
				Properties(1, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0b5t", 1)),
				Properties(2, {Line Width(1)}, Item ID("wx0bgw", 1)),
				Properties(3, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0bgw", 1)),
				Properties(4, {Line Width(1)}, Item ID("wx0c0y", 1)),
				Properties(5, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0c0y", 1)),
				Properties(6, {Line Width(1)}, Item ID("wx0c0z", 1)),
				Properties(7, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0c0z", 1)),
				Properties(8, {Line Width(1)}, Item ID("wx0cfl", 1)),
				Properties(9, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0cfl", 1)),
				Properties(10, {Line Width(1)}, Item ID("wx0cfn", 1)),
				Properties(11, {Line Color(3), Line Width(1)}, Item ID("OOC - wx0cfn", 1)),
				Properties(12, {Line Width(1)}, Item ID("WX0AZN", 1)),
				Properties(13, {Line Color(3), Line Width(1)}, Item ID("OOC - WX0AZN", 1)),
				Properties(14, {Line Width(1)}, Item ID("WX0c03", 1)),
				Properties(15, {Line Color(3), Line Width(1)}, Item ID("OOC - WX0c03", 1)),
				Properties(16, {Line Width(1)}, Item ID("WX0C0X", 1)),
				Properties(17, {Line Color(3), Line Width(1)}, Item ID("OOC - WX0C0X", 1)),
				Properties(18, {Line Width(1)}, Item ID("WX0CFM", 1)),
				Properties(19, {Line Color(3), Line Width(1)}, Item ID("OOC - WX0CFM", 1)),
				Properties(20, {Line Width(1)}, Item ID("WX0cow", 1)),
				Properties(21, {Line Color(3), Line Width(1)}, Item ID("OOC - WX0cow", 1))
			)}
		),
		Dispatch({}, "graph title", TextEditBox, {Set Text("Reproducible example")}),
		Dispatch({}, "X title", TextEditBox, {Set Text("Time [min]")}),
		Dispatch({}, "Y title", TextEditBox, {Set Text("Y")}),
		Dispatch({}, "Graph Builder", FrameBox, {Background Color(-14605016), Marker Size(0), Marker Drawing Mode("Normal")}),
		Dispatch({}, "400", LegendBox,
			{Legend Position({16, [0, -1, 1, -1, 2, -1, 3, -1, 4, -1, 5, -1, 6, -1, 7, -1, 8, -1, 9, -1, 10, -1]})}
		)
	)
);

s = gb << get script;
l_model = Try(Arg(Extract Expr(s, Legend(Wild()))), .);


hide_column_line = function({gb, cols_to_show}, {Default Local},
	l_server = gb << Get Legend Server;
	server_items = (lgnd << Get Legend Items)[1];

	l_display = gb << Get Legend Display;
	display_items = l_display << get items;

	For(i = 1, i <= N Items(server_items), i++,
		item = Eval(EvalExpr(l_server << Get Legend Item(Expr(l_model), Expr(i))));
		If(!Contains(cols_to_show, item << Get Label),
			item << Set Properties({Transparency(0)});
			display_items[i] << Set Visible(0);
		,
			item << Set Properties({Transparency(1)});
			display_items[i] << Set Visible(1);
		);
	);
);

wait(1);
hide_column_line(gb, cols[1]);
wait(1);
hide_column_line(gb, cols[3::6]);
wait(1);
hide_column_line(gb, cols);

[#9]

Thank you very much !!! That works now !
