Contour Plot arrange by Row

I want to plot contour plot arrange by row group by Wafer ID. By default, the graph will be arrange in columns. Is there a way to display the graph in n rows and n columns that i like?

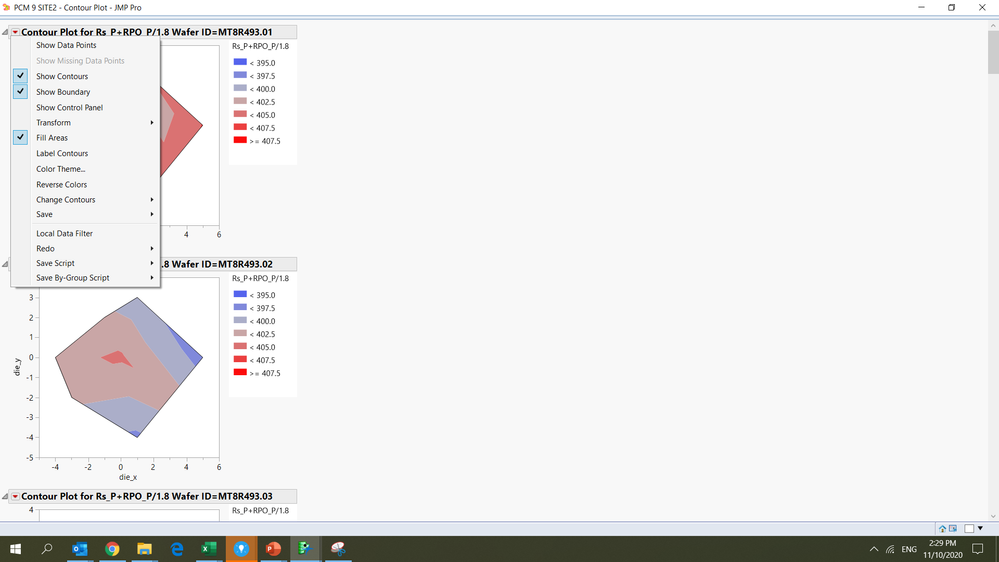

contour plot arrange by row.png

1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted
txnelson
Super User

Re: Contour Plot arrange by Row

Here are 2 ways to do it.  The first is to place a simple window around the output and specify to use a H List Box() to arrange the different graphs.

The second is to use Graph Builder, and the built in capabilities of that platform.



Names Default to Here(1);
dt = Open("$SAMPLE_DATA/semiconductor capability.jmp");

New Window( "horizontal",
	H List Box(
		Contour Plot(
			X( :PNP1, :PNP2 ),
			Y( :NPN1 ),
			Show Data Points( 0 ),
			Fill Areas( 0 ),
			Label Contours( 0 ),
			Transform( "Range Normalized" ),
			Specify Contours(
				Min( 110 ),
				Max( 122 ),
				N( 7 )
			),
			by( :site )
		)
	)
);

// or with Graph Builder
Graph Builder(
	Size( 1009, 492 ),
	Show Control Panel( 0 ),
	Variables( X( :PNP2 ), Y( :PNP1 ), Group X( :SITE ), Overlay( :NPN1 ) ),
	Elements(
		Points( X, Y, Legend( 3 ) ),
		Smoother( X, Y, Legend( 4 ) ),
		Contour( X, Y, Legend( 5 ) )
	)
);
Jim

View solution in original post
