Changing the names in legend of plot

[#1]

Hi

I have 6 variables: Step1=12, Step2=13, Step3=10, A=500, B=900, C=1300.

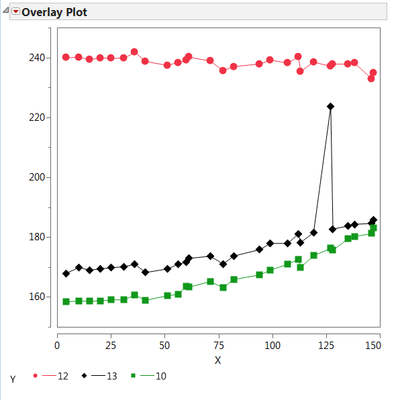

and I'm ploting col "x" vs first three variables ,that are names of columns, like below; but I want to change the name of them to variables A, B, and C in the legend of plot. (see pic). how can I do that? how can I change :Name("12") to show 500 (the value of A) instead of 12?

Thanks

t = current data table();

Overlay Plot(

X( :x ),

Y( Column( dt, Char(Step1)), Column( dt, Char(Step2)), Column( dt, Char(Step3)) ) ,

Connect Points( 1 ),

:Name("12")(Connect Color( 3), Overlay Marker Color( 3 ),

Overlay Marker( 12 ), Line Width( "Thin" )),

:Name("13")(Connect Color( 0 ), Overlay Marker Color( 0 ),

Overlay Marker( 16 ), Line Width( "Thin" )),

:Name("10")(Connect Color( 20 ), Overlay Marker Color( 20 ),

Overlay Marker( 15 ), Line Width( "Thin" )));

[#2]

Oh, yes you are right, this seems to be a not intended behaviour. Could you report please to support@jmp.com with reference to this discussion. Thanks

[#3]

Yes, I think so.

When I have huge set of points. Graph Builder doesn't show one to one point connection (atleast I don't know of it).

I have tried to show what I mean in the attached example.

[#4]

Interesting, the script in your table does provide a different behaviour (bug-like) than when I start from scratch. This is true for JMP 12.2. and JMP 13.1. So please provide this also to our support team. Xan, did I miss something?

GB_Overlay2.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 1:23

Loaded: 0%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -1:23

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

So,  one workaround is to create it manually. May not the best, but for now ...

[#5 · Accepted solution]

Thanks for providing the larger table. To keep the A and B lines separate, use the Overlay role. Here's a script.

Graph Builder(
	Variables( X( :Column 1 ), Y( :Pressure ), Overlay( :Chamber )),
	Elements( Points( X, Y, Legend( 7 ) ), Line( X, Y, Legend( 8 ) ) )
)

[#6]

---

@sibanibisoyi wrote:

3) I know how to change the legends in Graph Builder.But as mentioned that I need to use Overlay Plot because I need connecting lines between the Points which is not possible in Graph Builder (as far as I know).

You can combine elements in Graph Builder by holding down the shift key when you select them in the top row of element icons. So turn on Points and then shift-click on Line. In the properties for Line there is a checkbox called "Row order" which will connect the point row-by-row if that's what you're going for. Otherwise it will connect them by unique x values.

[#7]

To me it's not fully clear how the data table looks like which is mentioned above. If we could have an example table it should be not that hard.
