Capability from a bivariate regression

Knekse
Level II

Hi



I read this post by Phil Kay, and it helped we some of the way towards my goal:



https://community.jmp.com/t5/Discussions/Tolerance-Interval-for-Regression/m-p/302845



Would it also be possible to calculate an expected capability from a bivariate regression, if I have a lower and upper spec limit?



Example: I have data measured for and Response(Y) at several different temperature levels (X) and I want to predict what the capability of the response is at a higher temperature.



Thanks

5 REPLIES 5
Knekse
Level II


Re: Capability from a bivariate regression

I was just sitting here, looking at the numbers, and maybe I have an idea. What if:



  1. I use the regression line to calculate the Response(Y) at the higher temperature (let's say 60degC):  Y(60)
  2. I "transform" my spec limits to a set of spec limits for the residuals: Ymin - Y(60) and Ymax - Y60)
  3. Now, I can calculate the capability with the "residual spec limits"

Or, something completely different?

P_Bartell
Level VIII


Re: Capability from a bivariate regression

Here's what I suggest: Recreate the model in the Fit Model Standard Least Squares platform, then use the simulation capability within the Prediction Profiler to simulate the response for assumed variances of the x values. From there lots of options to export the simulated predictions to the Capability platforms in JMP for additional analysis and visualizations.

Knekse
Level II


Re: Capability from a bivariate regression

Hi P_Bartell



Thank you for the suggestion. In my case, I want to fix the x value (at an extrapolated point) and estimate the mean and variance at this point, and thus the capability. So I am not sure you suggestion would serve the purpose, as I want to see the variation in the other dimension than you suggested. Or?

P_Bartell
Level VIII


Re: Capability from a bivariate regression

The simulator allows you to set any independent variable at any mean and estimated variance. So even if your x set point is extrapolated from your empirical space...the simulator will still work.

Knekse
Level II


Re: Capability from a bivariate regression

I still think that it's not what I am looking for. Allow me to elaborate

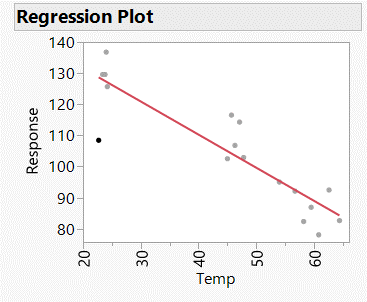

Response(Temp) regression.png

I can fit a model to my Response as a function of the temperature:

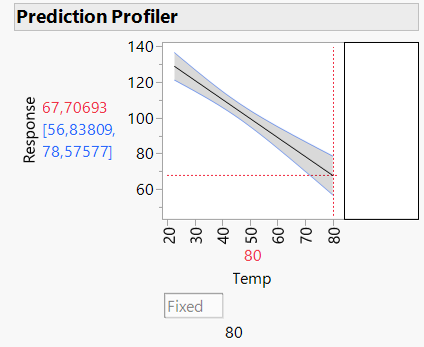

Response(Temp) profiler.png

But I would like to calculate: If I fix the temperature to 80 degrees, what will the distribution of the response be?
