Boxplot with distribution plot like aside in same chart

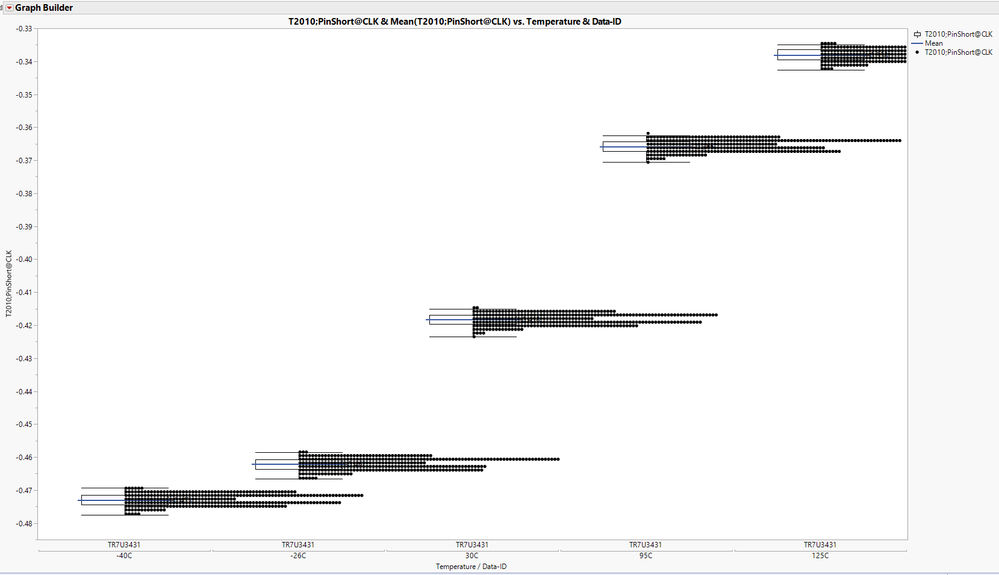

I wondering JMP able to plot boxplot and distribution side by side like the chart i show below? I try to use graph builder, combine boxplot and point plot together. Set the point chart jitter to positive grid, look a bit similar but the jitter point look really aweful, try to use the jitter limit to adjust, but there is no much can do. Any other suggestion that can make the boxplot and distribution plot side by side in better way? Any suggestion welcome. Thanks




0 Kudos
1 ACCEPTED SOLUTION

Accepted Solutions
txnelson
Super User

Re: Boxplot with distribution plot like aside in same chart

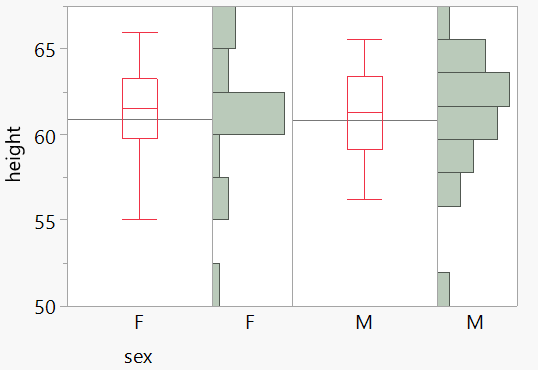

The default box plot with histograms in JMP is:histo1.PNG

By clicking on the red triangle under the output from the Fit Y by X platform, the histograms can be selected.

Additionally, if you get into scripting, you can do just about anything you want, such as the below mock up of one possible style


Jim

View solution in original post

0 Kudos
3 REPLIES 3

Re: Boxplot with distribution plot like aside in same chart

JMP does not create exactly the same chart. Try Analyze > Distribution. It plots the histogram and box plot automatially for each variable you enter in the Y role.

Learn it once, use it forever!
0 Kudos
txnelson
Super User

Re: Boxplot with distribution plot like aside in same chart

The default box plot with histograms in JMP is:histo1.PNG

By clicking on the red triangle under the output from the Fit Y by X platform, the histograms can be selected.

Additionally, if you get into scripting, you can do just about anything you want, such as the below mock up of one possible style


Jim

View solution in original post

0 Kudos
OneNorthJMP
Community Trekker

Re: Boxplot with distribution plot like aside in same chart

This look closer than what i want.

0 Kudos
