Bi-plots with error bars for both axis

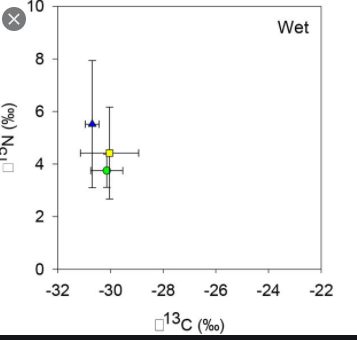

I would like to construct a bi-plot (double plot; two-way distribution), see example below. It would be a central point marking the mean for a given group, with error bars (standard deviation) for both parameters (both axis). I can't find a way to do this easily in jmp, and would appreciate some hints or suggestions. Thanks. Morten, Norway.






2 REPLIES 2
Highlighted
ian_jmp
Staff

Re: Bi-plots with error bars for both axis

Please find attached a very old add-in (from 2006, actually). It's quite likely that there is a much better way now, but this might suffice.

Highlighted

Re: Bi-plots with error bars for both axis

Hi @Jartun ,



This can be done in Graph Builder in  JMP 15 (or JMP 14).



  • Start with a summarize table with these columns: group, mean for x variable, std. dev for x-axis, mean for y variable, std. dev. for y-axis.  I used Big Class.jmp and tabulate to make the summarized table and then converted to a JMP Data Table.




  • Drag  mean for x to x-axis (height) and mean for y to y-axis (weight)

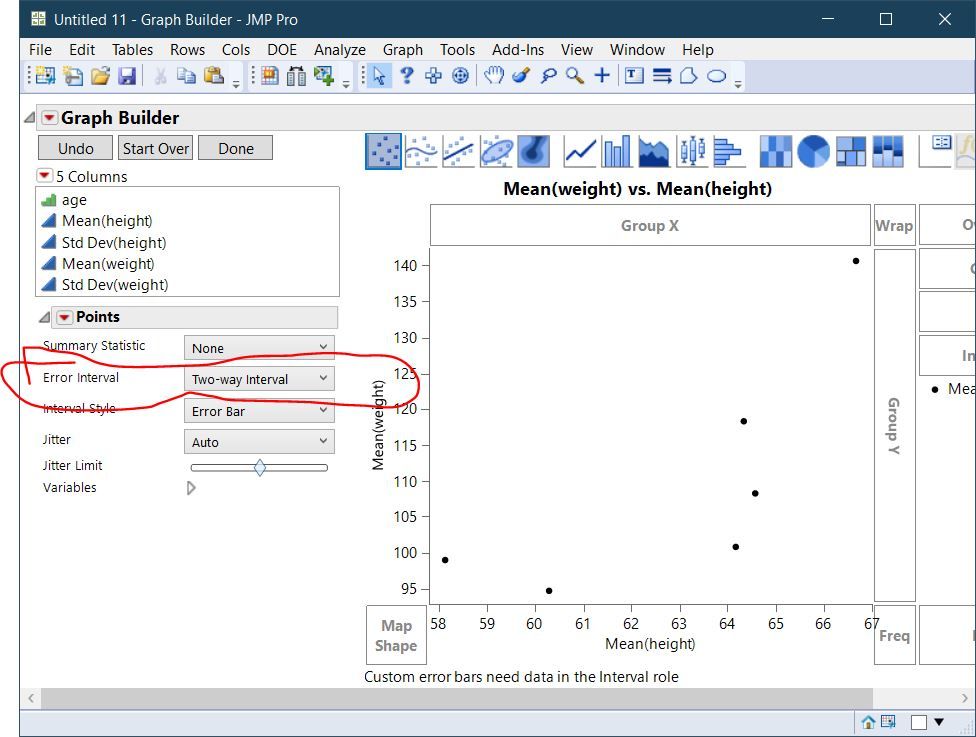

  • Change the Error Interval (called Error Bars in JMP 14) to Two-way Interval


  • Drag Std. Dev. for x-axis to interval box/zone on right.

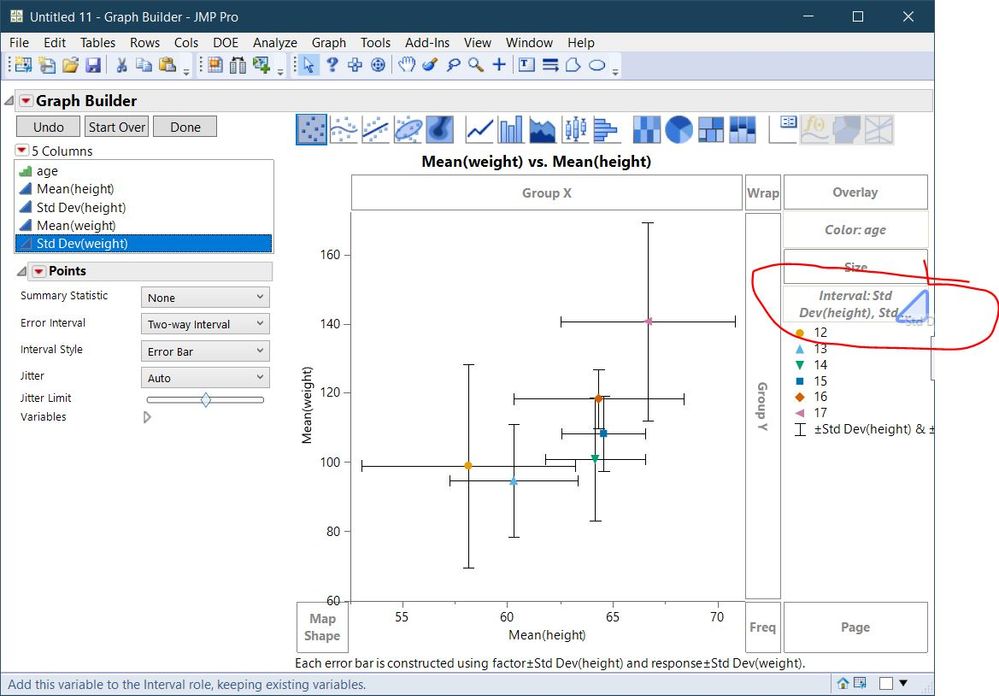

  • Drag Std. Dev. for y-axis to same interval box/zone but just to the right of the x-axis std. dev. (see below picture)

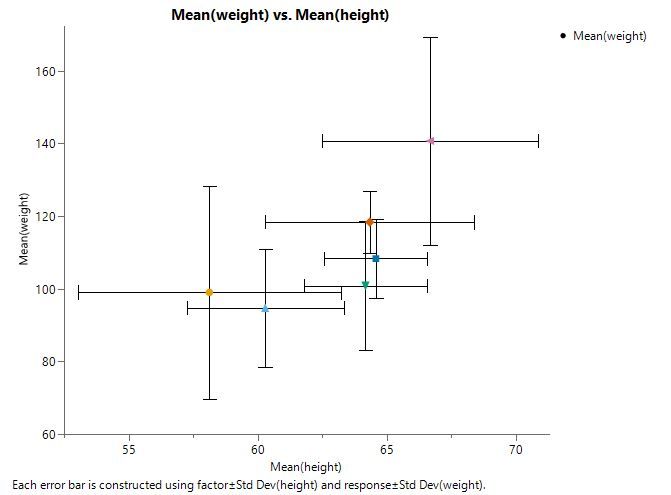

  • Add group to Color zone or use Rows>Color or Mark By Column menu function.  The final plot looks something like this:Graph Builder.jpg

Hope that is what you are looking for.

Best,



Chris Kirchberg
Principal Systems Engineer, Life Sciences - JMP Global Technical Enablement
SAS Institute, Inc. - Denver, CO
Tel: +1-919-531-9927 ▪ Mobile: +1-303-378-7419 ▪ E-mail: chris.kirchberg@jmp.com
JMP – A Division of SAS Institute | www.jmp.com
