Adding and deleting borders of graphs in graph builder

Hello,

I want to tweak a graph to my wishes but I'm not as succesful as I want...

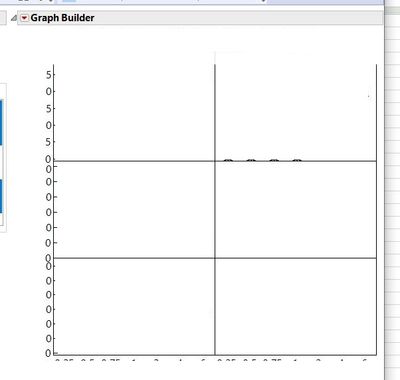

The graph consists of 2 columns.

  1. I would like to get rid of the little grey line on top, seperating the titles of the columns
  2. And I would like to have a black line closing the graph on the top

Is there something in the preferences or may elsewhere that I just didn't find..?

Thanks a lot!



@martindemel




2 ACCEPTED SOLUTIONS

Accepted Solutions
Highlighted

Re: Adding and deleting borders of graphs in graph builder

x group edge is the Group X labeling position above or below the graph. But it helped me to understand what you are looking at and want to change.

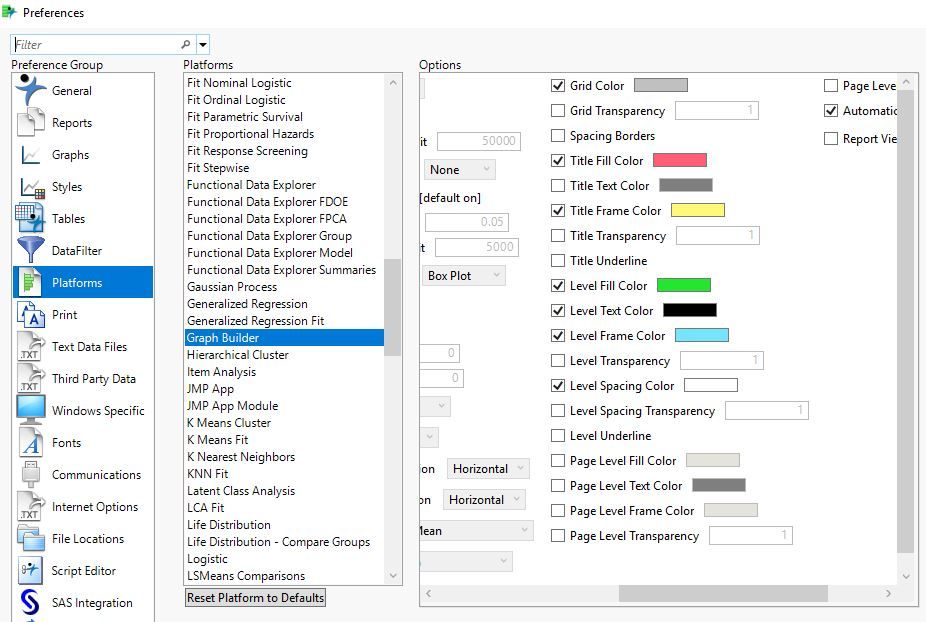

Try the setting in Graph Builder to change the Level Spacing Color to white and you will not see the light grey string in case you have a white background for your window. In the below image I have checked several options which change the coloring for the areas in Graph Builder by setting preferences. The one you need seems to be the "Level Spacing Color".








View solution in original post

Highlighted

Re: Adding and deleting borders of graphs in graph builder

This can be done using the "Spacing Borders" option or via script



dt = Open("$SAMPLE_DATA/Big Class.jmp");
dt << Graph Builder(
	Level Fill Color( "White" ),
	Level Frame Color( "White" ),
	Level Spacing Color( "White" ),
	Level Underline( 1 ),
	Page Level Underline( 0 ),
	Variables( X( :weight ), Y( :height ), Group X( :sex ) ),
	Elements( Points( X, Y, Legend( 1 ) ), Smoother( X, Y, Legend( 2 ) ) ),
	SendToReport(
		Dispatch(
			{},
			"Graph Builder",
			FrameBox,
			{Left( 1 ), Right( 0 ), Top( 1 ), Bottom( 1 )} //here you specify where a border appears
		),
		Dispatch(
			{},
			"Graph Builder",
			FrameBox( 2 ),
			{Left( 0 ), Right( 1 ), Top( 1 ), Bottom( 1 )} //here you specify where a border appears
		)
	)
);

View solution in original post

6 REPLIES 6
Highlighted

Re: Adding and deleting borders of graphs in graph builder

Hi,



not sure I understand what you want to achieve, but I try:

  • Under Menu -> Preferences -> Styles -> "Tick Marks and Grid Lines" you may check "Frame Border" if not done already.
  • Your image seems like you have exported it and the result is not as you saw it in JMP, is that correct? If so than there may be various causes you might want to check with Tech Support. Starting from settings, through rendering, the final type of document you put it in, ...
  •  If it is directly in JMP, please check the above preferences as well as in the axis settings if you have added grids.

Best,

Martin

Highlighted
JL_LZH
Level III

Re: Adding and deleting borders of graphs in graph builder

Hello Martin,

thanks for your reply. The graph looks the same in jmp, its a screenshot. I just deleted the data with an imaging software.

The frame border option is already active. But it seems that its not working with columns.

The small grey line seperating the column titles is called x group edge. When I right click it, I can switch between having it on top of the graph or on the bottom. But I can't find a way to change the colour.

If I find the time I will try to build a better example.



Highlighted

Re: Adding and deleting borders of graphs in graph builder

x group edge is the Group X labeling position above or below the graph. But it helped me to understand what you are looking at and want to change.

Try the setting in Graph Builder to change the Level Spacing Color to white and you will not see the light grey string in case you have a white background for your window. In the below image I have checked several options which change the coloring for the areas in Graph Builder by setting preferences. The one you need seems to be the "Level Spacing Color".








View solution in original post

Highlighted
JL_LZH
Level III

Re: Adding and deleting borders of graphs in graph builder

That worked! I needed to redo the graph but now the grey line is gone. Thanks a lot!

Still wondering if I can get a black border closing the graph to the top.

Highlighted

Re: Adding and deleting borders of graphs in graph builder

This can be done using the "Spacing Borders" option or via script



dt = Open("$SAMPLE_DATA/Big Class.jmp");
dt << Graph Builder(
	Level Fill Color( "White" ),
	Level Frame Color( "White" ),
	Level Spacing Color( "White" ),
	Level Underline( 1 ),
	Page Level Underline( 0 ),
	Variables( X( :weight ), Y( :height ), Group X( :sex ) ),
	Elements( Points( X, Y, Legend( 1 ) ), Smoother( X, Y, Legend( 2 ) ) ),
	SendToReport(
		Dispatch(
			{},
			"Graph Builder",
			FrameBox,
			{Left( 1 ), Right( 0 ), Top( 1 ), Bottom( 1 )} //here you specify where a border appears
		),
		Dispatch(
			{},
			"Graph Builder",
			FrameBox( 2 ),
			{Left( 0 ), Right( 1 ), Top( 1 ), Bottom( 1 )} //here you specify where a border appears
		)
	)
);

View solution in original post

Highlighted
JL_LZH
Level III

Re: Adding and deleting borders of graphs in graph builder

Hello Martin,

Spacing Borders worked perfectly! Thanks a lot for your efforts!
