Adding an image from a data table to output

With a JSL script, I'm trying to construct a display that will show a small table of 4 rows and 2 columns. The rows in the first column of this table will be the names of 4 columns of the data table. The values in the 2nd column of my output will be pulled from the 4 columns of my data table, depending on selection criteria that I will program into the script. Along with the table, I want to display an image which is stored in another column of my data table. This column is formatted as an expression column. I know how to get images into the column, but how do I reference those images in a JSL script?



Thanks in advance!



Bruce

1 ACCEPTED SOLUTION

Accepted Solutions
gzmorgan0

Super User

Joined:

Jul 25, 2016

Solution

Re: Adding an image from a data table to output

From my first response,  @pmroz and @Craige_Hales responses, you can see that there are numerous JMP options for creating displays. What you script depends upon what characteristics you want for the final "report".

  • Will the person viewing the report be using JMP to open a Journal, a table, a .jrp file, an application? Do you want dynamic controls like a next button, or selection boxes, or just a long display with simple scrolling?
  • Or will the person viewing not use JMP and they will be using a webpage, a PPT file, a PDF or WORD doc?

When I have a large number of displays (>20) and the consumer of the report will not be using JMP, I create a custom PPTX report or create a web report with a list and a dynamic selector of names to display the picture (which requires a little html scripting).  When the consumer will be using JMP, I use dynamic controls with buttons and pic lists or trees.



Attached is another script  (TableBoxwithPics.jsl) that creates of a JMP report that can be journaled or saved in an alternate static output.








6 REPLIES
gzmorgan0

Super User

Joined:

Jul 25, 2016

Re: Adding an image from a data table to output

You did not mention what type of container you will be using. If a Window with a table, JMP 14 has a column property called an Event Handler. Also there was an interesting discussion regarding hyperlinks in a Text Box Hyperlinks-in-Text-Box.

I attached a script with and example of a table with a picture and an Event Handler. The blog would not allow me to add a file with extension .jsl, so I added a .txt.  Download the  file and drop the .txt extension to open in JMP.



The JMP sample datatable SAS Offices.jmp provides another example of an Event Handler for a data table.

bwwhite

Community Trekker

Joined:

Jun 18, 2012

Re: Adding an image from a data table to output

I have my images in a JMP data table using a script similar to the one you attached. However, now I want to output the images into some type of JMP report. I'm not sure what kind of container would I use? If I just wanted a simple table with the name of the image and the image itself, how would that script segment look?



Thanks again!



Bruce

pmroz

Super User

Joined:

Jun 23, 2011

Re: Adding an image from a data table to output

Check out Justin's and my presentation at the latest Discovery conference in Cary.  One of the scripts shows how to display an image stored in a table cell.

Highlighted
Craige_Hales

Staff

Joined:

Mar 21, 2013

Re: Adding an image from a data table to output





dt = Open( "$sample_data/big class families.jmp" );
New Window( "people",
	vlistbox(
	picholder = Border Box( Text Box( "" ) ),
	namebox = textbox(""),
	Button Box( "next", advance() )
	)
);
curRow = 0;
advance = Function( {},
	{},
	curRow += 1;
	If( curRow > N Rows( dt ),
		curRow = 1
	);
	(picholder << child) << delete;
	picholder << append( dt:picture[curRow] );
	namebox<<settext(dt:name[curRow]);
);
advance(); // initialize first image in window

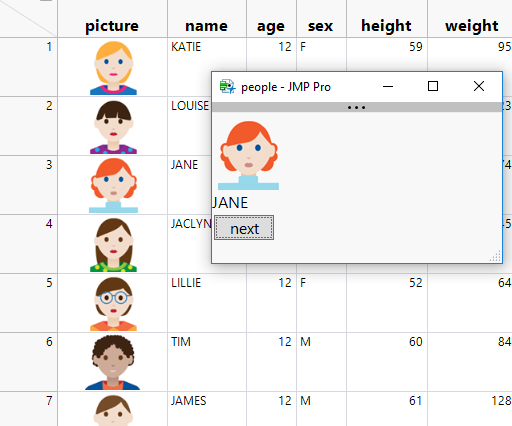

Capture1.PNGWindow with picture from data table



Craige
gzmorgan0

Super User

Joined:

Jul 25, 2016

Solution

Re: Adding an image from a data table to output

From my first response,  @pmroz and @Craige_Hales responses, you can see that there are numerous JMP options for creating displays. What you script depends upon what characteristics you want for the final "report".

  • Will the person viewing the report be using JMP to open a Journal, a table, a .jrp file, an application? Do you want dynamic controls like a next button, or selection boxes, or just a long display with simple scrolling?
  • Or will the person viewing not use JMP and they will be using a webpage, a PPT file, a PDF or WORD doc?

When I have a large number of displays (>20) and the consumer of the report will not be using JMP, I create a custom PPTX report or create a web report with a list and a dynamic selector of names to display the picture (which requires a little html scripting).  When the consumer will be using JMP, I use dynamic controls with buttons and pic lists or trees.



Attached is another script  (TableBoxwithPics.jsl) that creates of a JMP report that can be journaled or saved in an alternate static output.








bwwhite

Community Trekker

Joined:

Jun 18, 2012

Re: Adding an image from a data table to output

Thanks to all the replies I got to this post. Each reply helped me learn more about JMP and about how to get to my final solution. I had to choose one to accept as the solution and it was the one that most directly resembles my final result.



Bruce
