graphique

[#1]

bonjour,

j'ai superposé 3 variables sur l'axe Y.

est-il possible d'ajouter un trait vertical pour relier le mini au maxi pour chaque identifiant de l'axe X ? Il faudrait qu'on puisse choisir la couleur, l'épaisseur et la transparence du trait vertical.

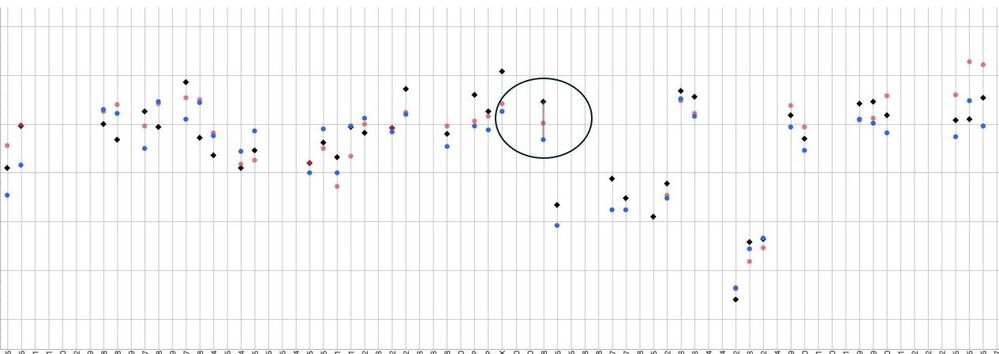

voir l'image avec un exemple dans le cercle.

cordialement

[#2]

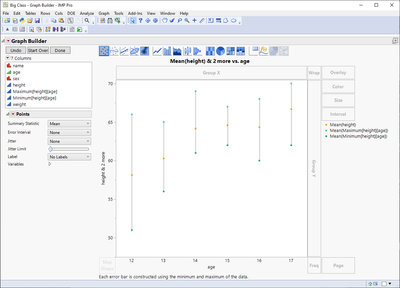

You could try using Range Error Bar

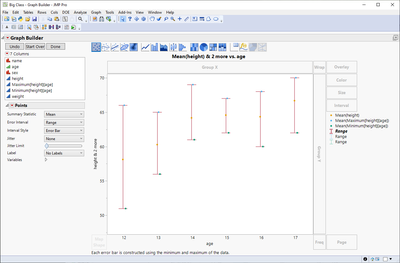

Or you could add Interval Bar chart and disable the "middle" value (this might require some extra calculations / columns)

And then there is of course scripting option using graphic script which is more complicated

[#3]

Here is one possible example for scripted option

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");

dt << New Formula Column(Operation(Category("Aggregate"), "Minimum"), Columns(:height), Group By(:age));
dt << New Formula Column(Operation(Category("Aggregate"), "Maximum"), Columns(:height), Group By(:age));

gb = dt << Graph Builder(
	Size(525, 448),
	Show Control Panel(0),
	Variables(
		X(:age),
		Y(:height),
		Y(:"Maximum[height][age]"n, Position(1)),
		Y(:"Minimum[height][age]"n, Position(1))
	),
	Elements(Points(X, Y(1), Y(2), Y(3), Legend(3), Summary Statistic("Mean")))
);



segs = Report(gb)[FrameBox(1)] << Find Segs();
ys = [];
xs = {};
For Each({seg}, segs,
	If(seg << Class Name == "MarkerSeg",
		ys = ys |/ (seg << get y values)`;
		Insert Into(xs, seg << get x values);
	)
);

For Each({{ymin, ymax, x}}, Across(V Min(ys), V Max(ys), xs[1]),
	Eval(EvalExpr(
		Report(gb)[FrameBox(1)] << Add Graphics Script(
			"Back",
			Pen Color("Purple");
			Pen Size(20);
			Transparency(0.2);
			V Line(Expr(x), Expr(ymin), Expr(ymax));
		);
	));
);

Write();

This "simple" example won't work with filters.

[#4]

And then there is Marker Draw Expr where you can control the color and transparency from legend and width from the draw expression

View more...

Names Default To Here(1);

dt = Open("$SAMPLE_DATA/Big Class.jmp");

dt << New Formula Column(Operation(Category("Aggregate"), "Minimum"), Columns(:height), Group By(:age));
dt << New Formula Column(Operation(Category("Aggregate"), "Maximum"), Columns(:height), Group By(:age));

gb = dt << Graph Builder(
	Size(746, 818),
	Show Control Panel(0),
	Variables(
		X(:age),
		Y(:height),
		Y(:"Maximum[height][age]"n, Position(1)),
		Y(:"Minimum[height][age]"n, Position(1))
	),
	Elements(
		Points(X, Y(1), Y(2), Y(3), Legend(3), Summary Statistic("Mean")),
		Points(X, Y(1), Legend(4), Summary Statistic("Mean"))
	),
	Local Data Filter(Add Filter(columns(:age), Display(:age, N Items(6)))),
	SendToReport(
		Dispatch({}, "400", ScaleBox,
			{Legend Model(
				4,
				Properties(
					0,
					{Line Color(35), Transparency(0.2)},
					Item ID("Mean(height)", 1)
				)
			)}
		)
	)
);

frame = Report(gb)[FrameBox(1)];
seg = (frame << FindSeg(Marker Seg(4)));
seg << Set Marker Draw Expr(
	Function({this seg, this row, x, y, size, row state},
		size = 0.1;
		Rect(
			x - size,
			:"Maximum[height][age]"n[this row],
			x + size,
			:"Minimum[height][age]"n[this row],
			1
		);
	);
);
