Awooley
Level I

Wrap Text in HTML

Hi Community,



The script below creates a journal with wrapped text. However, when I save this as an HTML file, the text is no longer wrapped. How can I maintain formatting from the journal to an HTML file?



	win= New Window("Metrics",
		<<journal,
		hlb = H List Box(
			 Spacer Box(size(400,1000)),
			 V List Box( Spacer Box(size(10,10)), cb = H Center Box(), Spacer Box()  ),
			 Spacer Box(size(400,1000))
		 )
	);

	cb<<append(tb1=text box("Metrics Generated "||char(format(today(),"m/d/y"))));
	tb1<<set font size(28)<< Justify Text( "Center" )<<set wrap width(1000);

	current Journal()<<save html();
2 REPLIES 2
Craige_Hales
Super User

Re: Wrap Text in HTML

windows, 16.2 appears to break the text in the same locations. I used different font sizes and different pixel lengths for the wrap point for a quick test.

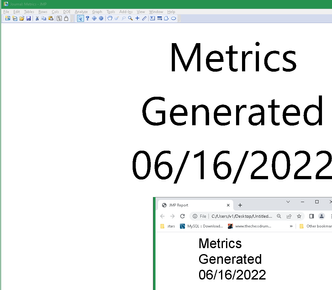

journal behind, browser in frontjournal behind, browser in front

The centering is wrong, but the wrapping seems to work.

You can force line breaks with \!n (an escaped newline in a JSL string).







Craige

Re: Wrap Text in HTML

Using interactive html here will work better than static html.

This can be done by changing the last line in the script to

current Journal()<<save Interactive html();
