twillkickers
Level III

Show means on box plot in graph builder

Is there any way to show and connect means on a box plot in graph builder? Is there also a way to show the diamonds that point to the mean without bottom and top 5% of outliers?

19 REPLIES 19
gzmorgan0
Super User (Alumni)

Re: Show means on box plot in graph builder

Thank you, Dan. I never investigated Float bar type.  Your post got me thinking of alternative methods to add the means and hav them appear at the bottom or the top of the graph.

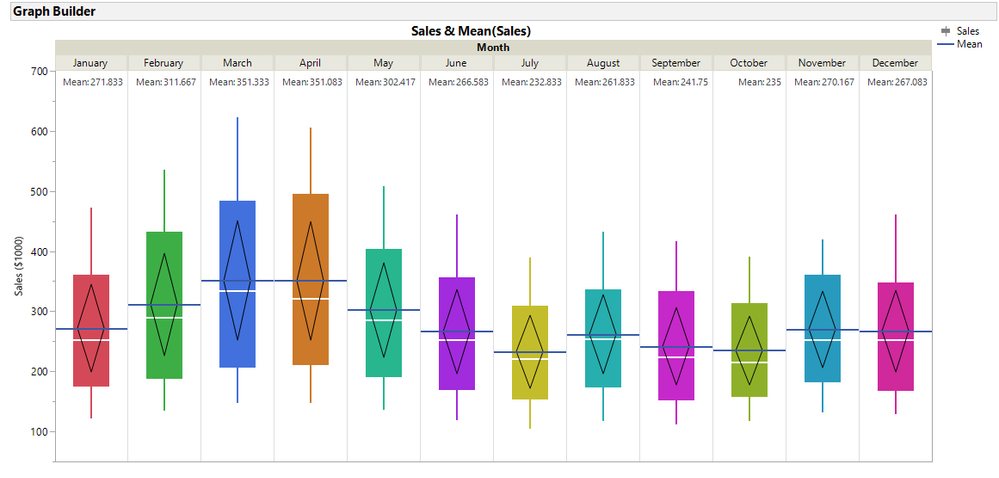

One method was interesting but messy and changed the original table. [See *** below]. Then I notoced that JMP has a new element called a Caption Box.  It is very cool, but each Caption Box seems to allow only one caption per FrameBox. This can be easy by making the categorical X-axis the X Group variable.  See the picture and script. However, now the connected means gets tough.   This might be a nice wish list item for future versions: add a caption box option for nominal X-axis plots. So for boxplots, one option could be the Five number Summary another N, Mean, Std dev.




gb2 = dt << Graph Builder(
	Size( 1065, 516 ),
	Show Control Panel( 0 ),
	Variables( Y( :Sales ), Group X( :Month ) ),
	Elements(
		Box Plot( Y, Legend( 6 ), Box Style( "Solid" ) ),
		Line( Y, Legend( 7 ) ),
		Caption Box( Y, Legend( 9 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"Sales",
			ScaleBox,
			{Min( 50 ), Max( 700 ), Inc( 100 ), Minor Ticks( 1 )}
		),

	)
);
bpseg = gb2 << Xpath("//BoxPlotSeg");
bpseg << {Box Style( "Solid" ), Confidence Diamond( 1 ), Fences( 0 )};

//if you want to color each by month
for(i=1, i<=nitems(bpseg), i++,
 bpseg[i] << Fill Color(Color Of(As Row State(cc[i])))
);

The full script is attached.

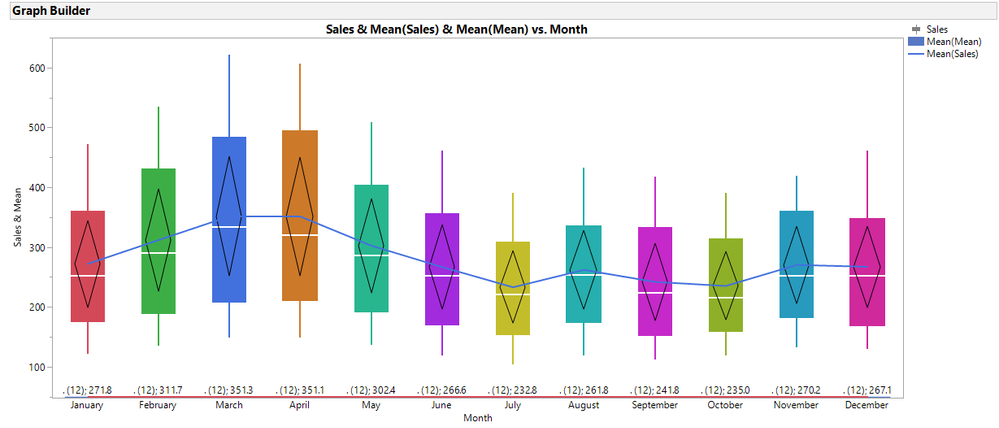

***Method takes some work all UI. I might do this once.  Scripting seems easier, especially if the Caption Box wish

  • Concatenate the original table and the table summary.
  • Add a column called Means that is really the positon where you want the means to appear.
  • Make the Mean(Sales) column a label.
  • Plot both Sales and Means versus Month
  • Move Mean sales to the right and align tick marks
  • Make the changes as shown previously for the left axis (chaging points to the boxplot, add a line)
  • Change the Points on the right to a bar style single and Label ("Label by Row")


Thomas1
Level V

Re: Show means on box plot in graph builder


@gzmorgan0 wrote:

Thank you, Dan. I never investigated Float bar type.  Your post got me thinking of alternative methods to add the means and hav them appear at the bottom or the top of the graph.



One method was interesting but messy and changed the original table. [See *** below]. Then I notoced that JMP has a new element called a Caption Box.  It is very cool, but each Caption Box seems to allow only one caption per FrameBox. This can be easy by making the categorical X-axis the X Group variable.  See the picture and script. However, now the connected means gets tough.   This might be a nice wish list item for future versions: add a caption box option for nominal X-axis plots. So for boxplots, one option could be the Five number Summary another N, Mean, Std dev.


@gzmorgan0 wrote:

Thank you, Dan. I never investigated Float bar type.  Your post got me thinking of alternative methods to add the means and hav them appear at the bottom or the top of the graph.



One method was interesting but messy and changed the original table. [See *** below]. Then I notoced that JMP has a new element called a Caption Box.  It is very cool, but each Caption Box seems to allow only one caption per FrameBox. This can be easy by making the categorical X-axis the X Group variable.  See the picture and script. However, now the connected means gets tough.   This might be a nice wish list item for future versions: add a caption box option for nominal X-axis plots. So for boxplots, one option could be the Five number Summary another N, Mean, Std dev.




gb2 = dt << Graph Builder(
	Size( 1065, 516 ),
	Show Control Panel( 0 ),
	Variables( Y( :Sales ), Group X( :Month ) ),
	Elements(
		Box Plot( Y, Legend( 6 ), Box Style( "Solid" ) ),
		Line( Y, Legend( 7 ) ),
		Caption Box( Y, Legend( 9 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"Sales",
			ScaleBox,
			{Min( 50 ), Max( 700 ), Inc( 100 ), Minor Ticks( 1 )}
		),

	)
);
bpseg = gb2 << Xpath("//BoxPlotSeg");
bpseg << {Box Style( "Solid" ), Confidence Diamond( 1 ), Fences( 0 )};

//if you want to color each by month
for(i=1, i<=nitems(bpseg), i++,
 bpseg[i] << Fill Color(Color Of(As Row State(cc[i])))
);

The full script is attached.



***Method takes some work all UI. I might do this once.  Scripting seems easier, especially if the Caption Box wish

  • Concatenate the original table and the table summary.
  • Add a column called Means that is really the positon where you want the means to appear.
  • Make the Mean(Sales) column a label.
  • Plot both Sales and Means versus Month
  • Move Mean sales to the right and align tick marks
  • Make the changes as shown previously for the left axis (chaging points to the boxplot, add a line)
  • Change the Points on the right to a bar style single and Label ("Label by Row")



You can add as much caption boxes as you want by drag & drop. By default they are displaying the mean. This however can be changed to Std Dev, N etc.

However, in case of the mean, I prefer to show him at the box plot.




gb2 = dt << Graph Builder(
	Size( 1065, 516 ),
	Show Control Panel( 0 ),
	Variables( Y( :Sales ), Group X( :Month ) ),
	Elements(
		Box Plot( Y, Legend( 6 ), Box Style( "Solid" ) ),
		Line( Y, Legend( 7 ) ),
		Caption Box( Y, Legend( 9 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"Sales",
			ScaleBox,
			{Min( 50 ), Max( 700 ), Inc( 100 ), Minor Ticks( 1 )}
		),

	)
);
bpseg = gb2 << Xpath("//BoxPlotSeg");
bpseg << {Box Style( "Solid" ), Confidence Diamond( 1 ), Fences( 0 )};

//if you want to color each by month
for(i=1, i<=nitems(bpseg), i++,
 bpseg[i] << Fill Color(Color Of(As Row State(cc[i])))
);

The full script is attached.



***Method takes some work all UI. I might do this once.  Scripting seems easier, especially if the Caption Box wish

  • Concatenate the original table and the table summary.
  • Add a column called Means that is really the positon where you want the means to appear.
  • Make the Mean(Sales) column a label.
  • Plot both Sales and Means versus Month
  • Move Mean sales to the right and align tick marks
  • Make the changes as shown previously for the left axis (chaging points to the boxplot, add a line)
  • Change the Points on the right to a bar style single and Label ("Label by Row")





DANN
Level II

Re: Show means on box plot in graph builder

Hi, I'm having a trouble with making a line connecting all those middle value of each of box plots. What do I do?

Thanks in advance

gzmorgan0
Super User (Alumni)

Re: Show means on box plot in graph builder

@DANN, please specify which version of JMP you are using. Also, if you could use the Graphbuilder menu pull down, and select Save Script, Copy script or save to Script Window and save it and attach in a reply, I can look to see if you missed something.



DANN
Level II

Re: Show means on box plot in graph builder

Hi, I appreciate your comment. I'm a user of JMP Pro 14 and I'm afraid I can't upload the script you said. Because of e-scecurity program in my office, I can't upload any file online. if it's enough to describe what I've done to get a way, then I would. Thanks again.
gzmorgan0
Super User (Alumni)

Re: Show means on box plot in graph builder

Okay, describe your steps. Hopefully, I can see what might be missing.



DANN
Level II

Re: Show means on box plot in graph builder

Okay, thank you for your patience.
There's four column and each has twenty different values.
ex) Design 1 2 3 4
1 a .. .. ..
2 b .. .. ..
3 c
4 ..
5
6
...
20
First, I opend Graph Builder.
Second, I dragged those four columns into x-axis( default box plot ). As a result, I got four different box plots.
at this point, I want to get the line connecting the median of each box plot. What should I do?
Thanks in advance.

gzmorgan0
Super User (Alumni)

Re: Show means on box plot in graph builder

@DANN, are the 4 columns responses (results)  of the experiment or factors (input) for the design?



As your table is setup, it would take a custom function to connect the box medians, since you have no Y variable.  I am going to use the JMP sample data Iris.JMP to emulate your data and the steps.



If using the UI (point and click):

  1. Select Tables > Stack choose your 4 columns as the Stack Columns, change the names  (Data and Label) if you like and select OK. Data will be the values of the 4 columns and Values will be the column names. For your example a better name than label might be Factors or Responses.
  2. Now select Graphs > Graphbuilder and drag Data to the Y column and Label to the X column.
  3. Right Click and select Box Plots and Line and select the Summary Statistics to be Median

Here is a picture of the Iris data table after following the instructions above




Without stacking the data, I can only provide a JSL solution. My earlier post/example had one or multiple columns for Y and and a categorical X (Months).  The elements Line or Smoother need both and X and Y.  There is another graph called the parallel plot that would be appropriate if your 4 columns were responses to an experiment.  Each of the 20 lines would represent a "profile" of each experimental trial's results.



Hope that helps.

DANN
Level II

Re: Show means on box plot in graph builder

@gzmorgan0 Oh My Gosh, It just was A perfect solution that I really needed. Now everything's preperly working with no problem. I really appreciate your kindness and expertise. Thank you so much! Have a great day.

Jeff_Perkinson
Community Manager Community Manager

Re: Show means on box plot in graph builder

This is easily done interactively.



Start with the box plots turned on. Then click and drag the points element into the graph. Change the summary statistic for the points to mean. Then drag the line element into the graph.




-Jeff
