Is is possible in JSL to make a second graph alter its appearance dependant on the selection in another graph?



For instance, if my first graph is Appetizer, and the user selects a salad, I want my second graph to display wines that would pair nicely. I guess this would be like the first graph acting like a Local Data Filter for the second graph.



Thanks

1 ACCEPTED SOLUTION

Accepted Solutions
txnelson

Super User

Joined:

Jun 22, 2012

Solution

Here is an example from

     Help==>Scripting Index=>Data Filter Source Box

that does what you want

Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
New Window( "Selection Filter",
	Data Filter Context Box(
		H List Box(
			Data Filter Source Box(
				Graph Builder(
					Size( 208, 207 ),
					Show Control Panel( 0 ),
					Show Legend( 0 ),
					Variables( X( :age ) ),
					Elements( Bar( X, Legend( 3 ) ) ),
					SendToReport(
						Dispatch(
							{},
							"Graph Builder",
							OutlineBox,
							{Set Title( "Filter" )}
						)
					)
				)
			),
			Platform(
				Current Data Table(),
				Bubble Plot(
					X( :weight ),
					Y( :height ),
					Sizes( :age ),
					Title Position( 0, 0 )
				)
			)
		)
	)
);
Jim
9 REPLIES
txnelson

Super User

Joined:

Jun 22, 2012

Solution

Here is an example from

     Help==>Scripting Index=>Data Filter Source Box

that does what you want

Names Default To Here( 1 );
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
New Window( "Selection Filter",
	Data Filter Context Box(
		H List Box(
			Data Filter Source Box(
				Graph Builder(
					Size( 208, 207 ),
					Show Control Panel( 0 ),
					Show Legend( 0 ),
					Variables( X( :age ) ),
					Elements( Bar( X, Legend( 3 ) ) ),
					SendToReport(
						Dispatch(
							{},
							"Graph Builder",
							OutlineBox,
							{Set Title( "Filter" )}
						)
					)
				)
			),
			Platform(
				Current Data Table(),
				Bubble Plot(
					X( :weight ),
					Y( :height ),
					Sizes( :age ),
					Title Position( 0, 0 )
				)
			)
		)
	)
);
Jim
Martin

Community Trekker

Joined:

Aug 13, 2013

Could there be several nested local filters together, each one further limiting the scope of the data?



Thanks

ian_jmp

Staff

Joined:

Jun 23, 2011

The local data filter has a 'Conditional' option from the red triangle which might be what you want. However, if you mean hierarchical filtering by selections in a graph, then, yes, the example used by Jim above could be extended. Also Dashboard Builder has a two-level graphical filter as a pre-defined template.

ian_jmp

Staff

Joined:

Jun 23, 2011

If you have JMP 13, you could also consider using one of the templates in 'File > New Dashboard' which will do all the work for you.

Martin

Community Trekker

Joined:

Aug 13, 2013

Still trying to figure out the difference between a Dashboard and an Application. I think this is an area where JMP could do A LOT better on documentation and expansion of the software!

ian_jmp

Staff

Joined:

Jun 23, 2011

In terms of the functionality that can be accesssed or constructed, Application Builder offers a superset of Dashboard Builder. But the way this functionality is used is different, in the sense that Dashboard Builder is intended to require no coding at all (hence the template gallery). If you do 'File > New > New Application', you will also see the Dashboard Builder templates, but a lot more besides. As a rule, if Dashboard Builder can do what you want, it's probably easiest to use that.



Could you ellaborate on what you mean by 'expansion of the software', please?

Martin

Community Trekker

Joined:

Aug 13, 2013

I wish I had enough time to describe my ideas on this.



I would like to see the ability to have multiple graphs/tables in a grid format, but with the ability to span multiple columns or rows of the grid. The ability for edges of items to snap to one another would be nice. Another thing is multi-tiered filtering - I love how with multiple graphs JMP highlights across all of them, but I want to be able to have several layers of "local filters", where with each successive selection, the following graphs subset or change.



The dashboards could also be publishable to a website.



There could be significantly more written about these Builders to just explain them to the users of the software, as they are far from intuitive.



Just my two cents.

danielvalente

Joined:

Jul 26, 2013

Dashboard layouts are supported and perserved when saving JMP reports as interactive HTML in JMP 13. On Windows, select File > Save As and select Interactive HTML with Data from the Save as type list. On Macintosh, select File > Export > Interactive HTML with Data.



You can see a set of example dashboards published as interactive HTML with data on the dashboards page on jmp.com.



If you want to create an index page of dashboards you can also investigate the View > Create Web Report functionality



Thank you for the suggestions on improving the snap to grid capabilities of dashboards in the future. It's something that we will consider improving for sure. In the mean time, there is a mode of a running dashboard called summary view (Dashboard LIRT > Report View > Summary), which helps to simplify the layout of the embedded reports in a dashboard and also makes all panes of the dashboard stretchable, even when the platform is not stretchable in the standalone platform (e.g. Distribution).

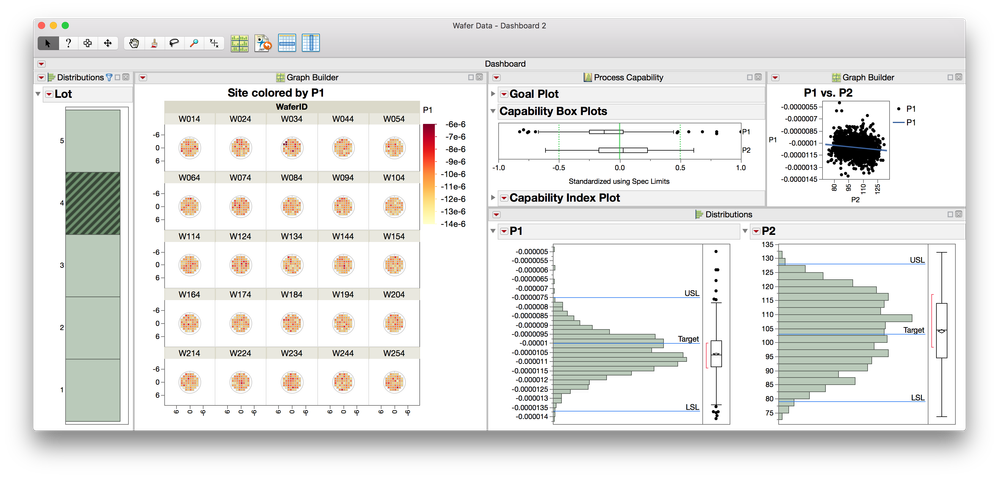

Attached is an example screenshot of a dashboard using the Filter + 1 template from the Dashboard Builder. This dashboard is in summary mode and the three graphs line up in columns. The distribution of 'lot' acts as a selection filter, where selection in the one graph cause a local data filter effect on the Graph Builder graph as well as the two statistical platform outputs from Process Capability and Distribution "downstream".



ExampleDashboardwFilter.png You can arrange the dashboards any way you like -- with graph spanning rows or columns, or with graphs in tabs. For example -- a more complex layout below:ComplexLayoutDashboard.png



Check out the JMP blog: jmp.com/blog
danschikore

Staff

Joined:

Sep 21, 2012

@danielvalente shows how to create grid views and single-level filters in the Dashboard Builder.  You might also consider using Combine Windows to create your initial grid - arrange the windows roughly on the screen and select the menu item Windows > Combine Windows.  The resulting dialog has an option to choose a single report as a filter for the other reports:






Within the Dashboard Builder, you can also create hierarchical filters similar to what you describe as 'layers'.  Start by selecting a container (in this case Splitter Box) that holds all of the filter reports, right-click, and choose 'Use As Selection Filter".






Next, select a box within that filter to choose the next layer of the filter, right-click, and choose 'Use As Hierarchical Selection Filter'.






You do have to arrange the reports in a manner that supports the layering that you want to accomplish.  Similar examples are also presented in the Using Selection Filters in JMP 12.
