Process control graph layout with multiple y variables with limits on one graph

Mar 7, 2018 1:38 AM
(977 views)

Hello,

I am new user of jump.

I have a and b variables that are the same parameter type, but have different control limits. I want to built the process control chart that contains both variables on the same graph in order to spare some space.

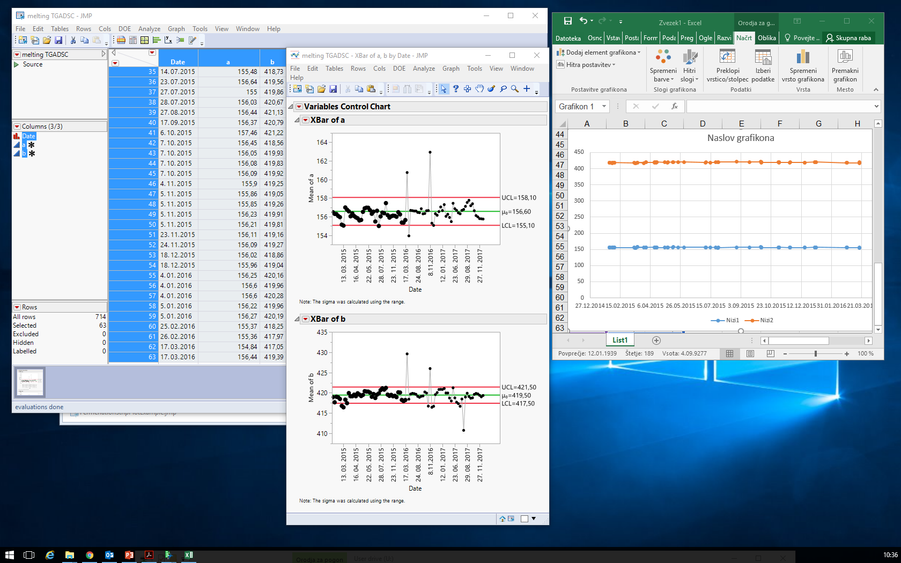

Using x bar in process and control, I can easily built two separate control charts (shown on the left of the image bellow) with all the informations needed.

However, I can not find out how to combine those two diagrams in one, like it is shown on the right side of the image (limits are missing). Can somebody tell me how to do that in jmp, please (I have version 13.1)?

Thank you very much for your help!

3 REPLIES 3

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Process control graph layout with multiple y variables with limits on one graph

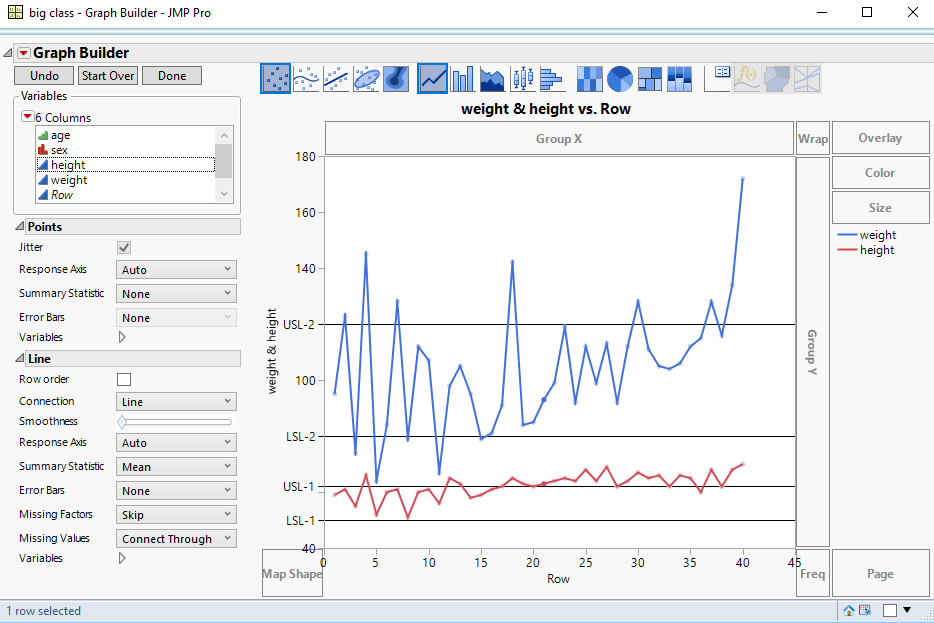

There is not a direct way to place 2 "Control Chart" in the same graph in JMP, however you can easily replicate your right hand chart using Chart Builder, and then add reference lines for the USL, LSL and Target for the separate. Below is an example, using the Big Class sample data table.

Jim

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Process control graph layout with multiple y variables with limits on one graph

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Email to a Friend
- Report Inappropriate Content

Re: Process control graph layout with multiple y variables with limits on one graph

here's how to do it

https://community.jmp.com/t5/Byron-Wingerd-s-Blog/Multiple-Y-Axis-Graphs/ba-p/52000

JMP Systems Engineer, Pharm and BioPharm Sciences
