Parsing lengthy XML file with multiple duplicate tags and multiple nested tags
Created:
Nov 17, 2021 05:58 PM
| Last Modified: Jun 9, 2023 02:05 PM
(415 views)

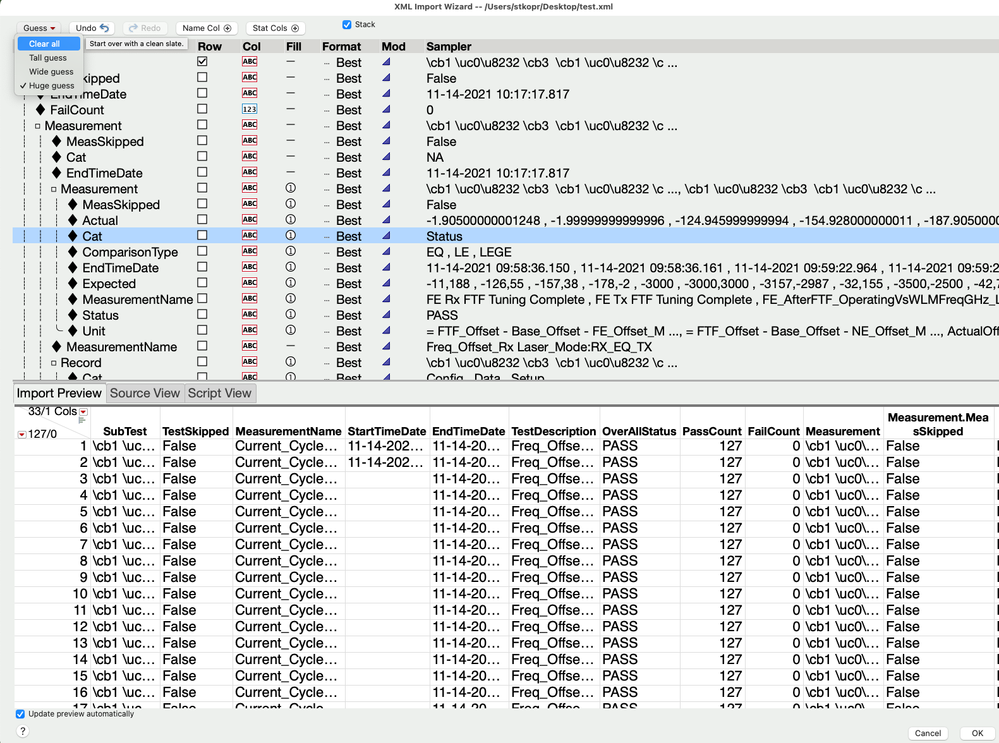

I could use some help trying to use JMP to parse an very lengthy XML file (approximately 225K lines) to create a single data table but have not been able to get very far after several hours of coding a script file and several internet searches. I will place a snippet of the XML file below that contain a section of the file that I am trying to parse to create the table. There are other sections within the XML file that use the Tag "SubTest" but if the "TestDescription" child tag within the "SubTest" tag does not contain the term "Freq_Offset" the script needs to ignore it so the data is not added to the data table. The "SubTest" section has several "Record" children sections at the beginning. These are the parameters used when performing the measurements and need to be added to the Data table. The measurement tags after the initial "Record" tags also needs to be added to the data table along with the test criteria and pass/fail results for each Measurement tag. If someone can help me get started with the structure of the XML Parsing script that creates a smaller version fo the data table I can take it from there and create the rest of the required columns and populate the data from the XML file. I am just getting stuck with trying to create the script that would conditionally add the row to the data table based on the criteria listed above, and to extract the data from the child tags of the "SubTest" tag.
The entire XML file and the beginning of the script file I started (but failed miserably) is attached and contained within the zip file.
Thanks in advance for the assistance.
<SubTest TestSkipped="False">
<MeasurementName>Current_Cycle_Count:1_Test_Run_Count:1_Network_Modulation:_200G_200ZR_oFEC_QPSK_1_S_Client_Rate:CAUI_LESS_FEC_Network_Lane:LANE_0</MeasurementName>
<StartTimeDate>11-14-2021 09:57:49.125</StartTimeDate>
<EndTimeDate>11-14-2021 10:17:17.817</EndTimeDate>
<TestDescription>Freq_Offset_Rx Laser_Mode:RX_EQ_TX</TestDescription>
<StartTimeDate>11-14-2021 09:57:49.125</StartTimeDate>
<OverAllStatus>PASS</OverAllStatus>
<PassCount>127</PassCount>
<FailCount>0</FailCount>
<Measurement MeasSkipped="False">
<MeasurementName>Freq_Offset_Rx Laser_Mode:RX_EQ_TX</MeasurementName>
<Cat>NA</Cat>
<Status>PASS</Status>
<StartTimeDate>11-14-2021 09:57:49.125</StartTimeDate>
<Record>
<RecordName>Current_Cycle_Count</RecordName>
<Value>1</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.125</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Test_Run_Count</RecordName>
<Value>1</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.126</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Network_Modulation</RecordName>
<Value>_200G_200ZR_oFEC_QPSK_1_S</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.127</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Client_Rate</RecordName>
<Value>CAUI_LESS_FEC</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.129</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Network_Lane</RecordName>
<Value>LANE_0</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.130</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Grid_Spacing</RecordName>
<Value>GHZ_25</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.131</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Frequency_Mode</RecordName>
<Value>CHANNEL</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.132</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx Laser_Mode</RecordName>
<Value>RX_EQ_TX</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.133</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Laser_Tuning_Mode</RecordName>
<Value>SYNC</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.134</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Tx_Laser_Frequency_(THz)</RecordName>
<Value>196.125</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.135</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx_Laser_Frequency_(THz)</RecordName>
<Value>196.125</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 09:57:49.136</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 09:58:36.150</EndTimeDate>
<Unit>Tuning duration = 0.0011014 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 09:58:36.161</EndTimeDate>
<Unit>Tuning duration = 0.0011412 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 09:59:22.964</EndTimeDate>
<Unit>Tuning duration = 0.0010715 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 09:59:22.976</EndTimeDate>
<Unit>Tuning duration = 0.001003 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 09:59:42.525</EndTimeDate>
<Unit>Near End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_rxn_demod_lol_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Near End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 09:59:42.526</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 09:59:42.527</EndTimeDate>
<Unit>Near End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:00:01.077</EndTimeDate>
<Unit>Far End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_demod_lock_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Far End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.078</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:00:01.079</EndTimeDate>
<Unit>Far End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>ntwk_laser_tune_cntl__ind_rx_laser_tune_cntl_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>RX_EQ_TX</Actual>
<Expected>RX_EQ_TX</Expected>
<EndTimeDate>11-14-2021 10:00:01.082</EndTimeDate>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>ntwk_laser_tune_cntl__laser_tune_mode_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>SYNC</Actual>
<Expected>SYNC</Expected>
<EndTimeDate>11-14-2021 10:00:01.085</EndTimeDate>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>ntwk_laser_tune_cntl__freq_spec_method_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>CHANNEL</Actual>
<Expected>CHANNEL</Expected>
<EndTimeDate>11-14-2021 10:00:01.087</EndTimeDate>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>tx_chan_cntl__grid_spacing_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>GHZ_25</Actual>
<Expected>GHZ_25</Expected>
<EndTimeDate>11-14-2021 10:00:01.091</EndTimeDate>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>rx_chan_cntl__grid_spacing_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>GHZ_25</Actual>
<Expected>GHZ_25</Expected>
<EndTimeDate>11-14-2021 10:00:01.093</EndTimeDate>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>UUT_Network Config0</RecordName>
<Value>_200G_200ZR_oFEC_QPSK_1_S</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.106</EndTimeDate>
<Cat>Setup</Cat>
</Record>
<Record>
<RecordName>UUT_Client Config0</RecordName>
<Value>CAUI_LESS_FEC</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.108</EndTimeDate>
<Cat>Setup</Cat>
</Record>
<Record>
<RecordName>UUT_Operating Modulation0</RecordName>
<Value>DP_QPSK</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.109</EndTimeDate>
<Cat>Setup</Cat>
</Record>
<Record>
<RecordName>UUT_Operating FEC0</RecordName>
<Value>OFEC</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.110</EndTimeDate>
<Cat>Setup</Cat>
</Record>
<Record>
<RecordName>UUT_Operating Diffen0</RecordName>
<Value>False</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:01.111</EndTimeDate>
<Cat>Setup</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:00:01.138</EndTimeDate>
<Unit>Tuning duration = 0.0011739 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_FTF_Offset_For_Base_OffsetLANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:00:01.140</EndTimeDate>
<Unit>Verifying the Near End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:00:01.149</EndTimeDate>
<Unit>Tuning duration = 0.0010374 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_FTF_Offset_For_Base_OffsetLANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:00:01.155</EndTimeDate>
<Unit>Verifying the Far End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:00:01.164</EndTimeDate>
<Unit>Tuning duration = 0.0019846 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Rx_FTF_Offset_For_Base_OffsetLANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:00:01.169</EndTimeDate>
<Unit>Verifying the Far End Rx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:17.525</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:00:34.661</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196125, Max Freq(THz) = 196.124534, Min Freq(THz) = 196.124497</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:34.671</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:34.679</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:00:51.878</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196125, Max Freq(THz) = 196.124615, Min Freq(THz) = 196.124575</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:51.887</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_BeforeFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.48</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:00:51.911</EndTimeDate>
<Unit>Check if Near End tx_freq_1__freq_thz is less than 1.5GHz apart from WLM measured freq (per STP)</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_BeforeFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.4</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:00:51.912</EndTimeDate>
<Unit>Check if Far End tx_freq_1__freq_thz is less than 1.5GHz apart from WLM measured freq (per STP)</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_BaseOffset</RecordName>
<Value>80</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:51.913</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_Operating_Freq_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>196.125</Actual>
<Expected>196.124,196.126</Expected>
<EndTimeDate>11-14-2021 10:00:51.934</EndTimeDate>
<Unit>tx_freq_1__freq_thz</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_Operating_Freq_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>196.125</Actual>
<Expected>196.124,196.126</Expected>
<EndTimeDate>11-14-2021 10:00:51.935</EndTimeDate>
<Unit>tx_freq_1__freq_thz</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>Rx_Operating_Freq_Pre_Reg_Update_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>196.125</Actual>
<Expected>196.125</Expected>
<EndTimeDate>11-14-2021 10:00:51.940</EndTimeDate>
<Unit>rx_freq_1__freq_thz before the Rx Frequency Register is updated</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>Rx_Operating_Freq_Post_Reg_Update_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>196.125</Actual>
<Expected>196.125</Expected>
<EndTimeDate>11-14-2021 10:00:53.025</EndTimeDate>
<Unit>rx_freq_1__freq_thz after the Rx Frequency Register is updated</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>Tx_FTF_Offset_(MHz)</RecordName>
<Value>6000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:53.026</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx_FTF_Offset_(MHz)</RecordName>
<Value>6000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:00:53.027</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>FreqOffset</RecordName>
<Value>6000</Value>
<MeasDescription>Frequency Offset</MeasDescription>
<EndTimeDate>11-14-2021 10:00:53.239</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:01:39.435</EndTimeDate>
<Unit>Tuning duration = 0.002132 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>6000</Actual>
<Expected>6000</Expected>
<EndTimeDate>11-14-2021 10:01:39.452</EndTimeDate>
<Unit>Verifying the Near End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:01:59.523</EndTimeDate>
<Unit>Near End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_rxn_demod_lol_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Near End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:01:59.524</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:01:59.525</EndTimeDate>
<Unit>Near End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:01:59.536</EndTimeDate>
<Unit>Tuning duration = 0.0011099 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:01:59.547</EndTimeDate>
<Unit>Tuning duration = 0.0020992 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5921</Actual>
<Expected>5865,5976</Expected>
<EndTimeDate>11-14-2021 10:02:25.618</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, and 5921 Values Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5841</Actual>
<Expected>5500,6500</Expected>
<EndTimeDate>11-14-2021 10:02:25.646</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:03:11.058</EndTimeDate>
<Unit>Tuning duration = 0.0019701 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>6000</Actual>
<Expected>6000</Expected>
<EndTimeDate>11-14-2021 10:03:11.064</EndTimeDate>
<Unit>Verifying the Far End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:03:11.074</EndTimeDate>
<Unit>Tuning duration = 0.0011227 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:03:31.076</EndTimeDate>
<Unit>Far End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_demod_lock_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Far End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:03:31.077</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:03:31.078</EndTimeDate>
<Unit>Far End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-19</Actual>
<Expected>-78,49</Expected>
<EndTimeDate>11-14-2021 10:03:51.622</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-61</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:03:51.623</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_MinAvgMax_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>18</Actual>
<Expected>-42,78</Expected>
<EndTimeDate>11-14-2021 10:04:12.186</EndTimeDate>
<Unit>Far End Rx ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-1.99999999999996</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:04:12.190</EndTimeDate>
<Unit>Far End 78</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:04:28.524</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:04:45.208</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196131, Max Freq(THz) = 196.130469, Min Freq(THz) = 196.130437</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:04:45.216</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:04:45.225</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:05:02.487</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196131, Max Freq(THz) = 196.130507, Min Freq(THz) = 196.130465</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:05:02.497</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.55</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:05:02.524</EndTimeDate>
<Unit>Check if Near End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.52</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:05:02.525</EndTimeDate>
<Unit>Check if Far End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>AfterFTF_ActualOffset</RecordName>
<Value>392260935</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:05:02.526</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5919.97099999999</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:05:02.527</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-77.970999999988</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:05:02.529</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5871</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:05:02.530</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-48.970999999988</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:05:02.531</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>Tx_FTF_Offset_(MHz)</RecordName>
<Value>3000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:05:02.555</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx_FTF_Offset_(MHz)</RecordName>
<Value>3000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:05:02.557</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>FreqOffset</RecordName>
<Value>3000</Value>
<MeasDescription>Frequency Offset</MeasDescription>
<EndTimeDate>11-14-2021 10:05:02.771</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:05:25.890</EndTimeDate>
<Unit>Tuning duration = 0.0020008 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>3000</Actual>
<Expected>3000</Expected>
<EndTimeDate>11-14-2021 10:05:25.894</EndTimeDate>
<Unit>Verifying the Near End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:05:45.524</EndTimeDate>
<Unit>Near End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_rxn_demod_lol_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Near End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:05:45.525</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:05:45.526</EndTimeDate>
<Unit>Near End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:06:31.046</EndTimeDate>
<Unit>Tuning duration = 0.0020023 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:06:31.058</EndTimeDate>
<Unit>Tuning duration = 0.0011643 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2922</Actual>
<Expected>2844,3002</Expected>
<EndTimeDate>11-14-2021 10:06:51.620</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, and 2922 Values Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2842</Actual>
<Expected>2500,3500</Expected>
<EndTimeDate>11-14-2021 10:06:51.642</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:07:14.510</EndTimeDate>
<Unit>Tuning duration = 0.0020022 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>3000</Actual>
<Expected>3000</Expected>
<EndTimeDate>11-14-2021 10:07:14.522</EndTimeDate>
<Unit>Verifying the Far End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:07:14.532</EndTimeDate>
<Unit>Tuning duration = 0.0011315 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:07:35.076</EndTimeDate>
<Unit>Far End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_demod_lock_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Far End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:07:35.078</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:07:35.079</EndTimeDate>
<Unit>Far End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-88</Actual>
<Expected>-178,-2</Expected>
<EndTimeDate>11-14-2021 10:07:55.620</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>8.00000000000004</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:07:55.621</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_MinAvgMax_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>88</Actual>
<Expected>-11,188</Expected>
<EndTimeDate>11-14-2021 10:08:16.173</EndTimeDate>
<Unit>Far End Rx ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>108</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:08:16.174</EndTimeDate>
<Unit>Far End 188</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:08:32.523</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:08:49.762</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196128, Max Freq(THz) = 196.127397, Min Freq(THz) = 196.127361</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:08:49.772</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:08:49.781</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:09:07.018</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196128, Max Freq(THz) = 196.12749, Min Freq(THz) = 196.127464</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:09:07.028</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.62</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:09:07.052</EndTimeDate>
<Unit>Check if Near End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.52</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:09:07.053</EndTimeDate>
<Unit>Check if Far End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>AfterFTF_ActualOffset</RecordName>
<Value>392254861</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:09:07.054</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2919.90500000001</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:09:07.055</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-187.905000000012</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:09:07.056</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2918</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:09:07.057</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-1.90500000001248</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:09:07.058</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>Tx_FTF_Offset_(MHz)</RecordName>
<Value>-3000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:09:07.081</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx_FTF_Offset_(MHz)</RecordName>
<Value>-3000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:09:07.082</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>FreqOffset</RecordName>
<Value>-3000</Value>
<MeasDescription>Frequency Offset</MeasDescription>
<EndTimeDate>11-14-2021 10:09:07.294</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:09:53.424</EndTimeDate>
<Unit>Tuning duration = 0.0010081 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>-3000</Actual>
<Expected>-3000</Expected>
<EndTimeDate>11-14-2021 10:09:53.429</EndTimeDate>
<Unit>Verifying the Near End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:10:13.520</EndTimeDate>
<Unit>Near End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_rxn_demod_lol_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Near End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:10:13.521</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:10:13.522</EndTimeDate>
<Unit>Near End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:10:35.979</EndTimeDate>
<Unit>Tuning duration = 0.0020676 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:10:35.992</EndTimeDate>
<Unit>Tuning duration = 0.0010806 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-3071</Actual>
<Expected>-3157,-2987</Expected>
<EndTimeDate>11-14-2021 10:10:56.627</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, and -3071 Values Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-3151</Actual>
<Expected>-3500,-2500</Expected>
<EndTimeDate>11-14-2021 10:10:56.652</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:11:20.034</EndTimeDate>
<Unit>Tuning duration = 0.0019994 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>-3000</Actual>
<Expected>-3000</Expected>
<EndTimeDate>11-14-2021 10:11:20.041</EndTimeDate>
<Unit>Verifying the Far End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:11:20.048</EndTimeDate>
<Unit>Tuning duration = 0.0011216 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:11:40.073</EndTimeDate>
<Unit>Far End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_demod_lock_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Far End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:11:40.074</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:11:40.075</EndTimeDate>
<Unit>Far End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-36</Actual>
<Expected>-126,55</Expected>
<EndTimeDate>11-14-2021 10:12:00.624</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-44</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:12:00.626</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_MinAvgMax_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>33</Actual>
<Expected>-61,125</Expected>
<EndTimeDate>11-14-2021 10:12:21.172</EndTimeDate>
<Unit>Far End Rx ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>45</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:12:21.173</EndTimeDate>
<Unit>Far End 125</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:12:37.521</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:12:54.517</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196122, Max Freq(THz) = 196.121486, Min Freq(THz) = 196.121447</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:12:54.525</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:12:54.535</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:13:11.698</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196122, Max Freq(THz) = 196.121544, Min Freq(THz) = 196.121505</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:13:11.709</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.53</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:13:11.731</EndTimeDate>
<Unit>Check if Near End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.48</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:13:11.732</EndTimeDate>
<Unit>Check if Far End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>AfterFTF_ActualOffset</RecordName>
<Value>392242994</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:13:11.734</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2919.94599999999</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:13:11.735</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-124.945999999994</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:13:11.737</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>2865</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:13:11.738</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-54.9459999999942</Actual>
<Expected>-3000,3000</Expected>
<EndTimeDate>11-14-2021 10:13:11.739</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>Tx_FTF_Offset_(MHz)</RecordName>
<Value>-6000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:13:11.762</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>Rx_FTF_Offset_(MHz)</RecordName>
<Value>-6000</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:13:11.763</EndTimeDate>
<Cat>Config</Cat>
</Record>
<Record>
<RecordName>FreqOffset</RecordName>
<Value>-6000</Value>
<MeasDescription>Frequency Offset</MeasDescription>
<EndTimeDate>11-14-2021 10:13:11.987</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:13:35.428</EndTimeDate>
<Unit>Tuning duration = 0.0020025 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>-6000</Actual>
<Expected>-6000</Expected>
<EndTimeDate>11-14-2021 10:13:35.441</EndTimeDate>
<Unit>Verifying the Near End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:13:55.521</EndTimeDate>
<Unit>Near End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_rxn_demod_lol_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Near End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:13:55.522</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:13:55.523</EndTimeDate>
<Unit>Near End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:14:18.494</EndTimeDate>
<Unit>Tuning duration = 0.0020545 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:14:18.509</EndTimeDate>
<Unit>Tuning duration = 0.001152 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-6090</Actual>
<Expected>-6179,-5990</Expected>
<EndTimeDate>11-14-2021 10:14:39.622</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, and -6090 Values Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PreFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-6170</Actual>
<Expected>-6500,-5500</Expected>
<EndTimeDate>11-14-2021 10:14:39.646</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Pre FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Tx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:15:25.495</EndTimeDate>
<Unit>Tuning duration = 0.0019664 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Tx_FTF_Offset_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>-6000</Actual>
<Expected>-6000</Expected>
<EndTimeDate>11-14-2021 10:15:25.502</EndTimeDate>
<Unit>Verifying the Far End Tx FTF Offset Value is equal to the set value</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE Rx FTF Tuning Complete</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:15:25.515</EndTimeDate>
<Unit>Tuning duration = 0.0020059 seconds; Timeout Limit = 120 seconds</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_demod_lock_state_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>1</Actual>
<Expected>1</Expected>
<EndTimeDate>11-14-2021 10:15:46.072</EndTimeDate>
<Unit>Far End Module Demoluation Lock State post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_demod_lock_count_LANE_0</RecordName>
<Value>0</Value>
<MeasDescription>Far End Module Demoluation Lock Count value post turnup completion</MeasDescription>
<EndTimeDate>11-14-2021 10:15:46.073</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_UCBs_LANE_0</MeasurementName>
<ComparisonType>EQ</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0</Expected>
<EndTimeDate>11-14-2021 10:15:46.074</EndTimeDate>
<Unit>Far End Module Uncorrected Blocks counts post turnup completion</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_MinAvgMax_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-60</Actual>
<Expected>-157,38</Expected>
<EndTimeDate>11-14-2021 10:16:06.619</EndTimeDate>
<Unit>Near End ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Freq_Offset_Monitor_PostFtfOffset_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-20</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:16:06.620</EndTimeDate>
<Unit>Near End ntwk_ave_freq_offset_pm__freq_mhz Post FTF Offset</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_MinAvgMax_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>66</Actual>
<Expected>-32,155</Expected>
<EndTimeDate>11-14-2021 10:16:27.174</EndTimeDate>
<Unit>Far End Rx ntwk_max_freq_offset_pm__freq_mhz, ntwk_min_freq_offset_pm__freq_mhz, ntwk_ave_freq_offset_pm__freq_mhz Values</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Freq_Offset_Monitor_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>75</Actual>
<Expected>-500,500</Expected>
<EndTimeDate>11-14-2021 10:16:27.175</EndTimeDate>
<Unit>Far End 155</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:16:43.519</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:17:00.554</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196119, Max Freq(THz) = 196.11844, Min Freq(THz) = 196.118413</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>NE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:17:00.564</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>LASER_FREQ_TEST</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:17:00.573</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_Wavelegnth_Meter_Rage_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0</Actual>
<Expected>0.2</Expected>
<EndTimeDate>11-14-2021 10:17:17.723</EndTimeDate>
<Unit>Wavelength Meter Range: Target Freq(THz) = 196119, Max Freq(THz) = 196.118516, Min Freq(THz) = 196.118477</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>FE_TxPulseShape</RecordName>
<Value>ROOT_RAISED_COSINE</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:17:17.734</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>NE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.57</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:17:17.787</EndTimeDate>
<Unit>Check if Near End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_AfterFTF_OperatingVsWLMFreqGHz_LANE_0</MeasurementName>
<ComparisonType>LE</ComparisonType>
<Status>PASS</Status>
<Actual>0.5</Actual>
<Expected>1.5</Expected>
<EndTimeDate>11-14-2021 10:17:17.789</EndTimeDate>
<Unit>Check if Far End operating freq is less than 1.5GHz apart from WLM measured freq (per STP).</Unit>
<Cat>Status</Cat>
</Measurement>
<Record>
<RecordName>AfterFTF_ActualOffset</RecordName>
<Value>392236922</Value>
<MeasDescription>
</MeasDescription>
<EndTimeDate>11-14-2021 10:17:17.790</EndTimeDate>
<Cat>Data</Cat>
</Record>
<Measurement MeasSkipped="False">
<MeasurementName>FE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5919.92800000001</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:17:17.791</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>FE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-154.928000000011</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:17:17.792</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - FE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_ConvolutedOffsetAccuracyMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>5882</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:17:17.793</EndTimeDate>
<Unit>= FTF_Offset - Base_Offset - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<Measurement MeasSkipped="False">
<MeasurementName>NE_DiffActualAndMaxOffsetMHz_LANE_0</MeasurementName>
<ComparisonType>LEGE</ComparisonType>
<Status>PASS</Status>
<Actual>-37.9280000000113</Actual>
<Expected>-6000,6000</Expected>
<EndTimeDate>11-14-2021 10:17:17.794</EndTimeDate>
<Unit>ActualOffset between WLM measurements after FTF - NE_Offset_Monitor_Max</Unit>
<Cat>Status</Cat>
</Measurement>
<EndTimeDate>11-14-2021 10:17:17.817</EndTimeDate>
</Measurement>
<TotalTime>00:19:28.691</TotalTime>
</SubTest>
1 REPLY 1
Community Manager
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
Re: Parsing lengthy XML file with multiple duplicate tags and multiple nested tags
Hi @kprentiss ,
Why not use the File-->Open and use the XML Import Wizard?
Using the XML snippet provided produced the attached table.
Would this approach work for you?
cheers,
Stan
- © 2024 JMP Statistical Discovery LLC. All Rights Reserved.
- Terms of Use
- Privacy Statement
- About JMP
- JMP Software
- JMP User Community
- Contact
