How to show value for certain points in Graph Builder

[#1]

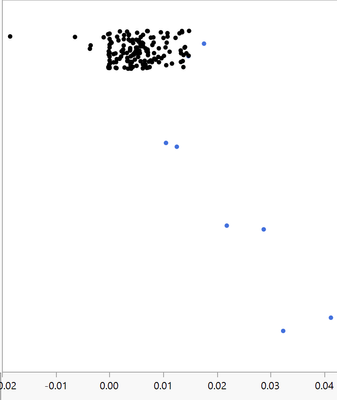

Hi, I am using Graph Builder to plot values for two populations (Blue vs Blue), is there a way to only show the value of all the blue points but not blacks.  Thanks.


[#2]

In your data table, select the column you want to show the label for and select 'Label/Unlabel'.  You could create a custom column here to bring multiple values together in a formatted string, like 'Point 7 (123.4 lb)'.

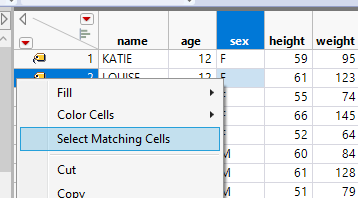

Next select the rows you want to label and right click on a row header and select 'Label/Unlabel'.

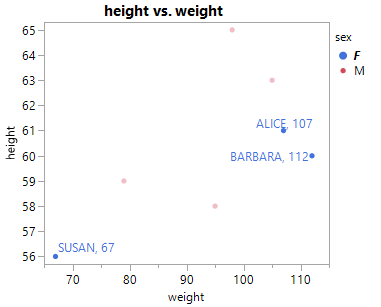

Now redraw your graph and you should see only the blue points labeled:


[#3]

Just in addition to what @ih said:

Here I just:

• opened Big Class
• unset label for name column and set label for age column (to show a certain value)
• execute that script for GraphBuilder in the example
• left click on Legend "F" Female to select group, you see the dots highlighted

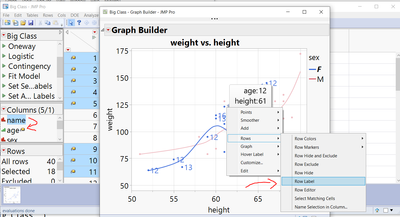

• right click on one of the blue dots to set label state of the blue dots (= blue rows in data table)

see also screenshot. There are many ways in JMP, most are also intuitive.
