How to find the reference to an object in a platform using the tree structure?

[#1]

Hi, I've been trying to use references to objects in analysis platforms (graphs, tables, etc) in scripts, but in my opinion it's not very intuitive from the examples I've seen.

I have multiple use cases, but I'm hoping to find a generic description or manual on how to find the reference to any object in an analysis platform. I'm guessing it exists somewhere on this site but I have not been able to find it.

[#2 · Accepted solution]

In my opinion there is no generic solution for this as there are so many different platforms in JMP and some of them do behave differently than others. My general approach is to take a look at the XML with << Get XML and then use XPath (XPath is also nice as it works outside of JSL) with some combination of << sib, << child, <<parent.... If it is a very simple case then I might use report subscripting Scripting Guide > Display Trees > Navigate JMP Reports > Display Box Object References .

Below are some links:

• Navigating your reports using XPath
• JMP Discovery 2015 - Mining JMP Reports - v10.pdf
• Steal This Code! Three Upgrades for Scripts Obtained from the Enhanced Log (2021-US-45MP-870) , Technique 2  starting at 20:30
• JMP17 is also supposed to have "Automatically create Display Box paths for report scraping via JSL" haven't used this as I have no access to JMP17. Also no idea how generic paths this will create.

[#3]

Thanks, this is pretty much what I was looking for. I remember the "Steal this code" presentation but I also couldn't find it anymore.

I will accept this as a solution, although I still feel this subject deserves a more concise explanation on JMP learning and/or the scripting Index within JMP so that users know where to start.

[#4]

Looking at the XPath examples I realized many of my problems arise when I use a "group by" variable in the platform.

Taking the example I find in the XPath link:

This script works fine

// not grouped by sex
dt = Open(   "$SAMPLE_DATA\Big Class.jmp" );
ow = dt << Oneway(
	Y( :height ),
	X( :age ),
	Means and Std Dev( 1 ),
	Mean Error Bars( 1 ),
	Std Dev Lines( 1 ),
	Mean of Means( 1 )
);

testXML = Report (ow) << Get XML;
Write( testXML );

/* Return a list of NumberColBox references */
ncbList = Report( ow )["Means and Std Deviations"] << XPath( "//NumberColBox" );

If I group by sex however, get XML already throws an error. How to handle this?

// group by sex
dt = Open(   "$SAMPLE_DATA\Big Class.jmp" );
ow = dt << Oneway(
	Y( :height ),
	X( :age ),
	By( :sex ),
	Means and Std Dev( 1 ),
	Mean Error Bars( 1 ),
	Std Dev Lines( 1 ),
	Mean of Means( 1 )
);

// get XML fails for this platform
testXML = Report (ow) << Get XML;
Write( testXML );

/* Return a list of NumberColBox references */
ncbList = Report( ow )[???]["Means and Std Deviations"] << XPath( "//NumberColBox" );

[#5]

When you use a By() you get the message returns a list of platforms, not a single platform.

dt = Open( "$SAMPLE_DATA\Big Class.jmp" );
ow = dt << Oneway(
	Y( :height ),
	X( :age ),
	Means and Std Dev( 1 ),
	Mean Error Bars( 1 ),
	Std Dev Lines( 1 ),
	Mean of Means( 1 )
);

Show( ow );

dt = Open( "$SAMPLE_DATA\Big Class.jmp" );
ow_by = dt << Oneway(
	Y( :height ),
	X( :age ),
	By( :sex ),
	Means and Std Dev( 1 ),
	Mean Error Bars( 1 ),
	Std Dev Lines( 1 ),
	Mean of Means( 1 )
);

Show( ow_by );

Log:

/*:

ow = Oneway[];
ow_by = {Oneway[], Oneway[]};

[#6]

You could try wrapping Oneway with New Window

Names Default To Here(1);

// group by sex
dt = Open("$SAMPLE_DATA\Big Class.jmp");
nw = New Window("", ow = dt << Oneway(Y(:height), X(:age), By(:sex), Means and Std Dev(1), Mean Error Bars(1), Std Dev Lines(1), Mean of Means(1)));

// get XML fails for this platform
testXML = nw << Get XML;
Write(testXML);

ncbList = nw << XPath("\[//OutlineBox[text()="Means and Std Deviations"]//NumberColBox]\");

[#7]

As Jarmo indicated in his first reply, in JMP17 it got a bit easier now to get the correct XPath for an object:

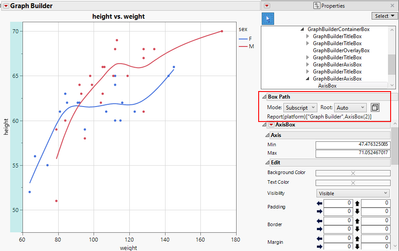

Right click on the object, click on Show Properties (... adjust the selection if needed) and click on  in the Box Path menu on the right:

[#8]

another Trick:
Generate the XML code for the current report (not just the report of the object; think about data filters etc.)

I linked the code below to a Keyboard shortcut - and now I can get the XML code for any report that I want.

Just select the report and press (e.g.) CTRL - Alt + X

Local({myTitle= Current Report()<< get Window Title() || " - (xml)"},
New Window (myTitle ,<<Type( "Script" ),Current Report()<< Get XML))


-> Add-In, together with some other useful functions
- "Awaiting review"; afterwards it will show up here:
https://community.jmp.com/t5/JMP-Add-Ins/Toolbar-to-make-quot-selections-quot-easy/ta-p/566965

[#9]

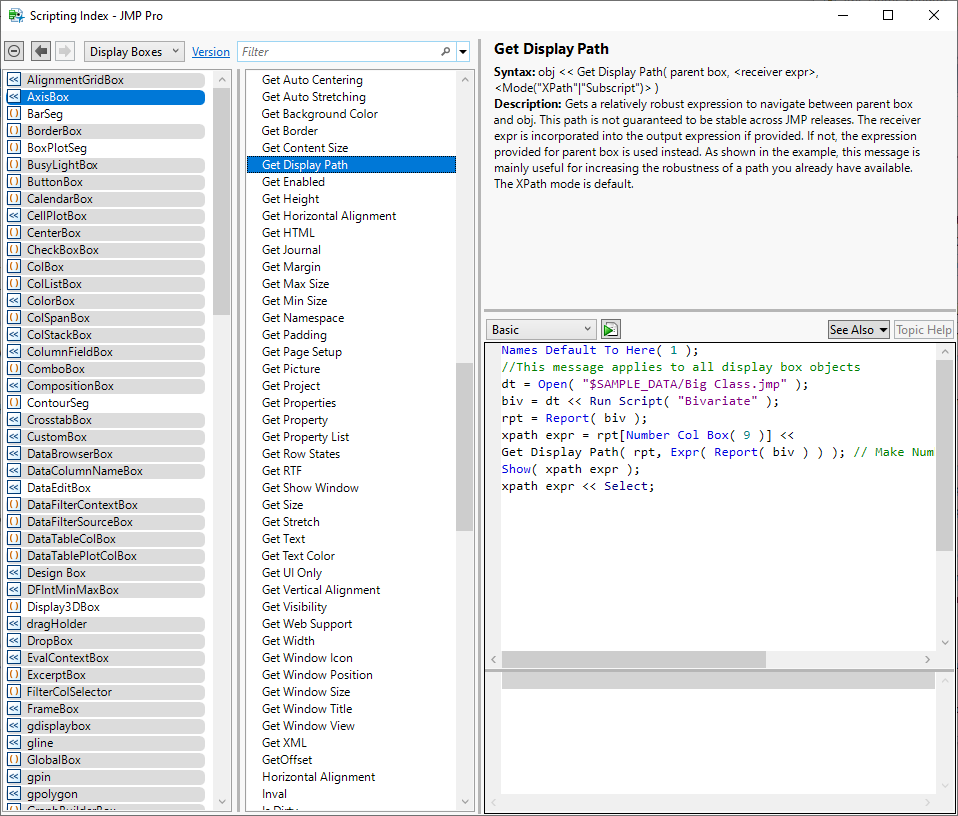

There is also a utility function to help with determining the best path to a display box.

[#10]

---

as I have no access to JMP17.

---

really?

I would have guessed that you get your special, personal, free JMP Pro signature editon the first day a new version comes out

... to support you as much as possible in supporting others
