How to create seperate table of selective Variability gauge chart GRR report and Linearity and Bias Report

How do i create a seperate table for Variability gauge Report GRR for selective items in the report

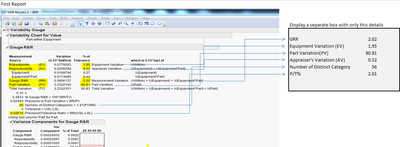

First Report


Current JMP Script to display First Report

Clear Globals();

popup = Dialog(

  "Enter specification tolerance",

  selection = editnumber(),

  "Select Reproducibility Factor",

  selection1 = combobox("Equipment","Operator"),

  Button( "Ok" ),

  Button( "Cancel" ));

If( popup["Button"] == -1,

  Throw( "cancel" ));

specrange = popup["Selection"];

reproducibility=popup["Selection1"];

Column( 1 ) << modeling type( nominal );

Column( 2 ) << modeling type( nominal ) << Set name(eval(if(reproducibility==1,"Equipment","Operator")));

Column( 3 ) << modeling type( continuous );

var=Variability Chart(

  Y( Column (3) ),

  X( Column (2) , Column (1) ),

  Model( "Crossed" ),

  Max Iter( 20 ),

  Analysis Type( Name( "Choose best analysis (EMS REML Bayesian)" ) ),

  Historical Sigma( 0 ),

  Connect Cell Means( 1 ),

  Show Group Means( 1 ),

  Show Grand Mean( 1 ),

  Std Dev Chart( 1 ),

  Gauge RR( 5.15, specrange, 0, 0 ),

  Gauge RR Report( 1 ),

  Show Box Plots( 1 ),

  Mean Plots( 1 ),

  Std Dev Plots( 1 )

);

var << Set Report Title("GRR Results")


______________________________________________________________________________________________________________________________________________

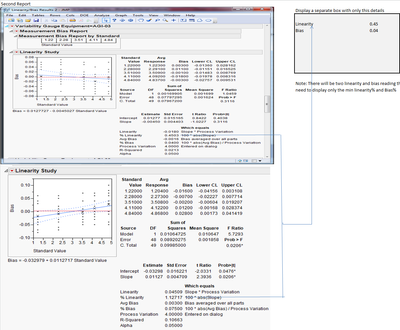

Second Report

How do i create a seperate table for Variability gauge Report (linearty and Bias report)  for selective items in the report


JMP Script for second report

Clear Globals();

Column( 1 ) << modeling type( nominal );

Column( 2 ) << modeling type( continuous );

Column( 3 ) << modeling type( continuous );

Column( 4 ) << modeling type( nominal );

var=Variability Chart(

  Y( Column(3) ),

  X( Column(2) ),

  By( Column(4) ),

  Analysis Type( Name( "Choose best analysis (EMS REML Bayesian)" ) ),

  Standard( Column(2) ),

  Connect Cell Means( 1 ),

  Show Group Means( 1 ),

  Show Grand Mean( 1 ),

  Std Dev Chart( 1 ),

  Show Box Plots( 1 ),

  Bias Report,

  Linearity Study( 0.05 )

);

var << Set Report Title("Linearity/Bias Results")

1 ACCEPTED SOLUTION

Accepted Solutions
jerry_cooper

Staff

Joined:

Jul 10, 2014

Solution

Re: How to create seperate table of selective Variability gauge chart GRR report and Linearity and Bias Report

There may be a better way, but this produces the result you're after.  The trick is to expose the Tree Structure of the report or outline box that contains the information you want. Right-click on the outline's disclosure button and select Edit->Show Tree Structure:


The resulting window will display the tree structure for the objects in the report so that you can reference them in your script. See below for the code that I appended to your script to produce the table for your first report:



repvar = var << Report;



LBL1 = repvar["Gauge R&R"][String Col Box( 1 )];



LBL2 = repvar["Gauge R&R"][String Col Box( 2 )];



VAL1 = repvar["Gauge R&R"][Number Col Box( 3 )];



VAL2 = repvar["Gauge R&R"][Number Col Box( 6 )];





win1 = New Window( "The Report",



     Table Box( String Col Box( "Attribute", {LBL1[5], LBL1[1], LBL1[6], LBL1[2], "Number of Distinct Categories", "P/T %"} ),



     String Col Box( "Abrev", {LBL2[5], LBL2[1], LBL2[6], LBL2[2]} ),



     Number Col Box( "Value", {VAL1[5], VAL1[1], VAL1[6], VAL1[2], VAL2[4], VAL2[6]*100} )



     )



);

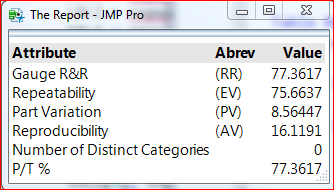

The result:


Hope this helps.

3 REPLIES
jerry_cooper

Staff

Joined:

Jul 10, 2014

Solution

Re: How to create seperate table of selective Variability gauge chart GRR report and Linearity and Bias Report

There may be a better way, but this produces the result you're after.  The trick is to expose the Tree Structure of the report or outline box that contains the information you want. Right-click on the outline's disclosure button and select Edit->Show Tree Structure:


The resulting window will display the tree structure for the objects in the report so that you can reference them in your script. See below for the code that I appended to your script to produce the table for your first report:



repvar = var << Report;



LBL1 = repvar["Gauge R&R"][String Col Box( 1 )];



LBL2 = repvar["Gauge R&R"][String Col Box( 2 )];



VAL1 = repvar["Gauge R&R"][Number Col Box( 3 )];



VAL2 = repvar["Gauge R&R"][Number Col Box( 6 )];





win1 = New Window( "The Report",



     Table Box( String Col Box( "Attribute", {LBL1[5], LBL1[1], LBL1[6], LBL1[2], "Number of Distinct Categories", "P/T %"} ),



     String Col Box( "Abrev", {LBL2[5], LBL2[1], LBL2[6], LBL2[2]} ),



     Number Col Box( "Value", {VAL1[5], VAL1[1], VAL1[6], VAL1[2], VAL2[4], VAL2[6]*100} )



     )



);



The result:


Hope this helps.

aravindan880

Community Trekker

Joined:

Apr 5, 2016

Re: How to create seperate table of selective Variability gauge chart GRR report and Linearity and Bias Report

Thanks Jerry Cooper it works great!!!

The Linearity and Bias report is slightly tricky as there could be more than 1 Linearity and Bias report and we need to grab the min of the linearity% and Bias%

jerry_cooper

Staff

Joined:

Jul 10, 2014

Re: How to create seperate table of selective Variability gauge chart GRR report and Linearity and Bias Report

Glad it worked.  As you work through the second report, keep in mind that when you have a By variable, you'll have a Display Box for each By group. Use an index to reference the report for each By group.  If there was a By group in the example I used above, in order to access the report layer for each, my code might have looked like this:

LBL1a = repvar[1]["Gauge....]  for the first "By" group, and

LBL1b = repvar[2]["Gauge....] for the second "By" group.
