How to create a custom color gradient legend in the Fit Y by X platform?

Dear JMP Community,



Is it possible to create a customized color gradient legend using the Fit Y by X platform?



I tried the basic Row Legend with a continuous setting but I cannot find a way to edit the min, middle, and max levels (as it can be done in the GB platform). I also tried the Value Color method but I can only get the legend for every single value plotted on the graph.



Note: I work with JMP 13.1 on PC Win 10



Thank you for your help.



Sincerely,



TS

Thierry R. Sornasse
0 Kudos
5 REPLIES 5
cwillden
Super User

Re: How to create a custom color gradient legend in the Fit Y by X platform?

Hi @Thierry_S,

I think you'll get more help if you include more precise information and some screenshots of what you're trying to do.  Where in Fit Y by X are you wanting to implement a color gradient?  What kinds of variables are you plotting?  Can you provide a minimum working example we can use to help you find a solution?

-- Cameron Willden
0 Kudos
Thierry_S
Community Trekker

Re: How to create a custom color gradient legend in the Fit Y by X platform?

Hi Cameron,



Good point: here is more information



I have a scatter plot Y by X both continuous, and I would like to color code each point by Z (continuous). Based on previous experience, I know that Z ranges from 2 to 14 with a middle point at 8. Is it possible to modify the default color assignment produced by Row Legend to assign the highest color to 14 instead of 12.5?

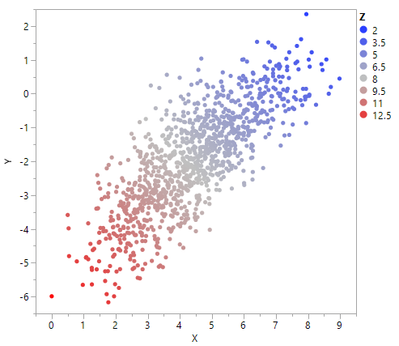

Y by X Color by Z GRADIENT.png

Thank you for your help.



Sincerely,



TS

Thierry R. Sornasse
0 Kudos
cwillden
Super User

Re: How to create a custom color gradient legend in the Fit Y by X platform?

Hi @Thierry_S,

Thanks for the clarification.  I have an idea, though it's a bit of a kluge. Just add 2 rows to your table with values 2 and 14 in column Z.  If you don't put values for X and Y, they won't be plotted, but they will still be used to create the legend and set the end points for the color gradient.  Hope that helps!

-- Cameron Willden
0 Kudos
Thierry_S
Community Trekker

Re: How to create a custom color gradient legend in the Fit Y by X platform?

Hi Cameron,



Thanks for providing this work around. I will have to create a new column for this to work because currently my Z column is a formula.



Best regards,



TS

Thierry R. Sornasse
0 Kudos
mikedriscoll
Community Trekker

Re: How to create a custom color gradient legend in the Fit Y by X platform?

Right click on the z column in the table, click on column info, and add color gradient property. You can set the min / max / center.



Edit: I thought you were trying to do this in graph builder but I mis read it. My method worked for GB but I'm not sure about the fit y by x.
