## How to creat a script that generat a Pareto Plot with date filters

Hello everyone,

I hope you're doing well. I'm facing an issue creating a script to generate a Pareto plot from a table that I want to filter by dates (date1 and date2).

As a first step, I called my table using:

``dt2 = Open( "/D:/Project JMP/Tables/Table NOK PY.jmp", invisible );``

Next :

``````dt2_top5 = dt2 << Summary(
Group( :Date, :Ref Produit, :ProductName, :Baie, :ICT_FCT, :CodeError),
Freq( "Aucun(e)" ),
Weight( "Aucun(e)" ),
output table name( "Table2 Top 5" ),
invisible
);

// Subset of data for Pareto plot filtered by Date
dt_pareto_subset = dt2_top5 << Select Where( Num( Char( :Date ) ) >= Num( date1 ) & Num( Char( :Date ) ) < Num( date2 ) );
dt_pareto_subset = dt2_top5 << Subset(
Selected Rows(1),
Columns(:CodeError),
output table name("Pareto Subset"),
invisible
);``````

and i did creat the Pareto plot in my window  :

``````Border Box(Left(25), Top(50), Bottom(200),
V List Box(
// Add the Pareto plot here
paretoPlot = dt_pareto_subset << Pareto Plot(
Y( :CodeError ),
Freq( "Freq" ),
Show Percents( 1 ),
Show Cumulative Line( 1 )
),
)
)``````

but after i lanched my script i did get this error :

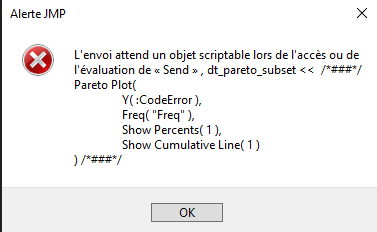

The script object is expected when accessing or evaluating "Send", dt_pareto_subset << /*###*/
Pareto Plot(
Y(:CodeError),

Freq("Freq"),

Show Percents(1),

Show Cumulative Line(1)

)/*###*/

I have a small code snippet that generates a Pareto plot. Currently, I have to manually select the data table each time, and I cannot apply a date filter :

``````Pareto Plot(
Cause( :CodeError ),
SendToReport(
Dispatch( {"Plots"}, "Pareto Report", FrameBox, {Frame Size( 1555, 725 )} )
)
);``````

Thank you all for your help,

Best regards,
Yass

1 ACCEPTED SOLUTION

Accepted Solutions
Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

There should be no need for the num and char to num conversions.

Maybe something like this?

``````Names Default To Here(1);

yday = Date Increment(Today(), "day", -1, "start");
tday = Date Increment(Today(), "day", 0, "start");

dt_top5 = dt << Summary(
Group(:Date, :Ref Produit, :Baie, :ICT_FCT, :Result, :CodeError),
Freq("Aucun(e)"),
Weight("Aucun(e)"),
output table name("Table Top 5")
);

rows_of_interest = dt_top5 << Get Rows Where(yday <= :Date <= tday);
show(rows_of_interest);

dt_pareto_subset = dt_top5 << Subset(
Rows(rows_of_interest),
Selected Columns(0),
Output Table("Pareto Subset")
);

pp = dt_pareto_subset << Pareto Plot(Cause(:CodeError), Freq(:N Rows));``````

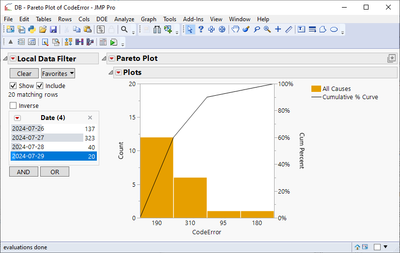

You could also create paretoplot from your initial table (filtering can require a bit of work)

``````dt << Pareto Plot(
Cause(:CodeError),
Local Data Filter(
columns(:Date),
Where(:Date == 3805056000),
Display(:Date, N Items(4))
)
)
);``````
-Jarmo
9 REPLIES 9
Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

Do you have the subset you expect in dt_pareto_subset?

-Jarmo
Level III

## Re: How to creat a script that generat a Pareto Plot with date filters

yes and i expect dt_pareto_subset to contain only the rows from dt2_top5 where the value in the :Date column falls between date1 and date2

Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

The error message is telling that the variable dt_pareto_subset doesn't have a scriptable object (in this case data table). There could many different causes for this and it is totally guess work without seeing your data or the full script.

-Jarmo
Level III

## Re: How to creat a script that generat a Pareto Plot with date filters

``````Names Default To Here( 1 );

TOP5 = New Namespace(
"TOP5"
);

TOP5:get_dates = Function({},
////
);

TOP5:calculate_nok_percentages = Function({dt},
/////
);

// Define the Do function
TOP5:Do = Function ({nb_date1, nb_date2},
//Ouverture de la table de données
dt = Open( "/D:/Project JMP/Tables/TableData PY.jmp", invisible );
dt2 = Open( "/D:/Project JMP/Tables/Table NOK PY.jmp", invisible );

{percent_nok_ict, percent_nok_fct} = TOP5:calculate_nok_percentages(dt);

current_month = Format(Today(), "Format Pattern", "<Month>", << Use Locale(0));

date1 = Date Increment(Today(), "day", nb_date1, "start");
date2 = Date Increment(Today(), "day", nb_date2, "start");

dt_top5 = dt << Summary(
Group( :Date, :Nom de fichier, :Ref Produit, :ProductName, :Baie, :ICT_FCT, :Result, :CodeError),
Freq( "Aucun(e)" ),
Weight( "Aucun(e)" ),
output table name( "Table Top 5" ),
invisible
);

dt2_top5 = dt2 << Summary(
Group( :Date, :Ref Produit, :ProductName, :Baie, :ICT_FCT, :CodeError),
Freq( "Aucun(e)" ),
Weight( "Aucun(e)" ),
output table name( "Table2 Top 5" ),
invisible
);

// Subset of data for Pareto plot filtered by Date
dt_pareto_subset = dt2_top5 << Select Where( Num( Char( :Date ) ) >= Num( date1 ) & Num( Char( :Date ) ) < Num( date2 ) );
dt_pareto_subset = dt2_top5 << Subset(
Selected Rows(1),
Columns(:CodeError),
output table name("Pareto Subset"),
invisible
);

/*
//
//
//

Here i have the logic of production repport.
it's fine it works

//
//
//
*/

//Création de la fenetre du top 5
window = new Window ("TOP5",
V List Box(
pb = Picture Box( Open( "D:\Project JMP\Images\logo.png", png ) ),
Border Box( Top(50),
V List Box(
tb1 = Text Box("Production results report of "||Format( date2, "yyyy-mm-dd" )),
tb1 << Set Base Font( "Title" ),
tb1 << Set Font Scale (3),
tb1 << Justify Text("Center"),
tb1 << Set Width(2770),
tb1 << Background Color(RGB Color(225, 225, 225)),

tb2 = Text Box ("SVI, PY"),
tb2 << Justify Text("Center") << Set Font Size(25),
tb2 << Set Width(2770),
tb2 << Background Color(RGB Color(240, 240, 240)),
)
),
V List Box (
Border Box (Top (100), Bottom(100), Left (25),
H List Box(
// TOP 5 ICT
V List Box(
tb3 = Text Box( "Top 5 NOK results for ICT"),
tb3 << Set Base Font( "Title" ),
tb3 << Set Font Scale (2),
H List Box(
// column bay

// column product ref

// column test number

//column %nok

// column product name
)
),
V List Box(
//nok percent for this month
),
)
),
Border Box(Left(25), Top(50), Bottom(200),
//TOP 5 FCT
V List Box(
tb4 = Text Box( "Top 5 NOK results for FCT"),
tb4 << Set Base Font( "Title" ),
tb4 << Set Font Scale (2),
H List Box(
// column bay

// column product ref

// column test number

//column %nok

// column product name
)
)
V List Box(
//nok percent for this month
),
)
),

Border Box(Left(25), Top(50), Bottom(200),
V List Box(
// Add the Pareto plot here
paretoPlot = dt_pareto_subset << Pareto Plot(
Y( :CodeError ),
Freq( "Freq" ),
Show Percents( 1 ),
Show Cumulative Line( 1 )
),
)
)
)
)
);

window << Maximize Window (1);
//Enregistrement du fichier image .png et du fichier texte .txt
window << Save Picture ("D:\Project JMP\Rapports de Production Quotidiens\Rapport du "||Format( date2, "yyyy-mm-dd" )||".png", "png");
window << Save Text ("D:\Project JMP\Rapports de Production Quotidiens\Rapport du "||Format( date2, "yyyy-mm-dd" )||".txt");
);``````

Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

Does it work as intended if you create the plot after you have created the subset? So don't put it inside the new window

``````Names Default To Here(1);
dt = Open("\$SAMPLE_DATA/Time Series/Steel Shipments.jmp");

dt << New Column("Errors", Character, Nominal, Formula(
Match(Floor(:Steel Shipments / 1000),
4, "1000",
5, "2000",
6, "3000",
7, "4000",
8, "5000"
)
));

rows_of_interest = dt << Get Rows Where(02Feb1985<= :Date <= 09Jan1990);

dt_subset = dt << Subset(Rows(rows_of_interest), Selected Columns(0), Output Table("Subset"));

paretoplot = dt_subset << Pareto Plot(Cause(:Errors));``````
-Jarmo
Level III

## Re: How to creat a script that generat a Pareto Plot with date filters

Hello,

i tried the method in your script, it gives me the pareto plot but without data filter. For example the pareto for today must be 2024-07-29 <= :Date < 2024-07-30.

So I used this functions :

``````// Function to get today's and yesterday's date
GetTodayAndYesterday = Function({},
today = Today();
yesterday = Date Increment(today, "day", -1, "start");
evallist({Format(yesterday, "yyyy-mm-dd"), Format(today, "yyyy-mm-dd")});
);``````
``	dt = Open( "/D:/Project JMP/Tables/DB.jmp", invisible );``
``````    {yesterday, today} = GetTodayAndYesterday();

dt_top5 = dt << Summary(
Group( :Date, :Ref Produit, :Baie, :ICT_FCT, :Result, :CodeError),
Freq( "Aucun(e)" ),
Weight( "Aucun(e)" ),
output table name( "Table Top 5" ),
invisible
);``````
``````    // Create a subset of data for the Pareto Plot filtered by the date range
rows_of_interest = dt_top5 << Get Rows Where( Num( Char( :Date ) ) >= Num( yesterday ) & Num( Char( :Date ) ) <= Num( today ) );
dt_pareto_subset = dt_top5 << Subset(Rows(rows_of_interest), Selected Columns(0), Output Table("Pareto Subset"), invisible);

// Generate the Pareto Plot
paretoplot = dt_pareto_subset << Pareto Plot(Cause(:CodeError));	``````

I've attached a sample of my database for reference.

Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

Do you want to have a data filter in your pareto plot or do you just want to filter the data? It seems like you just want to create a subset from your data and NOT have a filter.

-Jarmo
Level III

## Re: How to creat a script that generat a Pareto Plot with date filters

I need to filter the data with Date using a subset with conditions i need, so i can create a Pareto plot for yesterday's production results because i generate a daily production resalts report every morning.

Super User

## Re: How to creat a script that generat a Pareto Plot with date filters

There should be no need for the num and char to num conversions.

Maybe something like this?

``````Names Default To Here(1);

yday = Date Increment(Today(), "day", -1, "start");
tday = Date Increment(Today(), "day", 0, "start");

dt_top5 = dt << Summary(
Group(:Date, :Ref Produit, :Baie, :ICT_FCT, :Result, :CodeError),
Freq("Aucun(e)"),
Weight("Aucun(e)"),
output table name("Table Top 5")
);

rows_of_interest = dt_top5 << Get Rows Where(yday <= :Date <= tday);
show(rows_of_interest);

dt_pareto_subset = dt_top5 << Subset(
Rows(rows_of_interest),
Selected Columns(0),
Output Table("Pareto Subset")
);

pp = dt_pareto_subset << Pareto Plot(Cause(:CodeError), Freq(:N Rows));``````

You could also create paretoplot from your initial table (filtering can require a bit of work)

``````dt << Pareto Plot(
Cause(:CodeError),
Local Data Filter(
