While doing some research to answer this question, I found this article on the JMP community that helped me get started. How do I do a combination bar and line plot using Overlay Plot?
Using the big class sample data example of height and weight I was able to create a bar chart for weight and a line plot for height on the same chart using the Overlay Plot.
![Bass_Masri_0-1588116294712.jpeg Bass_Masri_0-1588116294712.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23551i35ED28B9952AF036/image-size/medium?v=v2&px=400)

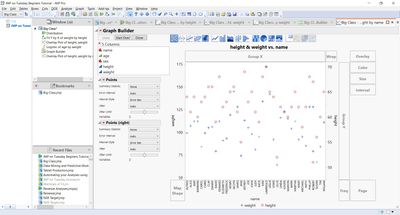

To do this, first clear the row states in the JMP table. Create the overlay plot with the two variables, one on the left axis and one on the right axis.

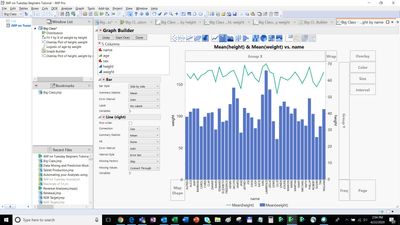

Then go to the Red Triangle and click Show Control Panel.
![Bass_Masri_1-1588116294733.jpeg Bass_Masri_1-1588116294733.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23552i431C2BBF609C7B78/image-size/medium?v=v2&px=400)

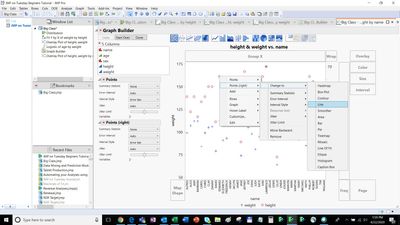

Then select a point (for Height) and then right click and select Change to > Line
![Bass_Masri_2-1588116294755.jpeg Bass_Masri_2-1588116294755.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23553i588DCE984DD6B522/image-size/medium?v=v2&px=400)

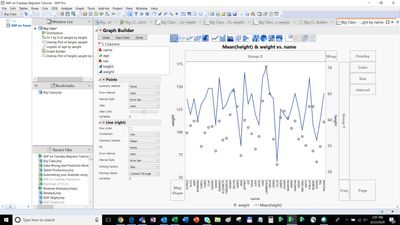

Then the circles for height change to a line.
![Bass_Masri_3-1588116294777.jpeg Bass_Masri_3-1588116294777.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23554i1A1E75E163D0A62D/image-size/medium?v=v2&px=400)

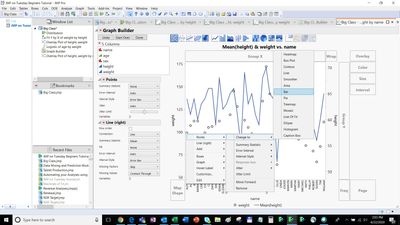

Similarly select a point (for Weight) and then right click and select Change to > Bar
![Bass_Masri_4-1588116294798.jpeg Bass_Masri_4-1588116294798.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23556i69672DB66C1BAFE4/image-size/medium?v=v2&px=400)
Then change the axis scale, legend location and colours to suit.
![Bass_Masri_5-1588116294821.jpeg Bass_Masri_5-1588116294821.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23555iB4CEAFD36545DAA5/image-size/medium?v=v2&px=400)

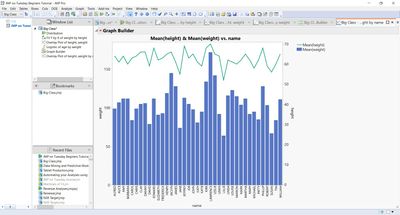

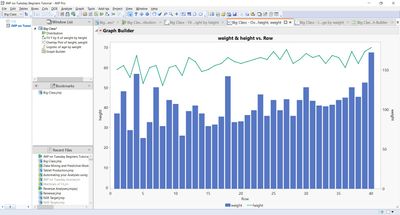

Final chart with x label for name.
![Bass_Masri_6-1588116294838.jpeg Bass_Masri_6-1588116294838.jpeg](https://community.jmp.com/t5/image/serverpage/image-id/23557iB5724B15ADB151F4/image-size/medium?v=v2&px=400)
Open("$SAMPLE_DATA/Big Class.jmp");
Graph Builder(
Size( 793, 696 ),
Show Control Panel( 0 ),
Fit to Window( "Maintain Aspect Ratio" ),
Variables(
X( :name ),
Y( :height, Side( "Right" ) ),
Y( :weight, Position( 1 ) )
),
Elements( Bar( X, Y( 2 ), Legend( 7 ) ), Line( X, Y( 1 ), Legend( 6 ) ) ),
SendToReport(
Dispatch(
{},
"height",
ScaleBox,
{Min( -0.268537964941355 ), Max( 71.08 ), Inc( 10 ), Minor Ticks( 0 )}
),
Dispatch(
{},
"400",
ScaleBox,
{Legend Model(
7,
Properties( -1, {Marker( "Circle" )}, Item ID( "weight", 1 ) )
), Legend Model(
6,
Properties( 0, {Line Color( 23 )}, Item ID( "Mean(height)", 1 ) ),
Properties( -1, {Marker( "Circle" )}, Item ID( "height", 1 ) )
)}
),
Dispatch(
{},
"400",
LegendBox,
{Legend Position( {7, [1], 6, [0]} ), Position( {1, 0} )}
)
)
);
