Hi all,
I am quite new in JSL scripting. Currently, I added Slider to change some variable in data table. Data table gets updated as the slider change
In the next step, I would like to get data 2 column in the data table to turn them into matrix and starting draw Polygon in Graph Builder

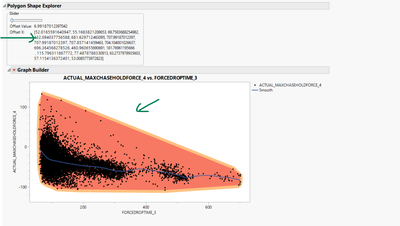

However , I face some difficulty that once I move sliders, the content does not change:
1. I add one text box in New window and display Column value of data table
2. Polygon with coordinates from data table does not change in graph builder
My purpose is once I move slider, the content in Text Box and graph changes as well
Here is my code:
dt = Open("ww17_DATAALL_TRIAL.jmp");
//get malahanobis distance
multi = dt << Multivariate(
Y(:FORCEDROPTIME_3, :ACTUAL_MAXCHASEHOLDFORCE_4),
Variance Estimation("Row-wise"),
Scatterplot Matrix(1),
Pairwise Correlations(1)
);
multi << Mahalanobis Distances(1, Save Outlier Distances);
mahal_ucl = Column("Mahal. Distances") << Get Property("Mahal.Value");
mahal_max = Col Maximum(Column(dt, "Mahal. Distances"));
tri = Triangulation(X(:FORCEDROPTIME_3, :ACTUAL_MAXCHASEHOLDFORCE_4), Y(:BHT));
// get contour around all data point
hulledge = tri << Get Hull Edges;
hullpoint = tri << Get Hull Points;
{xx, yy} = tri << Get Points();
tri2 = tri << Subset(tri << Get Hull Points); // get data point of boundary
{tri2_xx, tri2_yy} = tri2 << Get Points();
centroid_x = Mean(tri2_xx); // calculate centroid x
centroid_y = Mean(tri2_yy); // calculate centroid y
centroid_tri2_xx_ang = []; // get distance between x and centroid
centroid_tri2_yy_ang = []; // get distance between x and centtroid
angles = {}; // angles
For(i = 1, i <= N Items(tri2_xx), i++,
x_diff = tri2_xx[i] - centroid_x;
Insert Into(centroid_tri2_xx_ang, x_diff);
y_diff = tri2_yy[i] - centroid_y;
Insert Into(centroid_tri2_yy_ang, y_diff);
);
//sort tri2_xx and tri2_yy to clockwise polygon
For(i = 1, i <= N Items(tri2_xx), i++,
If(
centroid_tri2_xx_ang[i] > 0,
angles[i] = ATan(centroid_tri2_yy_ang[i] / centroid_tri2_xx_ang[i]),
centroid_tri2_xx_ang[i] < 0 & centroid_tri2_yy_ang[i] >= 0,
angles[i] = ATan(centroid_tri2_yy_ang[i] / centroid_tri2_xx_ang[i]) + 3.14,
centroid_tri2_xx_ang[i] < 0 & centroid_tri2_yy_ang[i] < 0,
angles[i] = ATan(centroid_tri2_yy_ang[i] / centroid_tri2_xx_ang[i]) - 3.14,
centroid_tri2_xx_ang[i] == 0 & centroid_tri2_yy_ang[i] > 0, angles[i] = 3.14 / 2,
centroid_tri2_xx_ang[i] == 0 & centroid_tri2_yy_ang[i] < 0, angles[i] = -3.14 / 2,
)
);
Show(angles);
tb = New Table("tb",
Add Rows(N Items(tri2_xx)),
New Table Variable("scaleFactor", mahal_max),
New Column("X", Numeric, "Continuous", Set Values(tri2_xx)),
New Column("Y", Numeric, "Continuous", Set Values(tri2_yy)),
New Column("Angle", Numeric, "Continuous", Set Values(angles)),
New Column("MaxDistance", Numeric, "Continuous", Formula(mahal_max)),
New Column("OffSet", Numeric, "Continuous", Formula(:scaleFactor + mahal_max))
);
sliderValue = tb << Get Table Variable("scaleFactor");
//must be sorted the lists first
tb << Sort(replace table, By(:Angle), Order(Descending));
tri2_xx_sort = Column(tb, "X") << GetAsMatrix();
tri2_yy_sort = Column(tb, "Y") << GetAsMatrix();
x2 = Column(tb, "X") << GetAsMatrix();
y2 = Column(tb, "Y") << GetAsMatrix();
tb << New Column("OffSetX_temp",
Numeric,
"Continuous",
Formula(CalculateOffsetPoints_X(:scaleFactor))
);
tb << New Column("OffSetY_temp",
Numeric,
"Continuous",
Formula(CalculateOffsetPoints_Y(:scaleFactor))
);
CalculateOffsetPoints_X = Function({:scaleFactor},
For(i = 1, i <= N Items(x2), i++,
j = Mod(i, N Items(x2)) + 1; // Next point index
dx = x2[j] - x2[i];
dy = y2[j] - y2[i];
length = Sqrt(dx ^ 2 + dy ^ 2);
// Perpendicular vector
perp_dx = -dy / length;
perp_dy = dx / length;
// Offset points
offset_x[i] = x2[i] + :scaleFactor * perp_dx;
offset_y[i] = y2[i] + :scaleFactor * perp_dy;
);
Return(offset_x[Row()]);
);
CalculateOffsetPoints_Y = Function({:scaleFactor},
For(i = 1, i <= N Items(x2), i++,
j = Mod(i, N Items(x2)) + 1; // Next point index
dx = x2[j] - x2[i];
dy = y2[j] - y2[i];
length = Sqrt(dx ^ 2 + dy ^ 2);
// Perpendicular vector
perp_dx = -dy / length;
perp_dy = dx / length;
// Offset points
offset_x[i] = x2[i] + :scaleFactor * perp_dx;
offset_y[i] = y2[i] + :scaleFactor * perp_dy;
);
Return(offset_y[Row()]);
);
New Window("DrawData",
Outline Box("Polygon Shape Explorer",
Panel Box("Slider",
sb = Slider Box(
0,
100,
sliderValue,
tb << Set Table Variable("scaleFactor", sliderValue)
),
Lineup Box(N Col(32),
Text Box("Offset Value: "),
Text Box(sliderValue),
Text Box("Offset X: "),
Text Box((Column(tb, "OffSetX_temp") << GetAsMatrix())),
)
),
chartdisplay = dt << Graph Builder(
Size(725, 429),
Show Control Panel(0),
Variables(X(:FORCEDROPTIME_3), Y(:ACTUAL_MAXCHASEHOLDFORCE_4)),
Elements(Points(X, Y, Legend(3)), Smoother(X, Y, Legend(4))),
SendToReport(
Dispatch({}, "FORCEDROPTIME_3", ScaleBox,
{Format("Best", 12), Min(Min(xx) - 30), Max(Max(xx) + 30), Inc(200),
Minor Ticks(1)}
),
Dispatch({}, "ACTUAL_MAXCHASEHOLDFORCE_4", ScaleBox,
{Format("Best", 12), Min(Min(yy) - 30), Max(Max(yy) + 30), Inc(100),
Minor Ticks(4)}
),
Dispatch({}, "Graph Builder", FrameBox,
{Add Graphics Script(
2,
Description(""),
Transparency(0.5);
Fill Color({1.0, 0.5, 0.0});
Polygon(
(Column(tb, "OffSetX_temp") << GetAsMatrix()),
(Column(tb, "OffSetY_temp") << GetAsMatrix())
);
Transparency(0.5);
Fill Color("Red");
Polygon(
(Column(tb, "X") << GetAsMatrix()),
(Column(tb, "Y") << GetAsMatrix())
);
)}
)
)
);
)
);
sb << Set Function(
Function({thisBox},
((((thisBox) << sib) << child) << sib) << Set Text(Char(thisBox << Get))
)
);Hopefully, I could get some help
Appreciates
