Graph Builder - two variables on one axis, but different graph types?

I want these two graphs on the same axis. Two different columns, two different errors.

I want the formula column to be a connected line and use the standard error as a band

I want the density columns to be a mean with std dev error bars

I want them together on the same plot, Is it possible?




1 ACCEPTED SOLUTION

Accepted Solutions
jthi
Super User

Re: Graph Builder - two variables on one axis, but different graph types?

You should be able to do it this way:

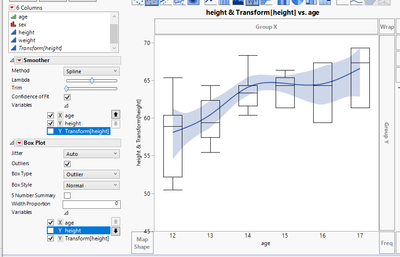

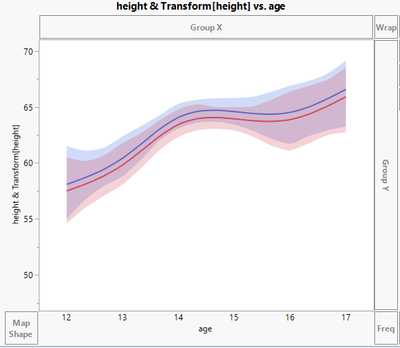

1. First add both columns to same section of Y-axis (select them both at the same time and drag and drop to Y-axis and select the visualization you want.


2. Right click on graph and choose add to add the visualization you want (you can also shift click to select the visualization from the top of graph)





3. Then from the left of graph expand Variables menus and uncheck unnecessary columns




-Jarmo

View solution in original post

2 REPLIES 2
jthi
Super User

Re: Graph Builder - two variables on one axis, but different graph types?

You should be able to do it this way:

1. First add both columns to same section of Y-axis (select them both at the same time and drag and drop to Y-axis and select the visualization you want.


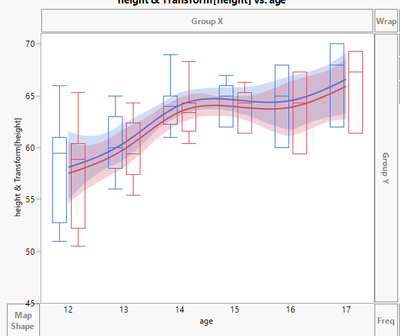

2. Right click on graph and choose add to add the visualization you want (you can also shift click to select the visualization from the top of graph)





3. Then from the left of graph expand Variables menus and uncheck unnecessary columns




-Jarmo
Shannon
Level III

Re: Graph Builder - two variables on one axis, but different graph types?

 Thank you, I just watched a JMP Video on graph builder that showed the variable menu. I have never used that before. Thanks!
