Graph Builder. Combine Smoother and Line - how?

[#1]

I have groups of measurement that I want to plot "together".

The individual measurement curves of a group should have the same color and be semi-transparent.
For each group there should be an additional smoother curve with the same color.

Is this possible in Jmp? - without "workarounds"?

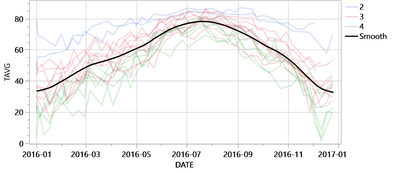

version 1:

• measurements of one groups have same color
• one curve per measurement
• transparency works
• 1 smoother line instead of 3
• the smoother curve doesn't have the "right" color [consequential error]

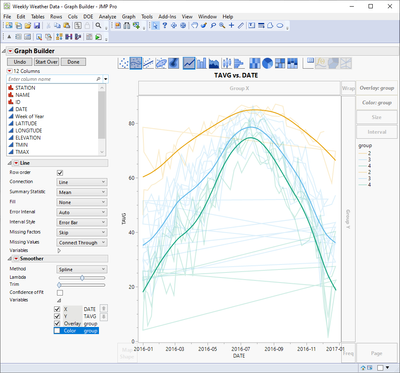

version 2:

• measurements of one groups have same color
• nasty jumps back for the individual curves
• transparency works
• each group has it's own smoother curve
• smoother curves have has the wrong color

dt =Open( "$SAMPLE_DATA/Functional Data/Weekly Weather Data.jmp" );
dt << New Column( "group",Character,"Nominal",Formula( Substr( :STATION, 8, 1 ) ));

//version 1
dt << Graph Builder(
	Variables(
		X( :DATE ),
		Y( :TAVG ),
		Overlay( :STATION ),
		Color( :group )
	),
	Elements(
		Line( X, Y, Legend( 31 ) ),
		Smoother( X, Y, Overlay( 0 ), Legend( 32 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				31,
				Properties( 0, {Transparency( 0.2 )}, Item ID( "2", 1 ) ),
				Properties( 1, {Transparency( 0.2 )}, Item ID( "3", 1 ) ),
				Properties( 2, {Transparency( 0.2 )}, Item ID( "4", 1 ) )
			)}
		)
	)

);


//version 2
dt << Graph Builder(
	Variables( X( :DATE ), Y( :TAVG ), Overlay( :group ), Color( :group ) ),
	Elements(
		Line( X, Y, Legend( 31 ), Row order( 1 ) ),
		Smoother( X, Y, Legend( 32 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				31,
				Properties( 0, {Transparency( 0.2 )}, Item ID( "2", 1 ) ),
				Properties( 1, {Transparency( 0.2 )}, Item ID( "3", 1 ) ),
				Properties( 2, {Transparency( 0.2 )}, Item ID( "4", 1 ) )
			)}
		)
	)
)

[#2]

Try removing group from color for smoother and to remove zigzag disable Row order

[#3]

Ah, the Color = "Group" is just too much. It can be removed completely.

concerning Zig-Zag:
I want to have separate curves per station, this is why I enabled row order.

Disabling the option leads to one combined curve for all stations of a group.

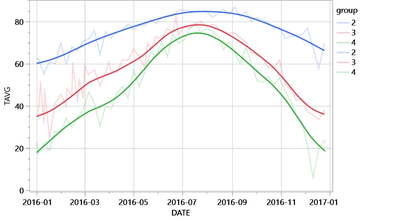

version 2 (b):

• measurements of one group have same color
• nasty jumps back for the individual curves (fixed by removing row order)
  unfortunately not anymore: one curve per station
• transparency works
• each group has it's own smoother curve
• smoother curves with matching color

[#4]

I hope somebody finds a way to get this graph created in Jmp (17)  - without adding new rows and columns to the graph.

Overlay by multiple column will solve the problem. If Overlay accepts more than one column, the user can select different Overlays for the two plot types:

1. Overlay for the smoother element:
   :group-> one fit curve per group


2. Overlay for the line element:
   :Station -> separate traces per station =  no zig-zag lines

Besides enhancing the Overlay functionality , here is another wishGraph Builder: Line - possibility to add breaks which uses a simple trick to add the breaks:
The idea: a measurement trace runs from left to right.
Each step from right to left marks the start of a new trace -> add a break.

[#5 · Accepted solution]

TillGraph Builder - Overlay by multiple columns  or Graph Builder: Line - possibility to add breaks   becomes available,

you can use this workaround:

add dummy rows with missing x / y value and select no connection for missing values.

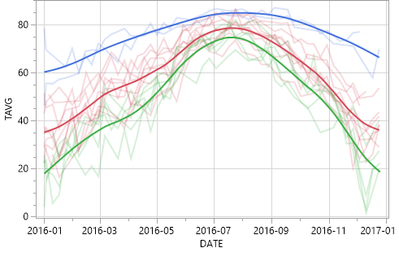

version 3:

• same group = same color
• no nasty zig-zag curves
• transparency works
• each group has it's own smoother curve
• smoother curves with matching color

• new rows added to the data table

dt =Open( "$SAMPLE_DATA/Functional Data/Weekly Weather Data.jmp" );
dt << New Column( "group",Character,"Nominal",Formula( Substr( :STATION, 8, 1 ) ));

//version 3
stations = dt << Summary(Group( :STATION, :NAME ));
For EACH({station}, stations[0,0], dt << add row({:STATION=station[1],:NAME=station[2]}));
dt << sort( BY(:NAME, :DATE ), Replace Table);

dt << Graph Builder(
	Variables( X( :DATE ), Y( :TAVG ), Overlay( :group ) ),
	Elements(
		Line( X, Y, Legend( 1 ), Row order( 1 ), Missing Values( "No Connection" ) ),
		Smoother( X, Y, Legend( 2 ) )
	),
	SendToReport(
		Dispatch(
			{},
			"400",
			ScaleBox,
			{Legend Model(
				1,
				Properties( 0, {Transparency( 0.3 )}, Item ID( "2", 1 ) ),
				Properties( 1, {Transparency( 0.3 )}, Item ID( "3", 1 ) ),
				Properties( 2, {Transparency( 0.3 )}, Item ID( "4", 1 ) )
			), Legend Model(
				2,
				Base( 0, 0, 0, Item ID( "2", 1 ) ),
				Base( 1, 0, 0, Item ID( "3", 1 ) ),
				Base( 2, 0, 0, Item ID( "4", 1 ) )
			)}
		)
	)
)

#1000

[#6]

@XanGregg , will Overlay Encoding facilitate the creation of such plots (different color and individual fit curves for different variants - but more than one measurement curve per variant).

[#7]

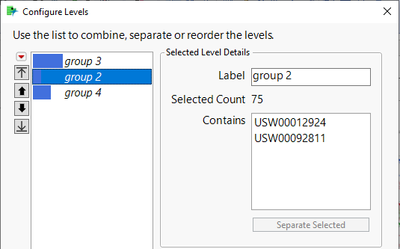

And Configure Levels?
no: again the zig-zag lines.

View more...

dt =Open( "$SAMPLE_DATA/Functional Data/Weekly Weather Data.jmp" );
Graph Builder(
	Transform Column(
		"STATION'",
		Character,
		Set Property( "Configure Levels", 1 ),
		Formula(
			Map Value(
				:STATION,
				{"USW00092811", "USW00012924", "USW00014922", "USW00014751",
				"USW00024024", "USW00014751", "USW00024144", "USW00014751",
				"USW00094626", "USW00014751", "USW00003868", "USW00003195",
				"USW00003949", "USW00003195", "USW00013733", "USW00003195",
				"USW00013877", "USW00003195", "USW00053182", "USW00003195",
				"USW00093067", "USW00003195", "USW00093242", "USW00003195",
				"USW00093718", "USW00003195"},
				Unmatched( :STATION )
			)
		)
	),
	Variables( X( :DATE ), Y( :TAVG ), Overlay( :STATION' ) ),
	Elements(
		Line( X, Y, Legend( 1 ), Row order( 1 ), Missing Values( "No Connection" ) ),
		Smoother( X, Y, Legend( 2 ) )
	)
)

[#8]

If you generate such plots regularly, please have a look at QuickSelect Toolbar .
There is a Shortcut Icon to create the dummy rows automatically and to sort the table to put the dummy rows in the right position.

[#9]

We are just beta testing a "remote control" AddIn for Graph Builder which will facilitate the manual formatting of the plots.
I added a button to remove the zig-zag lines : )

compared to "add dummy rows" it has the benefit that it doesn't collided with Sort data table + add rows + concatenate -- make it possible

GraphBuilder_RemoteControl.mp4

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 0:49

Loaded: 0.00%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -0:49

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

[#10]

 a formalism like "curve ID column" in Fit curve to split the data into individual curves - but still to bundle similar curves based on another column.

Fit Curve has this feature - Graph Builder could benefit from the feature as well.
