Custom Map

Hi, I've created this custom map but I cannot get the original plant drawing to overlay with the digitized image in the Graph Builder? Can anyone help? Thanks!!

0 Kudos
1 ACCEPTED SOLUTION

Accepted Solutions
txnelson
Super User

Re: Custom Map

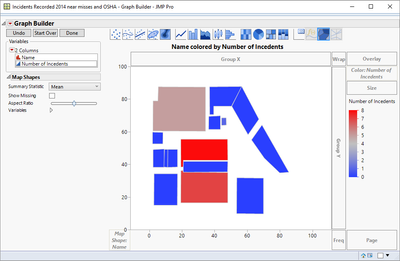

The issue is that the column name in the data table needs to be the same as the column name in the -name shape table.  You had specified "Name" in the -Name shape jmp table, but in the data table you called the column "Department".  I changed the column name to "Name" and brought up Graph Builder, and produced the following output:


Also, make sure you save the -XY and - Name data tables to the correct folders:

JMP looks for these files in two locations. One location is shared by all users on a machine.

This location is:

• Windows: C:/Program Files/SAS/JMP/12/Maps/

• Macintosh: /Library/Application Support/JMP/12/Maps

The other location is specific for an individual user:

• On Windows: C:/Users/<user name>/AppData/Roaming/SAS/JMP/Maps

• On Macintosh: /Users/<user name>/Library/Application Support/JMP/Maps

Jim
2 REPLIES 2
txnelson
Super User

Re: Custom Map

The issue is that the column name in the data table needs to be the same as the column name in the -name shape table.  You had specified "Name" in the -Name shape jmp table, but in the data table you called the column "Department".  I changed the column name to "Name" and brought up Graph Builder, and produced the following output:


Also, make sure you save the -XY and - Name data tables to the correct folders:

JMP looks for these files in two locations. One location is shared by all users on a machine.

This location is:

• Windows: C:/Program Files/SAS/JMP/12/Maps/

• Macintosh: /Library/Application Support/JMP/12/Maps

The other location is specific for an individual user:

• On Windows: C:/Users/<user name>/AppData/Roaming/SAS/JMP/Maps

• On Macintosh: /Users/<user name>/Library/Application Support/JMP/Maps

Jim
tcarrillo12
Community Trekker

Re: Custom Map

Ho wow! Thank you very much. Now it worked for me. The only thing is that I cannot the original image to overlay with above. I noticed that on JMP help the author was able to overlay the floor plan drawing or image with the traced temperature.

0 Kudos
