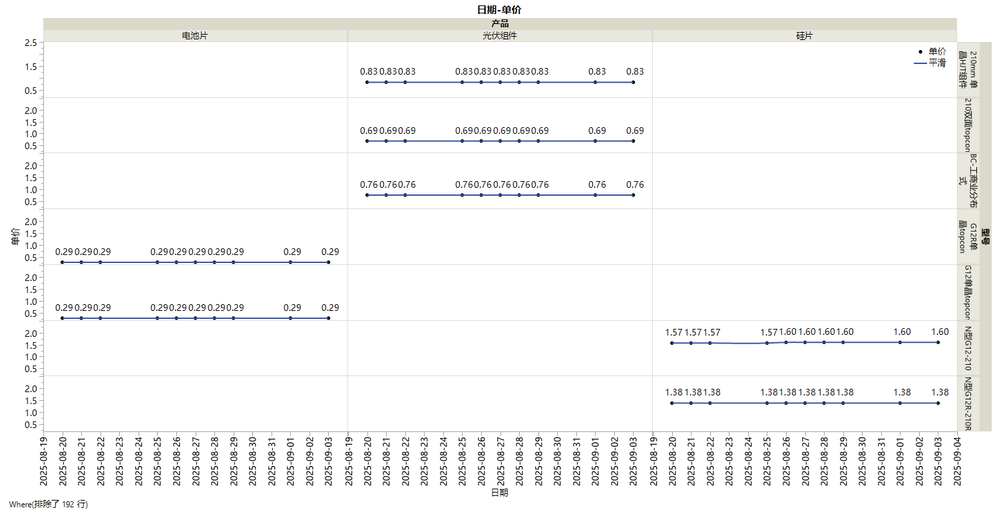

如何统一设置标签位置在数据点上方或下方

1 ACCEPTED SOLUTION

Accepted Solutions

Re: 如何统一设置标签位置在数据点上方或下方

Solved, thanks!




dt3 = Data Table("光伏供应链价格汇总");

obj1 = dt3 << Graph Builder(
	Size(1476, 745),
	Show Control Panel(0),
	Legend Position("Inside Right"),
	Fit to Window("Off"),
	Variables(X(:日期), Y(:单价), Group X(:产品), Group Y(:型号)),
	Elements(
		Points(X, Y, Legend(5), Label("Label by Value"), Label Format("Fixed Dec", 7, 2)),
		Smoother(X, Y, Legend(6))
	),
	SendToReport(
		Dispatch({}, "日期", ScaleBox,
			{Min(min_date - 86400), Max(max_date + 86400), Interval("Day"), Inc(1),
			Minor Ticks(0), Label Row(
				{Label Orientation("Vertical"), Show Major Grid(0), Show Minor Grid(0)}
			)}
		),
		Dispatch({}, "单价", ScaleBox,
			{Min(0.2), Max(2.5), Inc(0.5), Minor Ticks(1),
			Label Row({Show Major Grid(0), Show Minor Grid(0)})}
		)
	)
);
Wait(1);
excluded_rows = dt3 << Get Excluded Rows;   //获取排除行矩阵
mm = N Row(excluded_rows);                 //获取排除行数
nn = (N Row(dt3) - mm) / 7;
report = obj1 << Report;
indices = {4, 5, 8, 9, 10, 20, 21};
For(idx = 1, idx <= N Items(indices), idx++,
	i = indices[idx];
	frame = report[FrameBox(i)];
	For(j = 0, j <= nn, j++,
		seg = frame << Find Seg(Marker Seg(1));
		seg << Label Offset({j, -10, -10});
	);
);
Edit (jthi): Added JSL formatting

View solution in original post

6 REPLIES 6
hogi
Level XII

Re: 如何统一设置标签位置在数据点上方或下方

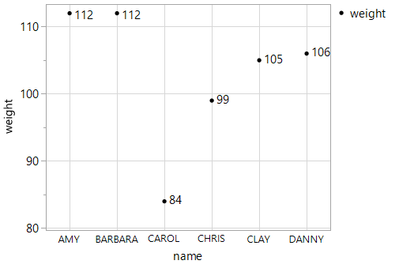

Dummy graph to play with:




Names Default to Here(1);
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
Data Table( "Big Class" ) << Select All Rows << Label;
:weight << Label( 1 );
:name << Label( 0 );


Graph Builder(
	Size( 437, 428 ),
	Summary Statistic( "Median" ),
	Graph Spacing( 4 ),
	Variables( X( :name ), Y( :weight ) ),
	Elements( Points( X, Y, Legend( 4 ) ) ),
	Local Data Filter(
		Add Filter(
			columns( :name ),
			Where( :name == {"AMY", "BARBARA", "CAROL", "CHRIS", "CLAY", "DANNY"} ),
			Display( :name, N Items( 15 ), Find( Set Text( "" ) ) )
		)
	)
);



hogi
Level XII

Re: 如何统一设置标签位置在数据点上方或下方

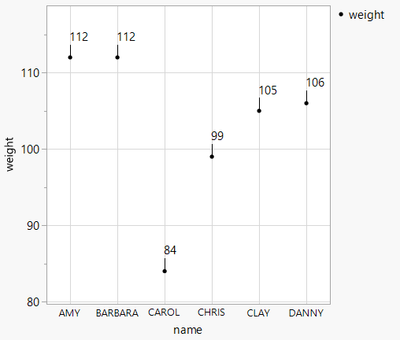

One approach is via JSL - just add the offsets "manually" for all the labels - via a list:








// create a list of identical offsets
labels = As list(Index(0,10))[1]; // surprise: the fist index is 0!
offset Expr = Expr(Label Offset());
offsets= For Each ({label}, labels, Insert Into(offset Expr,Eval List({label,0.,-20}))); // vertical offset: -20

// send the command to the Point plot
mySeg = current report()[FrameBox(1)] << find seg(MarkerSeg);
Eval (Eval Expr(mySeg <<  Expr(Name expr(offset  Expr) )))



jthi
Super User

Re: 如何统一设置标签位置在数据点上方或下方

I'm not sure if you can easily adjust label offsets without scripting.



Below is very quick example how it might be possible to do it with JSL

Names Default To Here(1);

dt = open("$SAMPLE_DATA/Big Class.jmp");

gb = dt << Graph Builder(
	Size(525, 512),
	Show Control Panel(0),
	Variables(X(:age), Y(:height)),
	Elements(
		Points(X, Y, Legend(3), Summary Statistic("Mean"), Label("Label by Value"))
	)
);

frame = Report(gb)[FrameBox(1)];
seg = (frame << FindSeg(Marker Seg(1)));
For(i = 0, i <= N Items(seg << get markers), i++,
	Eval(EvalExpr(
		seg << Label Offset(Expr(Eval List({i, -5, -5})));
	));
);
-Jarmo

Re: 如何统一设置标签位置在数据点上方或下方

Solved, thanks!




dt3 = Data Table("光伏供应链价格汇总");

obj1 = dt3 << Graph Builder(
	Size(1476, 745),
	Show Control Panel(0),
	Legend Position("Inside Right"),
	Fit to Window("Off"),
	Variables(X(:日期), Y(:单价), Group X(:产品), Group Y(:型号)),
	Elements(
		Points(X, Y, Legend(5), Label("Label by Value"), Label Format("Fixed Dec", 7, 2)),
		Smoother(X, Y, Legend(6))
	),
	SendToReport(
		Dispatch({}, "日期", ScaleBox,
			{Min(min_date - 86400), Max(max_date + 86400), Interval("Day"), Inc(1),
			Minor Ticks(0), Label Row(
				{Label Orientation("Vertical"), Show Major Grid(0), Show Minor Grid(0)}
			)}
		),
		Dispatch({}, "单价", ScaleBox,
			{Min(0.2), Max(2.5), Inc(0.5), Minor Ticks(1),
			Label Row({Show Major Grid(0), Show Minor Grid(0)})}
		)
	)
);
Wait(1);
excluded_rows = dt3 << Get Excluded Rows;   //获取排除行矩阵
mm = N Row(excluded_rows);                 //获取排除行数
nn = (N Row(dt3) - mm) / 7;
report = obj1 << Report;
indices = {4, 5, 8, 9, 10, 20, 21};
For(idx = 1, idx <= N Items(indices), idx++,
	i = indices[idx];
	frame = report[FrameBox(i)];
	For(j = 0, j <= nn, j++,
		seg = frame << Find Seg(Marker Seg(1));
		seg << Label Offset({j, -10, -10});
	);
);
Edit (jthi): Added JSL formatting
hogi
Level XII

Re: 如何统一设置标签位置在数据点上方或下方

As an alternative, you can use a more automated approach (e.g. if you don't want to type in he framebox indices manually or you use Overlay and there are more Segs):

  • find al lframeboxes
  • for each framebox, find all segs
  • for each seg, find all markers
  • apply the offset

Names Default to Here(1);
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
Data Table( "Big Class" ) << Select All Rows << Label;
:weight << Label( 1 );
:name << Label( 0 );

gb = dt << Graph Builder(
	Size( 437, 413 ),
	Summary Statistic( "Median" ),
	Graph Spacing( 4 ),
	Variables( X( :height ), Y( :weight ), Wrap( :age ), Overlay( :sex ) ),
	Elements( Points( X, Y ), Smoother( X, Y, Legend( 2 ) ) )
);

fbs = Current Report() << xpath( "//FrameBox" );

For Each( {frame}, fbs,

	segs = (frame << FindSegs);
	For Each( {seg}, segs,
		Try( // skip non-Marker-segs
			markers = seg << get markers;
			For Each( {x, i}, markers,
				seg << Label Offset( {i-1, -10, -10} )
			);
		);
	);
);
hogi
Level XII

Re: 如何统一设置标签位置在数据点上方或下方

Note to myself:
Cool, no expression handling is needed to get the correct "i-1" in

seg << Label Offset( {i-1, -10, -10} )


The seg receives the message - sees "i" and looks it up: Eval(i) -
Similar to the column name in new column(column name)



On the other hand, expression handling is needed for

Eval (Eval Expr(mySeg <<  Expr(Name expr(offset  Expr) )))



With

mySeg <<  offset Expr

one gets the error message:




The Seg just checks the list of accepted messages and offset Expr is not listed.
Name Expr(offset Expr) is not checked

- and Eval(offset Expr) (like for i inside the message) wouldn't make sense.
