How Do You Draw a Circle?

Interview

A long time ago I interviewed a lot of candidates for a lot of graphics programming positions. Being a good interviewer is hard work; my early attempts were not great. Over time I came up with this question to get a conversation started.



Me: What do you do if a co-worker comes to you and says "I need to draw a circle?"

  • Candidate 0: I don't know.
  • Candidate 1: I don't know. A compass?
  • Candidate 2: Hmmmm. I'd print a small letter "o".
  • Candidate 3: Square root should do it.
  • Candidate 4: Sines and Cosines should do it.
  • Candidate 5: Bresenham's circle drawing algorithm should do it.
  • Candidate 6: I'd tell them to look for a library function, show them where the documentation lives. Better to re-use than invent.
  • Candidate 7: I'd say "I don't know. Why do you want to draw a circle?" because maybe they don't really need to draw one. Maybe they need to know what is inside the circle using square root. Maybe they need an ellipse. Once we decide a drawn circle is really needed, where is it being drawn? Will it be filled, solid or with a pattern? Chances are, there is already a function to do this, and well debugged by now. You probably don't need to write it yourself, but if you do, use sines and cosines, and make the step size a function of the radius. How fast does it need to be? Depending on the device, Bresenham might be appropriate. On a printer, a small letter "o" might work for a marker and be good enough.



Discussion

Candidates 0,1,2,3,4,5 all missed the forest. If you are the interviewer, be sure to help them see the other person in the question, because that's half of the question. And if you are the candidate, watch out for two part questions.

If you are the interviewee, never stop where candidate 0 did. Candidates 1 and 2 provide just enough of a hook for the interviewer to ask another question. If you are the interviewer, remember the candidate is in a stressful situation and needs a bit of help unlocking more details.

Candidates 3, 4, and 5 each suggest a technical solution, any of which might work, none of which are always best. If you are the candidate, keep talking about your answer. If you are the interviewer, coach them: "will that be (fast, safe, correct, etc)?"

Candidates 6 and 7 fall at different places on the pragmatic scale. More questions and discussion are needed to determine a best fit.



Answers
The interview question isn't really very much about drawing a circle, but if that's why you are still reading, here's JSL for answers 2,3,4,5,6.



Small letter o, three ways

New Window( "Candidate 2, literal",
    Graph Box(
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        Text( Center Justified, {50, 50}, "o" ) // "o" sits above the point
    )
);

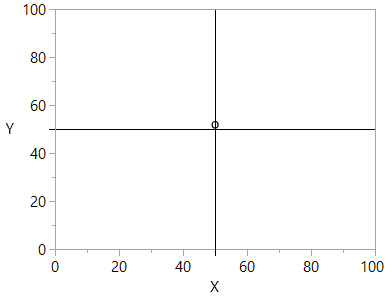

Text sits above the baseline.Text sits above the baseline.

New Window( "Candidate 2, modified",
    Graph Box(
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        markersize(10),
        marker( markerstate("O"), {50, 50}) // capital "O" is somewhat centered
    )
);

Using a marker with a capital O.Using a marker with a capital O.

New Window( "Candidate 2, reinvented",
    Graph Box(
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        Marker Size( 100 ),
        Marker( Marker State( 8 ), {50, 50} ) // bigger is thicker
    )
);

If you can use a marker, then you can pick the circle symbol.If you can use a marker, then you can pick the circle symbol.

Square root, two ways

New Window( "Candidate 3, sqrt hard way",
    Graph Box(
        framesize( 300, 300 ),
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        // draw a circle at 50,50 with radius 30 using sqrt
        // a lot of code, and not too pretty on the left and right
        step=3; // to make the problem more obvious, use 1 to almost hide it
        For( x = 0, x < 30, x += step,
            // hyp = sqrt(x^2 + y^2)
            // hyp^2 = x^2 + y^2
            // hyp^2 - x^2 = y^2
            y1 = Sqrt( 30 ^ 2 - x ^ 2 );
            y2 = Sqrt( 30 ^ 2 - (x + step) ^ 2 );
        	// do all four quadrants in parallel
            Line( {50 + x, 50 + y1}, {50 + (x + step), 50 + y2} );
            Line( {50 - x, 50 + y1}, {50 - (x + step), 50 + y2} );
            Line( {50 - x, 50 - y1}, {50 - (x + step), 50 - y2} );
            Line( {50 + x, 50 - y1}, {50 + (x + step), 50 - y2} );
        )
    )
);

The sqrt approach looks rough on the left and right because of the equal-sized steps in x.The sqrt approach looks rough on the left and right because of the equal-sized steps in x.

New Window( "Candidate 3, sqrt with YFunction",
    Graph Box(
        framesize( 300, 300 ),
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        // draw a circle at 50,50 with radius 30 using sqrt
        // sqrt has two answers. Looks nice, thanks YFunction. Only a small gap.
        Y Function( 50 + Sqrt( 30 ^ 2 - (x - 50) ^ 2 ), x );// top
        Y Function( 50 - Sqrt( 30 ^ 2 - (x - 50) ^ 2 ), x );// bottom
    )
);

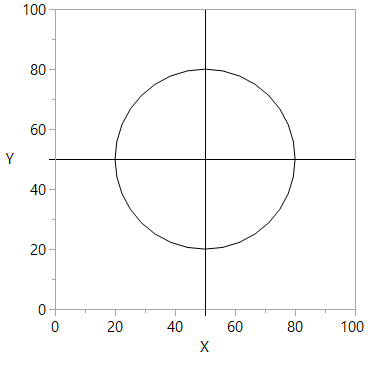

The Y Function adjusts the x step size automatically.The Y Function adjusts the x step size automatically.

Sines and Cosines

New Window( "Candidate 4, sin/cos with XYFunction",
    Graph Box(
        framesize( 300, 300 ),
        xaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 50, "Solid", "Black", "", 1 ) ),
        // draw a circle at 50,50 with radius 30 using sin/cos
        XY Function( 50 + 30 * Cos( t ), 50 + 30 * Sin( t ), t, Min( 0 ), Max( 2 * Pi() ) )
    )
);

I really like the XYFunction for this parametric description of a circle.I really like the XYFunction for this parametric description of a circle.

Bresenham

//Bresenham.
// using pixel functions (There is no reason I can think of to
// use this code; everything else will be faster! A long time
// ago there was no floating point arithmetic or sin/cos/sqrt
// and tricks like this were useful.)

drawCircle = Function( {xc, yc, x, y}, // not really pixels. this is not a good match for JMP!
    Marker( Marker State( 0 ), {xc + x, yc + y} ); // invented for primitive hardware without
    Marker( Marker State( 0 ), {xc - x, yc + y} ); // floating point.
    Marker( Marker State( 0 ), {xc + x, yc - y} );
    Marker( Marker State( 0 ), {xc - x, yc - y} );
    Marker( Marker State( 0 ), {xc + y, yc + x} );
    Marker( Marker State( 0 ), {xc - y, yc + x} );
    Marker( Marker State( 0 ), {xc + y, yc - x} );
    Marker( Marker State( 0 ), {xc - y, yc - x} );
);

circleBres = Function( {xc, yc, r}, // https://www.geeksforgeeks.org/bresenhams-circle-drawing-algorithm/
    x = 0;
    y = r;
    d = 3 - 2 * r;
    drawCircle( xc, yc, x, y );
    While( y >= x,
        x++;
        If( d > 0,
            y--;
            d = d + 4 * (x - y) + 10;
        ,
            d = d + 4 * x + 6
        );
        drawCircle( xc, yc, x, y );
    );
);

New Window( "Candidate 5, really hard way using pixels",
    Graph Box(
        framesize( 900, 900 ),xscale(0,1000),yscale(0,1000),
        xaxis( Add Ref Line( 500, "Solid", "Black", "", 1 ) ),
        yaxis( Add Ref Line( 500, "Solid", "Black", "", 1 ) ),
        // draw a circle at 500,500 with radius 300
        circleBres( 500, 500, 300 ),
        text({300,700},"Zoom in for detail")
    )
);

The point of the Bresenham circle drawing algorithm is to only use integers and avoid multiply and divide ( *2 and *4 can be shift operations.)The point of the Bresenham circle drawing algorithm is to only use integers and avoid multiply and divide ( *2 and *4 can be shift operations.)

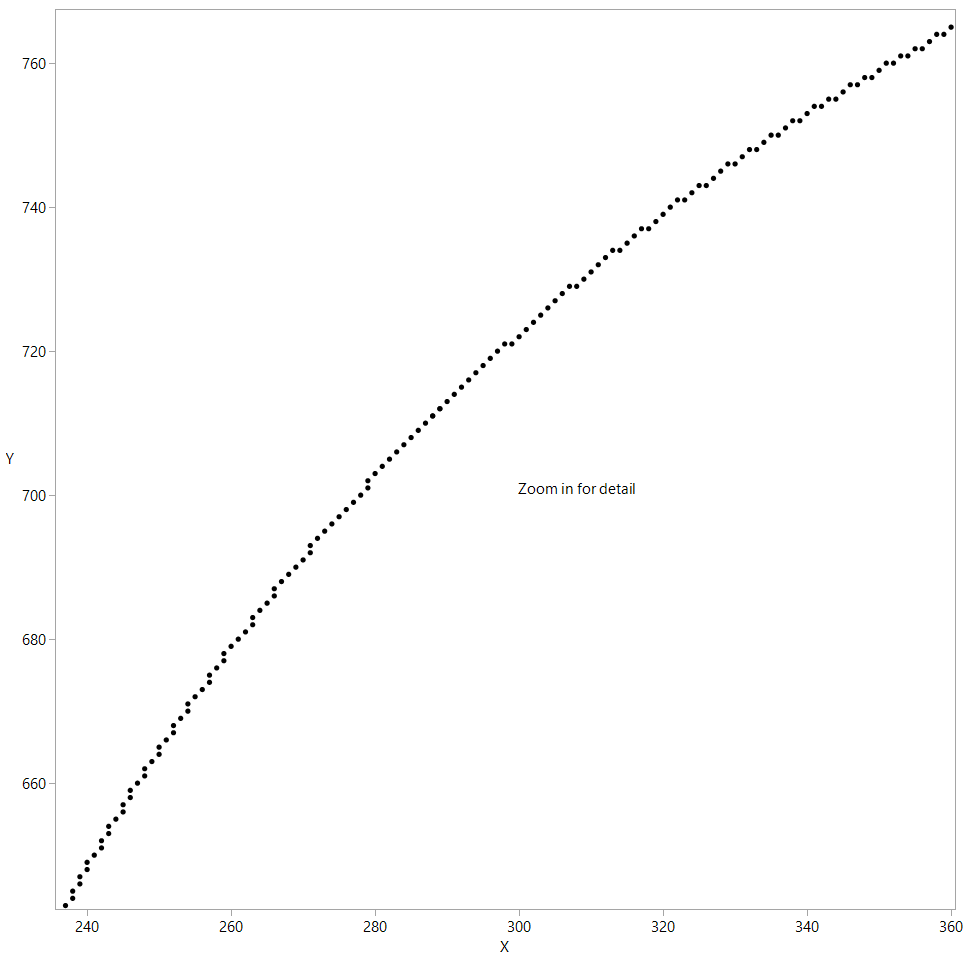

Zoomed in the pixels always step in either x or y or both.Zoomed in the pixels always step in either x or y or both.

Library Functions

New Window( "Candidate 6, Circle Function",
    Graph Box(
        xaxis( Show Major Grid( 1 ) ),
        yaxis( Show Major Grid( 1 ) ),
        Circle( {50, 50}, 30 )
    )
);

The Circle Function uses the Y dimension and makes a visibly round circle. Because the axes are not isometric, something seems odd.The Circle Function uses the Y dimension and makes a visibly round circle. Because the axes are not isometric, something seems odd.

New Window( "Candidate 6, Circle on square paper",
    Graph Box( framesize(400,400),
        xaxis( Show Major Grid( 1 ) ),
        yaxis( Show Major Grid( 1 ) ),
        Circle( {50, 50}, 30 )
    )
);

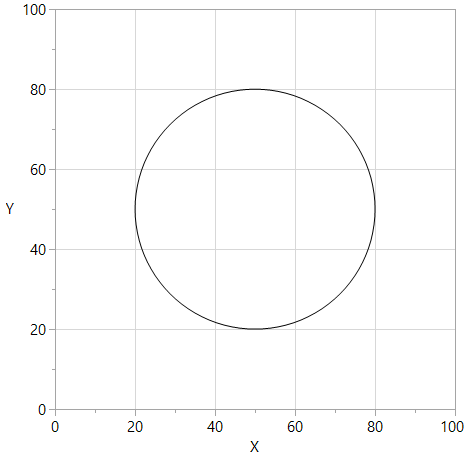

The graph's popup menu, Size/Scale->SizeToIsometric will automatically make this adjustment.The graph's popup menu, Size/Scale->SizeToIsometric will automatically make this adjustment.

You might prefer the oval function:

New Window( "Candidate 6, Oval function",
    Graph Box( // framesize(600,400),
        x=50;
        y=50;
        r=30;
        Oval( x-r, y-r, x+r, y+r );
    )
);

The Oval function has a clear API for the vertical and horizontal dimensions.The Oval function has a clear API for the vertical and horizontal dimensions.

Hydraulics

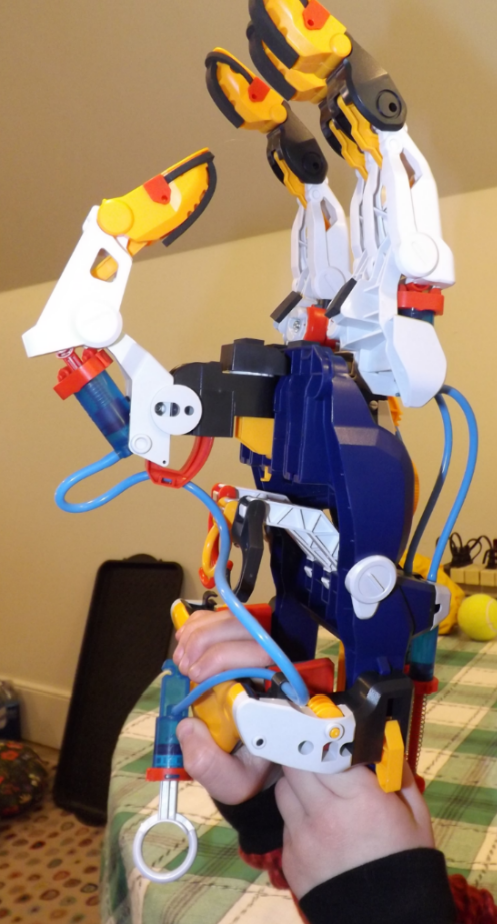

I traced a DVD; the cyborg hand is really teaching about hydraulics and levers and putting pieces together.I traced a DVD; the cyborg hand is really teaching about hydraulics and levers and putting pieces together.

I spent January and February helping a five year old assemble this Mega Cyborg Hand. I'd recommend seven as a reasonable minimum age (as does the box); we did 10 to 15 minute sessions every other day or so. It is an amazing value for about $30. Best part: walking home the other day, the 5yo spots an excavator and tells me about the hydraulic cylinders.

Huge! Actually too big for a five year old.Huge! Actually too big for a five year old.
