This guide describes how to use formulas to create new variables (e.g, transformations, functions of existing
variables, perform logic operations, create patterned and random data, among others).
Method 1 (Create Formula With Formula Editor)
- From an open JMP data table, select Cols > New Column.
- Under Column Name, assign a name for the column. In this example, we name the column %profit/sales.
- Click Column Properties, and select Formula. This takes you to the JMP Formula Editor (shown at right).
- To create this formula, we take the ratio and multiply by 100.
- Select Profits ($M) from the Columns list.
- Click on the divide by symbol on the keypad.
- Select on Sales ($) from the Columns list.
- Click on the outer gray box (surrounding the ratio).
- Click on the multiply symbol on the keypad.
- Type “100” on your keyboard, and click OK. This populates the data table column with the calculated % Profit ($M)/Sales ($M) for each observation.
Method 2 (Create New Formula Columns from an Existing Column(s))

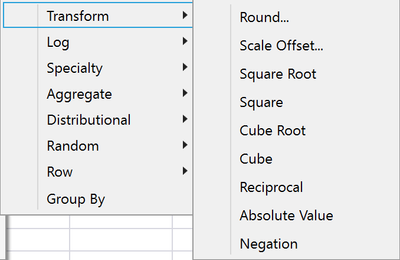

1. From an open JMP data table, right-click on a column and choose New Formula Column. Choose from a list of functions. The new column along with the formula will be saved to the data table.
Note: If multiple columns are highlighted, a set of Aggregate formulas will be made available (e.g, mean, sum).
Method 3 (Temporary Columns)
- From a launch window (e.g., Fit Y by X), right-click on a column inthe columns list. Choose desired formula. This temporary column (available just within that current platform) can be used.

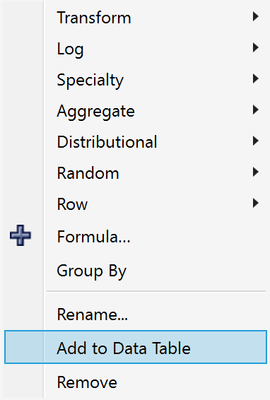

Note: To save that temporary column to the data table, right-click on the temporary column that was created and select Add to Data Table. This adds a new column and creates the formula, which is accessible through the Formula Editor.
Note: To access the Formula Editor for any formula column, right-click on the column name and select Formula.
Visit Using JMP > Create Formulas in JMP in JMP Help to learn more.
