Interactive Binning - New in JMP 16

[#1]

In this video, see how to create a new categorical variable from a continuous variable.  The capabilities are available on Mac and Windows.  View the demo for the operating system of your choice.

Windows Demo:

Interactive Binning (Win)

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 10:08

Loaded: 0.00%

00:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -10:08

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

Mac Demo:

Interactive Binning

Video Player is loading.

Play Video

Play

Mute

Current Time 0:00

/

Duration 7:45

Loaded: 0.00%

0:00

Stream Type LIVE

Seek to live, currently behind liveLIVE

Remaining Time -7:45

1x

Playback Rate

Chapters

• Chapters

Descriptions

• descriptions off, selected

Captions

• captions settings, opens captions settings dialog
• captions off, selected

Audio Track

• en (Main), selected

Picture-in-PictureFullscreen

This is a modal window.

Beginning of dialog window. Escape will cancel and close the window.

Text

ColorWhiteBlackRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-Transparent

Background

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyOpaqueSemi-TransparentTransparent

Window

ColorBlackWhiteRedGreenBlueYellowMagentaCyanTransparencyTransparentSemi-TransparentOpaque

Font Size

50%75%100%125%150%175%200%300%400%

Text Edge Style

NoneRaisedDepressedUniformDropshadow

Font Family

Proportional Sans-SerifMonospace Sans-SerifProportional SerifMonospace SerifCasualScriptSmall Caps

Reset restore all settings to the default valuesDone

Close Modal Dialog

End of dialog window.

Close Modal Dialog

This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.

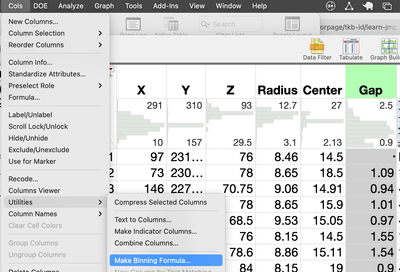

Use the Cols menu, after selecting a column, to launch the Binning Interface.

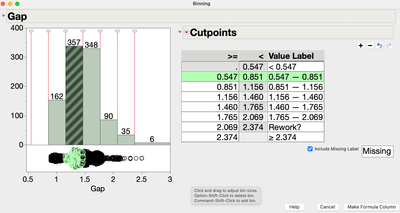

Interactive Binning lets us create and move cutpoints interactively, as well as several built in features to create bins based on the data.

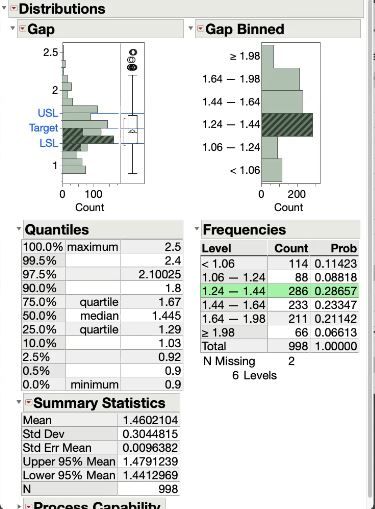

Binning data is useful to understand data, and to create new variables for additional graphing and analysis.

Interactively Create Categorical Bins to Summarize or Add Additional Information about Continuous Data

Some built in features include:

• Fill using Equal Width Bins - bins of a certain size
• Fill using Bin Count - how many bins do you want?
• Fill using Percentiles - JMP divides the range of the data by that quantile.
• Fill using Mean/StdDev - outpoints set by the mean and +/- 1st, 2nd, 3rd Standard Deviation (SD) from the mean.
• Fill using Jenks Natural Breaks - creates bin cutpoints so that the variance within each bin is minimized and the variance between the bins is maximized.

Bin Labels are highly customizable. There are built in options, as well as the ability to type the text you want as a label.
