Radiation pattern

Status: Archived Submitted by on ‎12-10-2020 05:03 AM
2 Comments (2 New)

I would Like to make Radiation pattern with JMP, but for now it is not possible. I guess it will be a good improvement for jmp software. I need a 3D spacial representation with an color map to see the strength of the power. I also need 2D 360 graph following the different direction of the power



Bellow some exemple, and what I am expected.

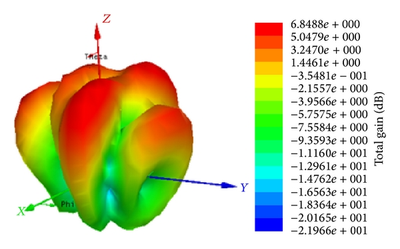

3D:

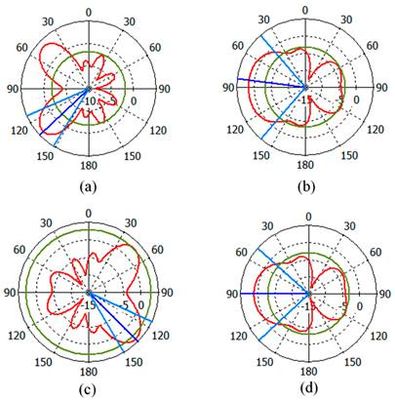

2D:


I hope this idea will be accepted.



Regards.



Antoine LEGOUT

antoine.legout@st.com



2 Comments
Craige_Hales
Super User
Super User
‎12-10-2020 12:47 PM
‎12-10-2020 12:47 PM

see 3D Plot and 2D cross-section for some ways to make these graphs.

Ryan_Gilmore
Community Manager Community Manager
Community Manager
‎10-26-2022 04:21 PM
‎10-26-2022 04:21 PM
Status changed to: Archived
We are archiving this request. If this is still important please comment with additional details and we will reopen. Thank you!
