Boxplot with points, showing the points in associated Box

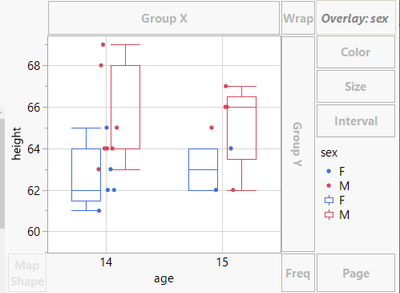

Currently in a Boxplot using JMP 16.1.0, if more than one result is plotted on y-axis, the boxes can be visulaized with an "offset" or "Align" (Box placement). This function is not given for "points".

I would like to have this functionality to get a better representation of my results and to avoid an intermediate step, e.g. by restacking.




8 Comments
ANS
Level II

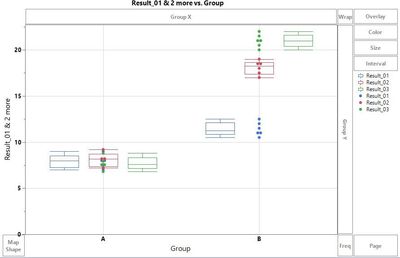

The problem is more visible in this example, see data from group "A":


hogi
Level XII

for comparison:

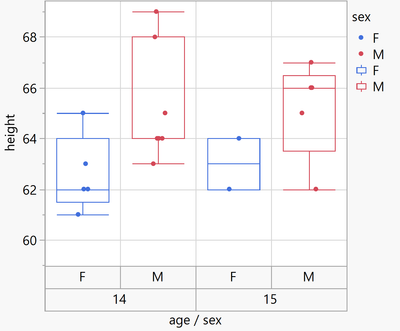

for a related issue, there is a workaround available:overlay -> use it again on the x axis.







Vball247
Level V

Still a bug in 18.1.1. Points do not line up with Boxplots or Contour Plots (violin in this example). Our users also would like the points to show in the boxplot. Why the offset?



Even with using the nested option for the x-axis, the points are offset for some of the boxplots.






Without nesting the points are just jittered around the center










hogi
Level XII

@Vball247 ,

- use it again on the x -axis.

then you don't need to spread the box plots another time.
-> deactivate via






Names Default to Here(1);
dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
Graph Builder(
	Size( 595, 397 ),
	Show Control Panel( 0 ),
	Summary Statistic( "Median" ),
	Graph Spacing( 4 ),
	Variables(
		X( :sex ),
		X( :age, Position( 1 ) ),
		Y( :height ),
		Overlay( :age )
	),
	Elements(
		Points( X( 1 ), X( 2 ), Y, Legend( 8 ) ),
		Box Plot( X( 1 ), X( 2 ), Y, Legend( 9 ), Box Placement( "Align" ) )
	)
);

maybe more convincing that it works:




hogi
Level XII

For the original problem, one has the options:

A) with align:






B) with Offset



Unfortunately, the workaround from above doesn't work.

 As an alternative, you can stack the data and use the workaround from above:






dt = Open( "$SAMPLE_DATA/Big Class.jmp" );
dt << Stack(
	columns( :height, :weight )
);
Graph Builder(
	Summary Statistic( "Median" ),
	Graph Spacing( 4 ),
	Variables(
		X( :age ),
		X( :Label, Position( 1 ) ),
		Y( :Data ),
		Overlay( :Label )
	),
	Elements(
		Points( X( 1 ), X( 2 ), Y, Legend( 11 ) ),
		Box Plot( X( 1 ), X( 2 ), Y, Legend( 12 ), Box Placement( "Align" ) )
	)
);


edit: to highlight the trick, I kept the height/weight information on the x axis.
in general a user will prefer to hide this info:



Françoise
Level V

Hi Hogi,

your solution is not ok for all cases.



capture 13: with box-plots on offset



capture 14: aligned.



see the graph on the right: you have 2 box-plots on top on each other with align.



best regardsCapture13.PNGCapture14.PNG

hogi
Level XII

the universal solution:

  1. use the split in addition on the x axis
  2. activate aligned box placement
  3. maybe: "stack" the data before plotting

did you apply step 3?
can you share a simple example based on a file from the samples directory.
I am sure that we will find a workaround that works for your data as well.

I also agree: it could be easier ...

Vball247
Level V

Thanks for the tip on the "align". That worked in our case. Had to do the align for both the boxplot and the contourplot.
