Add histogram next to the axes in the graph builder scatter plot

[mvanderaa1]

What inspired this wish list request?

In ggplot2 it's very easy to show the histogram above and to the right of the scatter plot. Currently JMP lacks this functionality.

There are a few work arounds but they are not intuitive, or lack functionality.

See post for more details

JMP community post

What is the improvement you would like to see?

Why is this idea important?

better visualization

[Valerie_Nedbal]

Thank you @mvanderaa1 to send this request. We will discuss this internally and come back to you.

[Valerie_Nedbal]

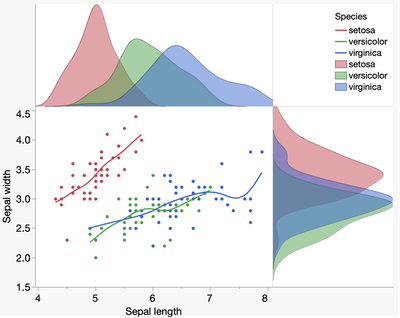

Hello @mvanderaa1 , after asking our development, we have already a solution in place with a little effort. Would that be good enough?

Open( "$SAMPLE_DATA/Iris.jmp" );

Graph Builder(
    Transform Column( "one", Nominal, Formula( 1 ) ),
    Size( 659, 525 ),
    Show Control Panel( 0 ),
    Legend Position( "Inside Right" ),
    Show Title( 0 ),
    Variables(
        X( :Sepal length ),
        X( :one ),
        Y( :one ),
        Y( :Sepal width ),
        Overlay( :Species )
    ),
    Relative Sizes( "X", [937 472] ),
    Relative Sizes( "Y", [210 370] ),
    Elements(
        Position( 1, 1 ),
        Histogram( X, Y, Legend( 6 ), Histogram Style( "Kernel Density" ) )
    ),
    Elements(
        Position( 1, 2 ),
        Points( X, Y, Legend( 1 ) ),
        Smoother( X, Y, Legend( 2 ) )
    ),
    Elements( Position( 2, 1 ) ),
    Elements(
        Position( 2, 2 ),
        Histogram( X, Y, Legend( 7 ), Histogram Style( "Kernel Density" ) )
    ),
    SendToReport(
        Dispatch( {}, {:one}, ScaleBox, {Label Row( Show Major Labels( 0 ) )} ),
        Dispatch( {}, {:one}, ScaleBox( 2 ), {Label Row( Show Major Labels( 0 ) )} ),
        Dispatch( {}, {:one, "Y title"}, TextEditBox, {Set Text( "" )} ),
        Dispatch( {}, {:one, "X title"}, TextEditBox, {Set Text( "" )} ),
        Dispatch( {}, "400", LegendBox,
            {Legend Position(
                {6, [3, 4, 5], 1, [-3, -3, -3], 2, [0, 1, 2], 7, [-3, -3, -3]}
            )}
        )
    )
);
